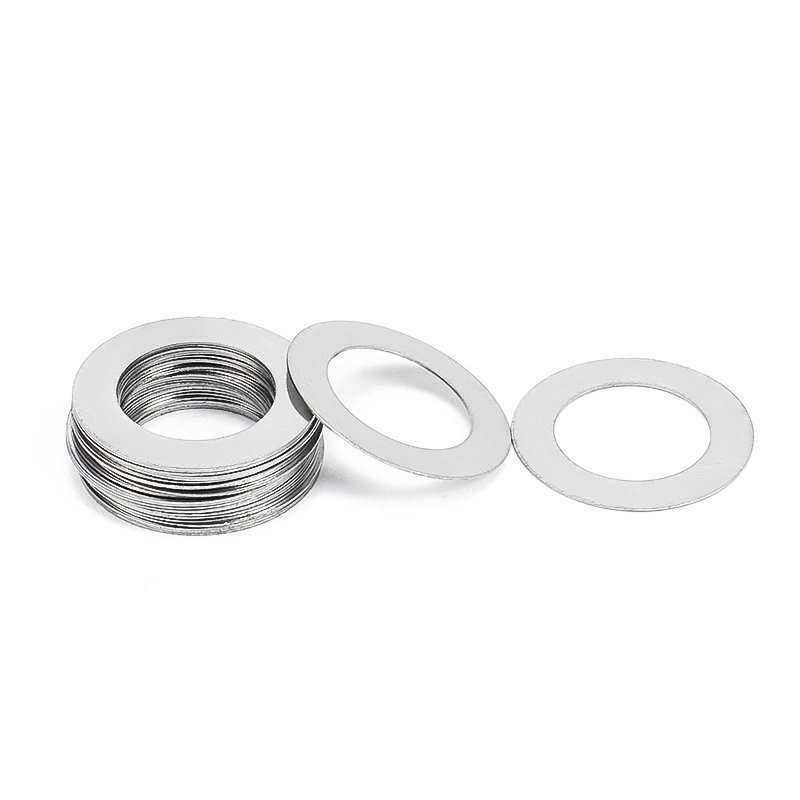

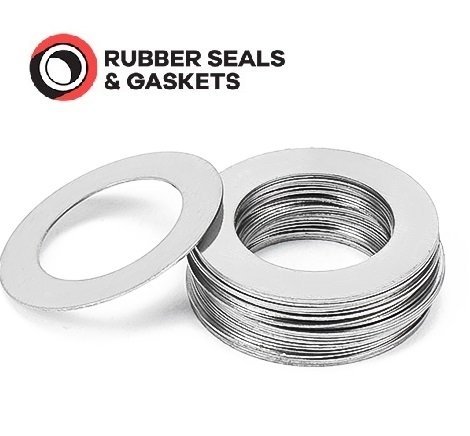

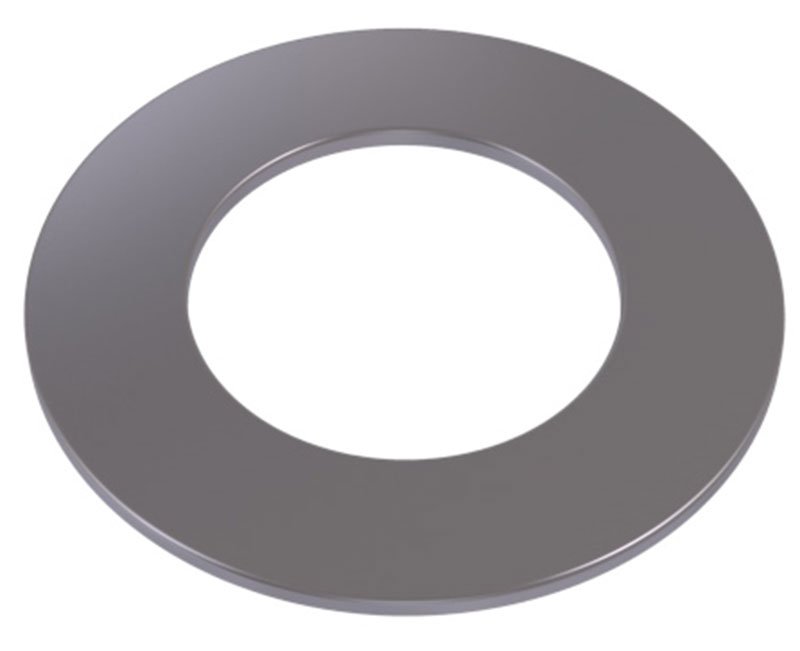

DIN 988/CSN 021702 SS304 SHIM RINGS/WASHERS/SPORTING RINGS THK=0.1MM;0.2MM;0.3MM;0.5MM

SKU N/A Categories ,

Please login to continue
Click here to login
Compare
Compare Now

Product Categories

Description

Precisely align, level, and adjust spacing on fasteners, shafts, and machinery with these shims.
For accurate leveling, choose materials such as steel or stainless steel, which are hard enough to resist scratching and deforming. Softer shims, like copper or aluminum, can be used as wear plates between components that rub together, preventing damage to equipment.
We are manufacturers of DIN 988 calibrated adjustment washers and here you can find all the measurements on the market, and if we do not have one, we will manufacture it to measure with the shape, material and measurements you need.

We can manufacture special sizes and shapes of washers from 3 mm to 900 mm in outside diameter since we have a laser cutter. If you have any questions about quantities or special measures, send us an email : sales@rubbersealsandgaskets.com



d1 (D12) d2 (d12)
Nominal size min. max. Nominal size min. max.
3 3.02 3.12 6 5.85 5.97
4 4.03 4.15 8 7.81 7.96
5 5.03 5.15 10 9.81 9.96
6 6.03 6.15 12 11.77 11.95
7 7.04 7.19 13 12.77 12.95
8 8.04 8.19 14 13.77 13.95
9 9.04 9.19 15 14.77 14.95
10 10.04 10.19 16 15.77 15.95
11 11.05 11.23 17 16.77 16.95
12 12.05 12.23 18 17.77 17.95
13 13.05 13.23 19 18.725 18.935
14 14.05 14.23 20 19.725 19.935
15 15.05 15.23 21 20.725 20.935
16 16.05 16.23 22 21.725 21.935
17 17.05 17.23 24 23.725 23.935
18 18.05 18.23 25 24.725 24.935
19 19.065 19.275 26 25.725 25.935
20 20.065 20.275 28 27.725 27.935
22 22.065 22.275 30 29.725 29.935
22 22.065 22.275 32 31.67 31.92
25 25.065 25.275 35 34.67 34.92
25 25.065 25.275 36 35.67 35.93
26 26.065 26.275 37 36.67 36.92
28 28.065 28.275 40 39.67 39.92
30 30.065 30.275 42 41.67 41.92
32 32.08 32.33 45 44.67 44.92
35 35.08 35.33 45 44.67 44.92
36 36.08 36.33 45 44.67 44.92
37 37.08 37.33 47 46.67 46.92
40 40.08 40.33 50 49.67 49.92
42 42.08 42.33 52 51.6 51.9
45 45.08 45.33 55 54.6 54.9
45 45.08 45.33 56 55.6 55.9
48 48.08 48.33 60 59.6 59.9
50 50.08 50.33 62 61.6 61.9
50 50.08 50.33 63 62.6 62.9
52 52.1 52.4 65 64.6 64.9
55 55.1 55.4 68 67.6 67.9
56 56.1 56.4 70 69.6 69.9
56 56.1 56.4 72 71.6 71.9
60 60.1 60.4 75 74.6 74.9
63 63.1 63.4 80 79.6 79.9
65 65.1 65.4 85 84.53 84.88
70 70.1 70.4 90 89.53 89.88
75 75.1 75.4 95 94.53 94.88
80 80.1 80.4 100 99.53 99.88
85 85.12 85.47 105 104.53 104.88
90 90.12 90.47 110 109.53 109.88
95 95.12 95.47 115 114.53 114.88
100 100.12 100.47 120 119.53 119.88
100 100.12 100.47 125 124.455 124.855
105 105.12 105.47 130 129.455 129.855
110 110.12 110.47 140 139.455 139.855
120 120.12 120.47 150 149.455 149.855
130 130.145 130.545 160 159.455 159.855
140 140.145 140.545 170 169.455 169.855
150 150.145 150.545 180 179.455 179.855
160 160.145 160.545 190 189.37 189.83
170 170.145 170.545 200 199.37 199.83

Additional information

D1*D2

3*5 100 Pcs / PKg, 3*6 100 Pcs / PKg, 3*7 100 Pcs / PKg, 4*6 100 Pcs / PKg, 4*8 100 Pcs / PKg, 5*7 100 Pcs / PKg, 5*8 100 Pcs / PKg, 5*9 100 Pcs / PKg, 5*10 100 Pcs / PKg, 6*8 100 Pcs / PKg, 6*9 100 Pcs / PKg, 6*10 100 Pcs / PKg, 6*12 100 Pcs / PKg, 8*12 100 Pcs / PKg, 8*13 100 Pcs / PKg, 8*14 100 Pcs / PKg, 10*14 100 Pcs / PKg, 10*16 100 Pcs / PKg, 12*18 50 Pcs / PKg, 12*20 50 Pcs / PKg, 14*20 20 Pcs / PKg, 15*21 20 Pcs / PKg, 16*22 20 Pcs / PKg, 17*24 20 Pcs / PKg, 18*25 20 Pcs / PKg, 20*28 20 Pcs / PKg, 22*32 20 Pcs / PKg, 25*35 20 Pcs / PKg, 28*40 10 Pcs / PKg, 30*42 10 Pcs / PKg, 35*45 10 Pcs / PKg, 40*50 5 Pcs / PKg
Thickness of Shim

0.1mm, 0.2mm, 0.3mm, 0.5mm
