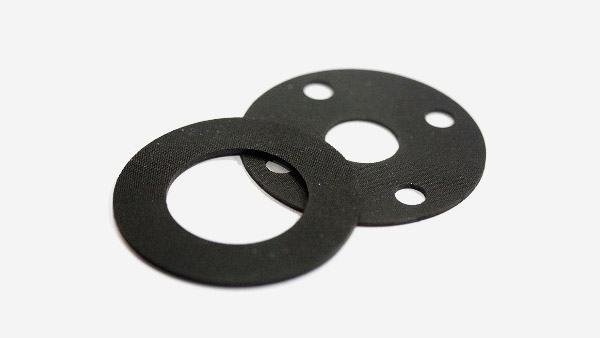

FLANGE GASKETS

Categories ,

Product Categories

Description

Two flange mating surfaces have microscopic defects on their surfaces in general. A mechanical gasket is used to prevent leakage from or into the joined objects while under compression to fill certain microscopic irregularities. Such a gasket is called a gasket with a flange. Flange gaskets act as a static seal between the two irregular flange faces and are made to operate with varying pressure and temperature ratings under different operating conditions.

TYPES

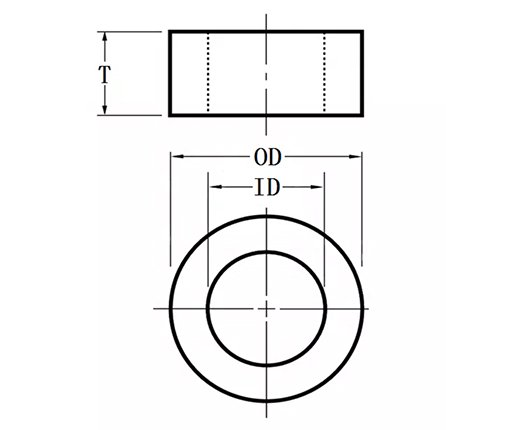

Ring Gaskets:

Ring gaskets, as the name suggests, look like flat rings. They come with an inner (ID), outer (OD) diameter and thickness. Rubber Seals & Gaskets can produce customized ring gaskets in a variety of materials such as Silicone, EPDM, Viton, Nitrile, etc. If the gasket has a large diameter, the manufacturing process may include direct molding (endless gaskets), typically favored for small size gaskets or splicing and vulcanization. It depends on the requirements of the company.

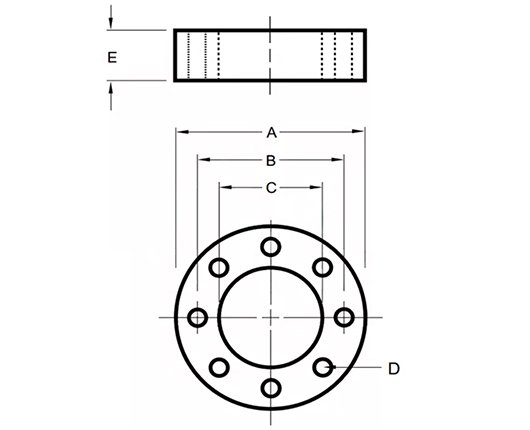

Full-Face Gasket:

A full-face gasket is similar to a ring gasket except that bolt holes are aligned at the Pitch Circle Dimeter (PCD) in a bolt circle. Both ring gaskets and full-face gaskets are available in metric and standard sizes and in different thicknesses. Depending on the application, materials will vary. All gaskets are made using our high-speed, high-precision die cutting equipment in-house to produce products that meet your exact needs.

POLYMER USED:

-Fluroelastomers (Viton)

-Neoprene

-Nitrile

-Natural Rubber

-Silicone

-Hydrogentaed Nitrile Rubber (HNBR)

-Ethylene Propylene Diene Monomer (EPDM

APPLICATION:

-Oil and gas industries

-Petrochemical

-Pipelines

-Chemical Industries

-Pharmaceutical

-Food Processing

-Electronic

SIZING – CHART

Below are the typical flange sizes, together with the different dimensions for Ring and Full Face Gaskets. For Rubber Flange Gaskets, the normal thickness is: 1/4 “(6.35 mm) or 1/8” (3.175 mm) or 1/16 “(1.5 mm).
