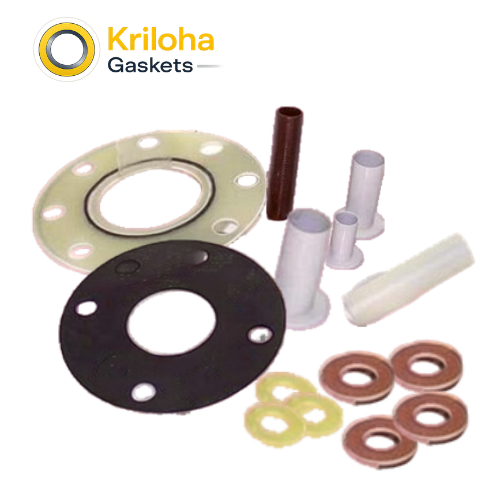

Type MCHG (Modified Critical High Pressure) Insulation Gasket

Type MCHG (Modified Critical High Pressure) Series
Type MCHG modified critical high-pressure insulation gasket with a 316 stainless core, high-modulus G-10/G-11 laminate and dual PTFE plus fire-safe backup seals. Modified groove resists seal roll-out with searching gases to 10,000 PSI.

Material

316 Stainless Steel core with high-density G-10/G-11 laminate, spring-energized PTFE primary + fire-safe secondary seal

Temp. Range

Up to approx. +150°C (+302°F); seal-material dependent

Max Pressure

ANSI Class 2500 / API up to 10,000 PSI (690 Bar)

standard

ASME B16.5 / API 6A / ASME B16.21

Core Features

  • Dual-Seal Engineering: The MCHG (Modified Critical High Pressure Gasket) is a sophisticated evolution of the standard CHG design. It features a Stainless Steel 316 core bonded with G-10 or G-11 Epoxy Glass, but with a modified sealing face that incorporates both a primary spring-energized PTFE seal and a secondary fire-safe or environmental backup.
  • High-Modulus Laminate: Utilizing a high-density G-10 retainer, the MCHG offers extreme compressive strength (up to 65,000 PSI). This allows the gasket to maintain its structural and electrical integrity even under the massive bolt loads required for Class 2500# or API 10,000 PSI flanges.
  • Modified Groove Geometry: The “Modified” aspect of the MCHG refers to a proprietary groove design that prevents seal “roll-out” during high-velocity gas flow. This makes it the preferred choice for injection lines where “searching gases” like Hydrogen or CO2 are transported at high pressures.
  • Zero-Wicking Technology: The G-10/G-11 surfaces are engineered with a hydrophobic finish, ensuring that moisture cannot penetrate the laminate. This prevents “electrical tracking” and ensures that the cathodic protection (CP) remains 100% effective in submerged or high-humidity environments.
  • Thermal Expansion Matching: The expansion coefficient of the MCHG’s metallic core is precision-matched to standard carbon steel piping. This prevents the “breathing” effect during thermal cycling, which can cause standard phenolic gaskets to leak or lose electrical isolation.

Technical Specifications

Construction 316 SS core vacuum-bonded in high-density G-10/G-11 (compressive strength up to 65,000 PSI)
Dual Seal Primary spring-energized PTFE plus secondary fire-safe/environmental backup seal
Modified Groove Proprietary geometry prevents seal roll-out in high-velocity searching gases (H2, CO2)
Dielectric / Wicking Over 20 MOhm electrical break; hydrophobic G-10/G-11 prevents tracking and keeps CP effective
Thermal Core expansion matched to carbon-steel pipe to stop breathing leaks during thermal cycling
Applications High-pressure subsea manifolds, H2/CO2 injection lines, critical refinery headers

Dimensions

Machined to ASME B16.5 / API 6A flange size and class (to 2500#/10,000 PSI) with grooved seal faces. Refer to SKU or flange schedule for exact dimensions.

Description

At Kriloha Ltd., we recognize that as energy infrastructure pushes into deeper waters and higher pressures, the demands on “Isolation” become absolute. A standard insulation kit is a consumable; the SUNWELL MCHG is a structural asset. As a premier global provider of high-integrity seals, Kriloha Gaskets recommends the MCHG for applications where the cost of a leak—either fluid or electrical—is catastrophic. The engineering of our MCHG series is based on Dynamic Containment. While traditional gaskets are static, the MCHG is “Live.” The spring-energized elements react to pressure surges, ensuring that the seal face is always under positive tension against the flange. At Kriloha, we utilize a specialized vacuum-bonding process to fuse the G-10 laminate to the steel core, creating a single, inseparable unit that resists delamination even during rapid gas decompression (RGD). Manufacturing these kits at Kriloha involves strict Acoustic Emission and Dielectric Testing. We ensure that the MCHG provides a total electrical break of over 20 Mega-Ohms even when fully torqued. Whether you are isolating a high-pressure subsea manifold or a critical refinery header, SUNWELL MCHG Insulation Gaskets provide the mechanical invincibility and electrical agility your facility demands. By choosing Kriloha Ltd., you are investing in a “Future-Proof” technology that secures your highest-value infrastructure against the twin threats of corrosion and high-pressure failure.

Applications

  • Ultra-High Pressure Gas Injection: The gold standard for EOR (Enhanced Oil Recovery) lines where CO2 or Nitrogen is injected at pressures exceeding 5,000 PSI.
  • Hydrogen Service Pipelines: Providing a “Gas-Tight” seal for hydrogen transport, where the molecule size requires a superior spring-energized PTFE barrier.
  • Critical Subsea Tie-ins: Used in subsea manifolds where the gasket must provide decades of maintenance-free electrical isolation against aggressive seawater.
  • High-Vibration Compressor Stations: The MCHG’s metallic core provides the fatigue resistance necessary for flanges located near heavy rotating equipment.
  • Extreme Sour Service: Fully NACE MR0175 compliant for use in the most aggressive H2S environments found in global production.
  •
