INSTRUMENTATION BALL VALVE & DISTRIBUTION HEADER
In the sophisticated world of process instrumentation, the integrity of your flow path is paramount. Kriloha Gaskets, an industry leader in high-performance sealing and industrial hardware, offers a specialized range of Instrumentation Ball Valves and Distribution Headers. As part of our Valve and Fitting Accessories main category, these components are designed to provide rapid shut-off and efficient fluid distribution for critical monitoring and control systems.
More Catagories

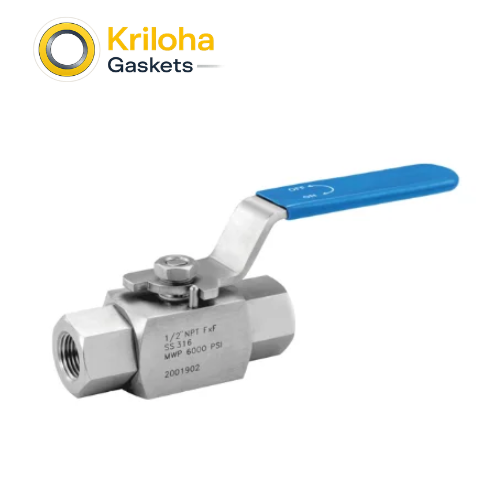

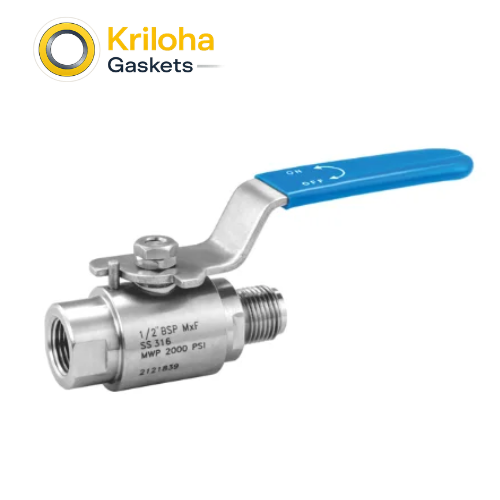

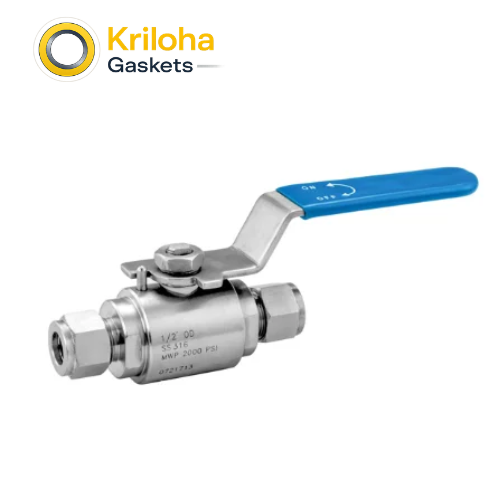

Instrumentation Ball Valves
Instrumentation Ball Valves are the “quick-response” workhorses of the control loop. Unlike needle valves designed for fine throttling, ball valves are engineered for full-flow efficiency and immediate isolation with a simple 90-degree turn of the handle.
Technical Specifications and Material Integrity
At Kriloha Gaskets, we ensure our ball valves meet the rigorous demands of high-pressure environments.
Material Selection: Available in Stainless Steel 316/316L, Carbon Steel (A105), and exotic alloys like Monel or Hastelloy for corrosive chemical service.
Seating Technology: We utilize high-grade PTFE or PEEK seats to ensure a bubble-tight seal and low-torque operation, even at maximum pressure.
Pressure Ratings: Standard series support up to 3,000 PSI, while our high-pressure forged series are rated for 6,000 PSI to 10,000 PSI.
Design Features: Features include blow-out proof stems, encapsulated ball seats to minimize cold flow, and panel-mount capabilities for control room integration.
Core Applications
Isolation: Ideal for isolating pressure gauges and transmitters for maintenance.
Sample Systems: Used in analytical sampling where a fast-acting valve is required to capture a fluid state.
Pneumatic Panels: Controlling the flow of air to actuators and control valves.

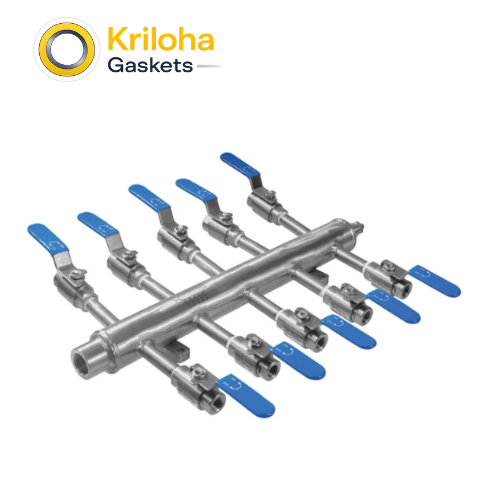

Distribution Headers (Air Headers)
A Distribution Header, often referred to as an Air Header, acts as a centralized “hub” for distributing air or other fluids to multiple instrumentation points. By consolidating numerous outlets into a single forged or pipe-style manifold, Kriloha headers eliminate the mess of “spaghetti” piping, reducing space and potential leak paths.
Engineering & Design
Construction: Manufactured from heavy-walled pipe or solid forged bar stock to ensure structural integrity.
Configurations: We offer customized outlet counts (typically 4, 6, 10, or 20 outlets) equipped with individual isolation valves (ball or needle type).
Drainage: Every header includes a dedicated drain valve at the lowest point to remove condensate or contaminants, protecting downstream instruments.
Mounting: Designed with integrated brackets for easy installation on 2-inch pipes or flat walls.
Why Use a Distribution Header?
Cost Efficiency: Reduces the total number of fittings and labor hours required for installation.
Organized Layout: Provides a clean, professional instrumentation setup that is easy to troubleshoot.
Pressure Stability: The large internal volume of the header acts as a “buffer,” minimizing pressure fluctuations when multiple instruments are in use.
The Kriloha Advantage: Integrated Sealing Solutions
While many suppliers provide generic valves, Kriloha Gaskets brings decades of sealing expertise to every component. We understand that an instrumentation valve is only as good as its connection to the system.
1. Leak-Free Performance
Our ball valves and headers are designed to work in perfect harmony with our proprietary gaskets and seals. When you source a complete kit from Kriloha, you are ensuring that the entire interface—from the flange to the sensor—is optimized for zero leakage.
2. Quality Assurance (QA)
Every instrumentation ball valve undergoes a rigorous shell and seat test. Our distribution headers are hydrostatically tested at 1.5 times the working pressure to ensure weld and material integrity.
3. Customization
We don’t believe in “one size fits all.” Our engineering team can customize header lengths, outlet types (NPT, BSPT, or compression fittings), and material grades to meet the specific GEO-location requirements of your project, whether in the industrial hubs of India or overseas.
Available Profile Configurations
Maintenance and Installation Best Practices
To ensure the longevity of your instrumentation accessories:
Directional Flow: While ball valves are often bi-directional, always check for specific flow arrows, especially in vented models.
Seal Protection: When installing headers, ensure the system is flushed of welding slag and debris, which can damage the soft seats of the outlet valves.
Regular Drain Cycles: For air headers, ensure the drain valve is opened periodically to prevent moisture buildup that could lead to internal corrosion.
Frequently Asked Questions (FAQ's)

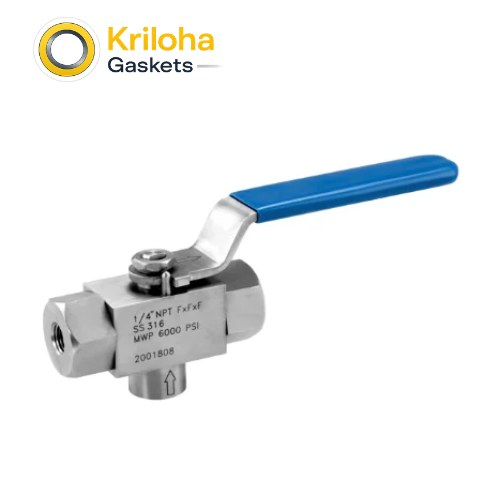

Q: What is the difference between a 2-way and a 3-way instrumentation ball valve?
A: A 2-way valve is for simple on/off isolation. A 3-way valve (L-port or T-port) is used for diverting flow between two different outlets or for mixing two inlet sources.
Q: Can your Distribution Headers be used for fluids other than air?
A: Yes. While often called “Air Headers,” they are perfectly suitable for water, nitrogen, and other non-corrosive gases and liquids, provided the material (SS 316 or Carbon Steel) is compatible with the media.
Q: Are these valves fire-safe?
A: We offer specific “Fire-Safe” models designed and tested to API 607 standards, featuring secondary metal-to-metal seats that maintain integrity even if the soft seats melt during a fire.
Q: What types of handles are available for the ball valves?
A: We offer standard lever handles, butterfly (T-type) handles for tight spaces, and even lockable handles to prevent unauthorized operation in safety-critical lines.
Q: Do you provide mounting kits for the Distribution Headers?
A: Absolutely. Every Kriloha Distribution Header can be supplied with a full mounting kit, including U-bolts and wall-mount brackets, to simplify your on-site installation.
Contact Kriloha Ltd. Today
for your valve and fitting parts accessories requirements. Invincible Seals. Agile Solutions.
