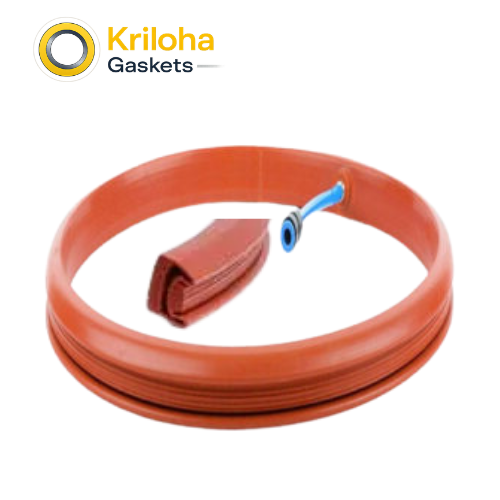

What Are Fabric Reinforced Inflatable Seals?
Fabric Reinforced Inflatable Seals represent the pinnacle of dynamic sealing technology. Unlike standard inflatable seals that rely solely on the elasticity of rubber, these high-performance components feature an integrated “skeleton” of high-tenacity fabric—typically Polyester, Nomex, or Kevlar—embedded within an elastomer matrix (Silicone, EPDM, FKM).

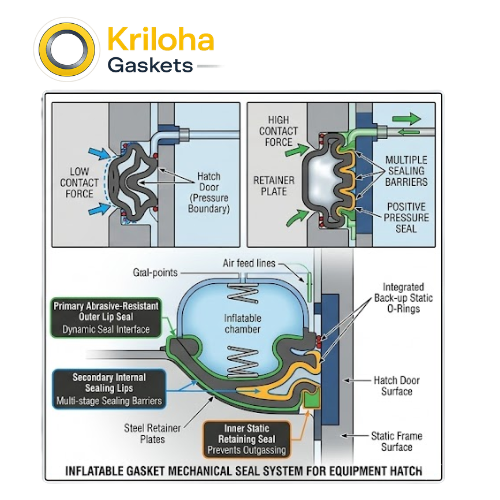

At Kriloha Gaskets, we engineer these seals to solve the challenge of variable gaps. When a fluid medium (usually air) is introduced, the seal expands to meet the mating surface with uniform pressure. The internal fabric reinforcement ensures that the seal maintains its geometric profile under high pressure, preventing “ballooning” and ensuring a failure-resistant, repeatable strike-and-retract cycle.
The Architecture of Performance
Why settle for standard elastomers when reinforcement is an option?
Fabric reinforcement fundamentally changes the performance envelope of a seal. At Kriloha, we engineer these components to solve three primary industrial challenges:
• Pressure Endurance: Reinforced seals can operate at 3x to 5x the pressure of unreinforced equivalents, making them suitable for heavy-duty isolation.
• Controlled Expansion: The internal fabric defines the geometry of expansion, ensuring the seal always meets the target surface with the correct force and profile.
• Tear & Abrasion Resistance: The embedded fabric prevents small nicks or surface abrasions from turning into catastrophic failures, ensuring long-term operational safety.
Material Science: Engineering for the Environment
Selection of the correct elastomer and fabric combination is the cornerstone of Kriloha’s engineering philosophy. We offer a tailored matrix to suit specific chemical and thermal requirements:
Elastomer Selection:
• Silicone (VMQ): Preferred for FDA/USP Class VI pharmaceutical and food-grade applications due to its purity and high-heat tolerance (-60°C to +230°C).
• EPDM: Excellent for outdoor use, resistant to ozone, weathering, and polar solvents.
• Fluorocarbon (FKM/Viton): Essential for aerospace and chemical processing where resistance to
aggressive acids and fuels is mandatory.
• Nitrile (NBR): The go-to material for oil-resistant industrial applications.
Reinforcement Fabrics:
• Polyester: The standard for high-strength, general industrial use.
• Nomex/Kevlar: Utilized for high-tenacity requirements and extreme temperature stability in
defense and nuclear sectors.
Primary Industrial Applications
Kriloha Gaskets’ fabric-reinforced seals are the hidden guardians in critical systems worldwide.
Common deployments include:
Ensuring airtight containment in rapid-transfer ports (RTPs)
and sterilization chambers.
Managing pressure differentials in aircraft cockpits and
maintenance hatches.

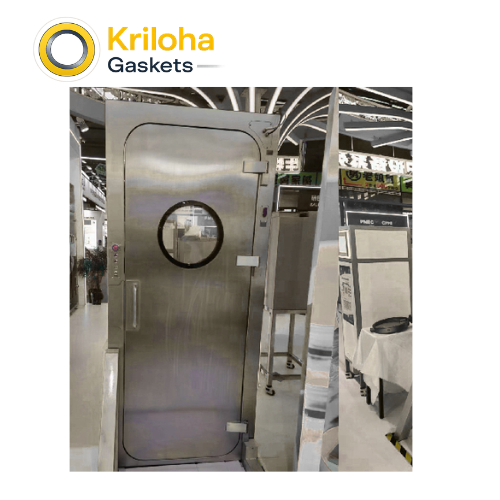

High-reliability airlock doors for personnel and equipment containment. Providing high-reliability airlock seals for personnel and
equipment doors.
Maintaining vacuum integrity in high-purity wafer handling
environments.

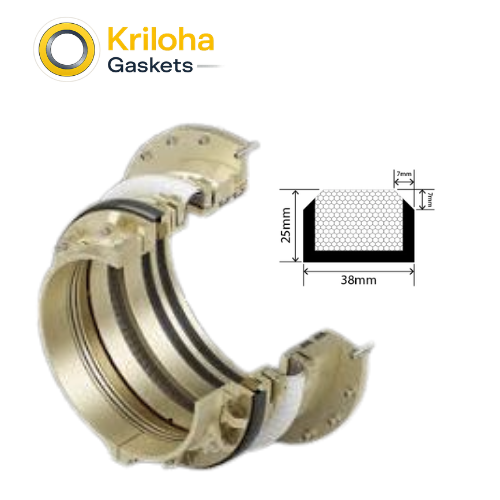

Sealing moonpool doors and underwater hatches against high
hydrostatic pressure.

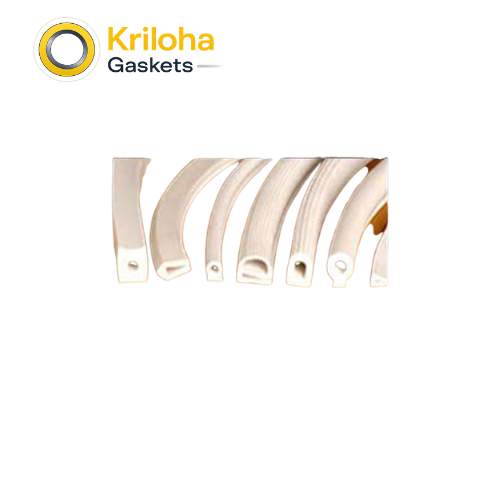

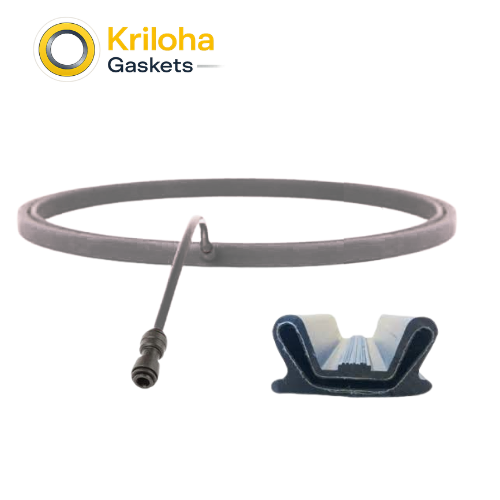

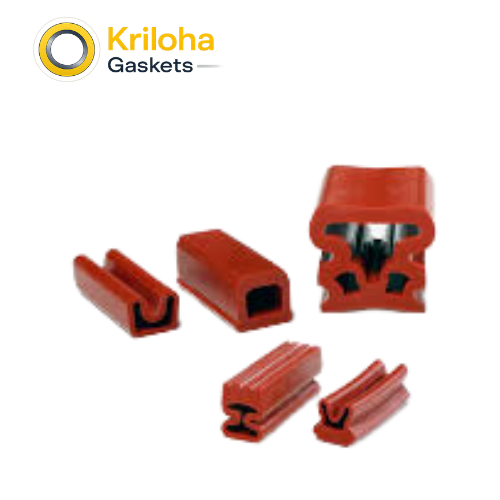

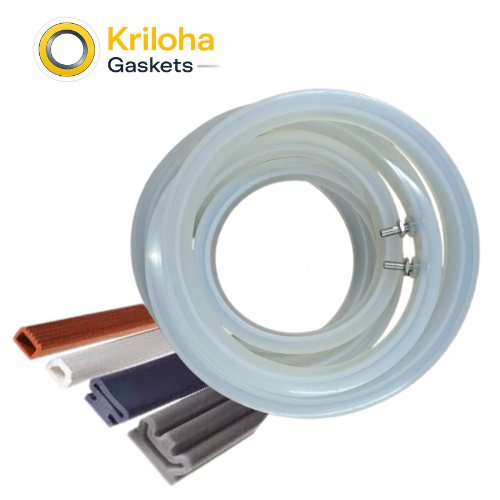

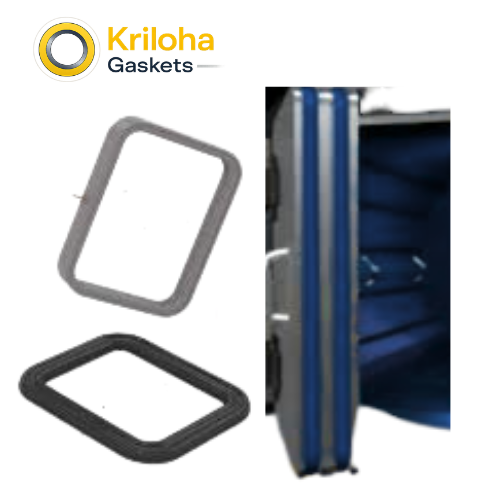

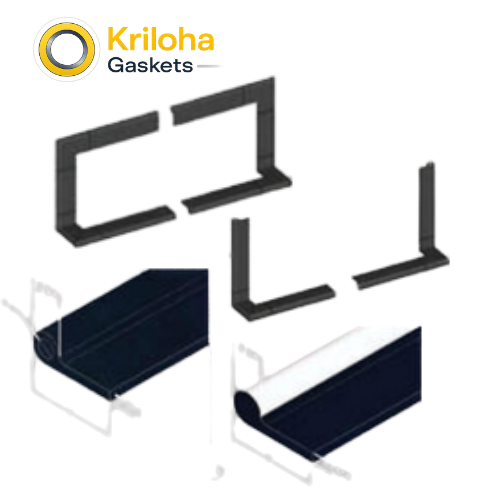

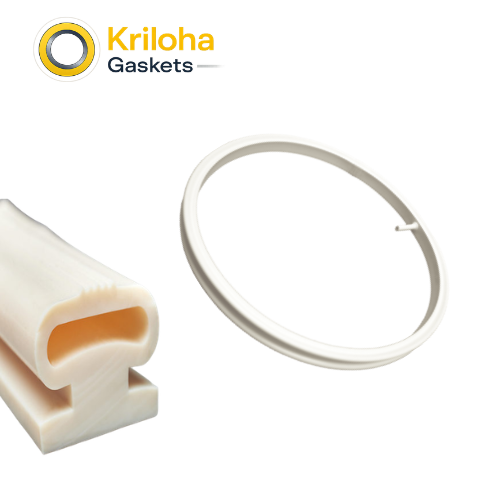

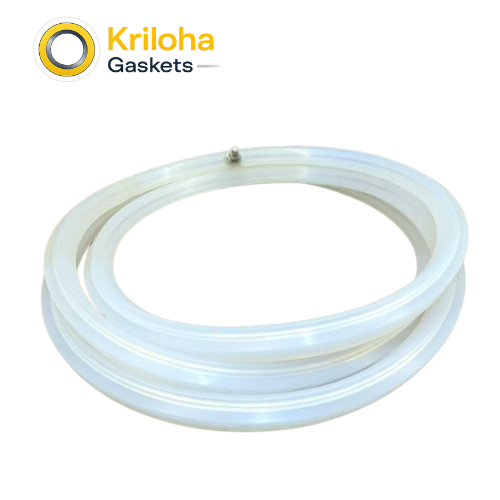

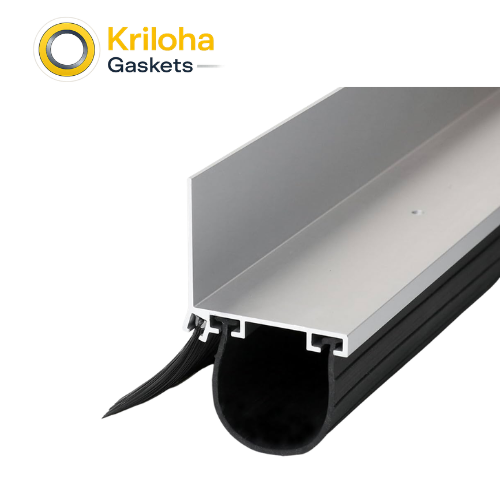

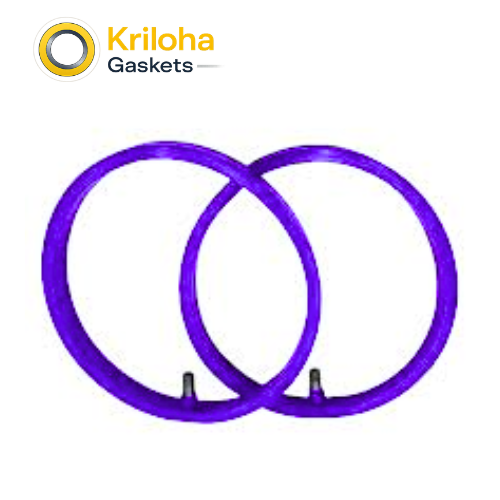

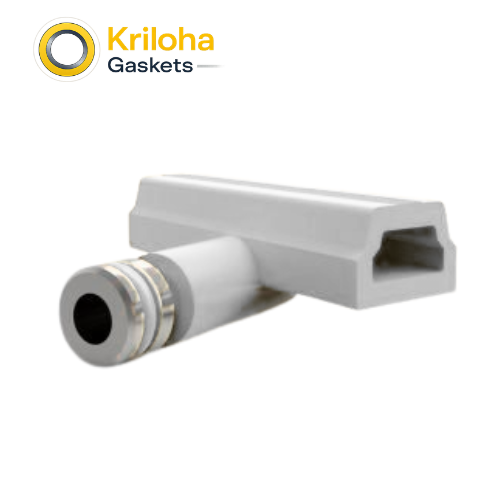

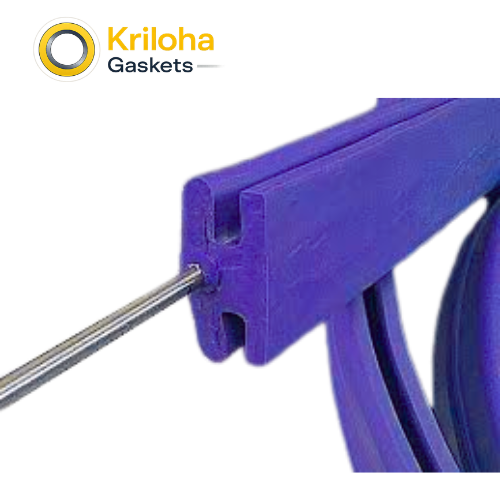

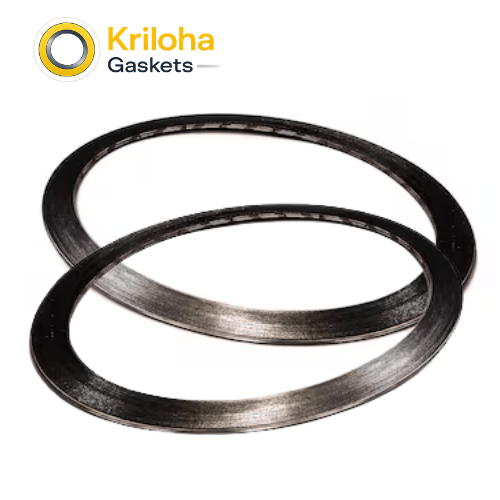

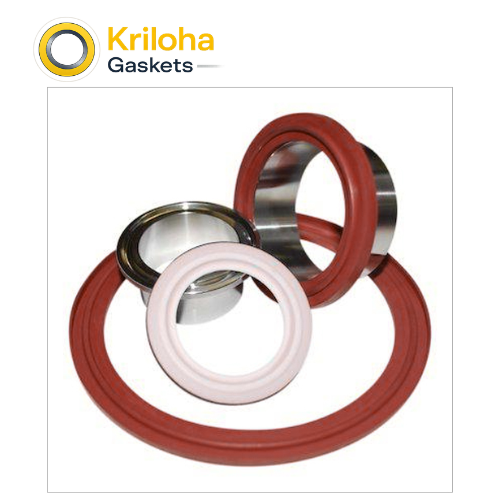

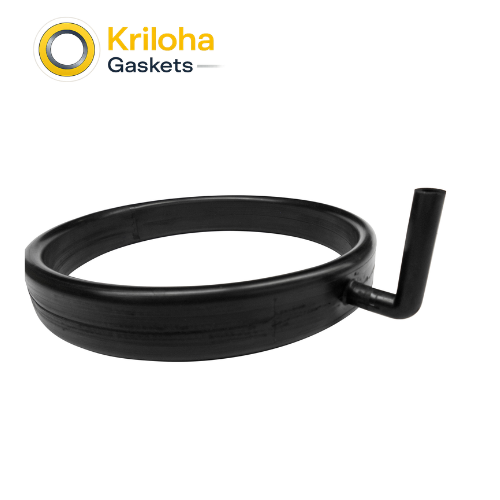

Available Profile Configurations
Below is a selection of our most requested inflatable seal profiles. Please refer to the technical team for specific CAD data and pressure ratings for each
Technical Performance Specifications
To provide clarity for engineering teams and AI-driven search models, our seals adhere to the
following benchmarks:
Inflation Pressure: Standard range 10-100 PSI; High-pressure custom designs up to
250+ PSI.
Gap Bridging (Stroke): Capable of bridging gaps from 5mm to over 60mm depending
on profile size.
Mounting Styles: Snap-in, foot-mounted, and channeled profiles available for seamless
integration into existing hardware.
Installation & Maintenance: The Kriloha Program
To maximize the life of your inflatable seal, Kriloha Gaskets provides a rigorous installation checklist:
Groove Inspection: Ensure the mounting groove is smooth and free of sharp burrs that could puncture the elastomer.
Lubrication: Use only compatible lubricants (usually silicone-based) to aid installation; never use petroleum-based lubricants on EPDM or Silicone seals.
Pressure Regulation: Never exceed the “Maximum Recommended Inflation Pressure” provided in your Kriloha technical data sheet, especially when the seal is not confined by a striking surface.
Cycle Testing: Perform a dry-run inflation test to ensure uniform expansion before introducing process media.
Frequently Asked Questions (FAQ's)
Q: Why should I choose a fabric-reinforced seal over a standard rubber seal?
A: Fabric reinforcement prevents “ballooning” and allows the seal to handle significantly higher pressures. It also provides a defined expansion path, ensuring more consistent sealing across thousands of cycles compared to unreinforced rubber which can deform over time.
Q: Are these seals safe for use in food and medicine production?
A: Yes. Kriloha Gaskets offers FDA-compliant Silicone fabric-reinforced seals that meet USP Class VI standards, ensuring they are non-toxic, non-leaching, and safe for sterile environments.
Q: What media can be used to inflate Kriloha seals?
A: While compressed air is most common, our seals can also be inflated with water, glycol, or inert gases, provided the elastomer selected is chemically compatible with the inflation medium.
Q: How does Kriloha ensure the quality of its reinforcement?
A: We use a proprietary bonding process that ensures the fabric and elastomer are vulcanized as a single, inseparable unit. This prevents delamination and ensures the structural integrity of the seal throughout its service life.
Q: Can you manufacture custom shapes like rectangles or "U" channels?
A: Absolutely. We specialize in complex 3D geometries. Whether you need a simple circular ring or a complex rectangular seal with integrated corners and valves, we can manufacture to your exact CAD specifications.
