INSTRUMENTATION PIPE FILLINGS
In the intricate world of process control and fluid dynamics, the smallest connection can be the difference between a high-performing system and a hazardous leak. Kriloha Gaskets, a trusted leader in advanced industrial sealing and hardware, presents our premium range of Instrumentation Pipe Fittings.
Catagories
What are Instrumentation Pipe Fittings?
Instrumentation pipe fittings are specialized connectors used to join pipes or connect pipes to instruments within a process control system. While often confused with “tube fittings,” pipe fittings are specifically designed for systems using nominal pipe sizes (NPT, BSP, etc.) and are generally utilized where robust, permanent, or high-pressure threaded connections are required.
The Role of Precision:
System Standardization: They facilitate the transition between different thread types and pipe sizes across a facility.
Vibration Resistance: Our fittings are machined from high-integrity forgings and bar stock to withstand the constant mechanical “hum” of industrial machinery without loosening.
Chemical Compatibility: They act as a corrosion-resistant bridge, ensuring that aggressive process media does not degrade the integrity of the connection point.
Technical Specifications and Material Standards
At Kriloha Gaskets, we treat metallurgy as the backbone of safety. Our instrumentation fittings are manufactured to meet and exceed global standards, including ASME B1.20.1 (for NPT threads) and ASME B16.11.
Premium Material Options:
Stainless Steel 316/316L: Our flagship material, offering the highest level of corrosion resistance and durability in chemical and offshore environments.
Carbon Steel (ASTM A105): Ideal for high-pressure hydraulic and oil-based systems where corrosion is managed.
Monel & Hastelloy: Specifically provided for “Sour Gas” (H2S) service and highly acidic process lines.
Brass: A reliable choice for low-pressure pneumatic systems and non-corrosive gas handling.
Design Features:
Precision Machined Threads: Every fitting undergoes rigorous gauging to ensure perfect thread engagement, reducing the risk of galling or cross-threading.
High-Pressure Ratings: Standard configurations support 3,000 PSI and 6,000 PSI, with specialized high-pressure variants available up to 10,000 PSI.
Core Components in the Kriloha Range
To ensure total flexibility in your piping layout, we offer a comprehensive variety of configurations:

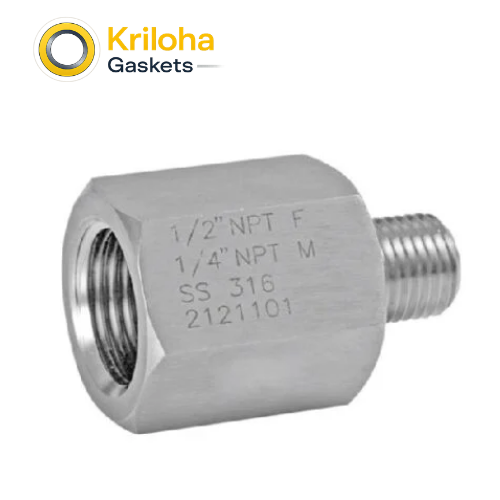

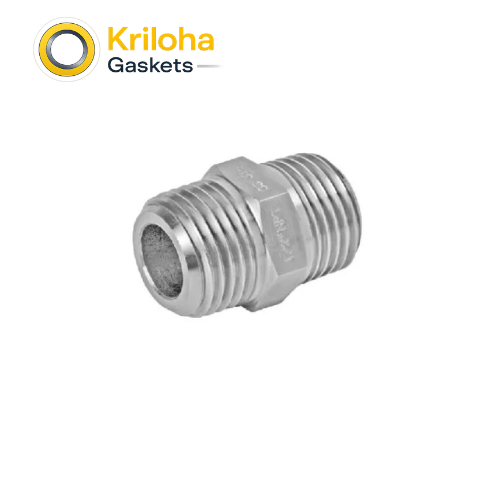

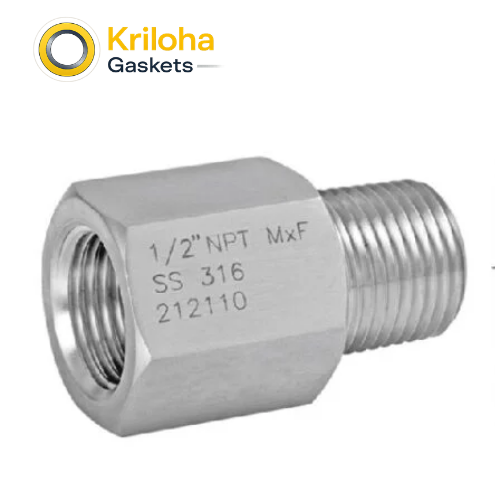

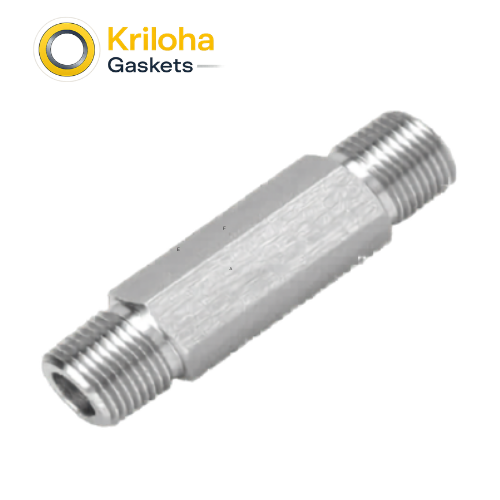

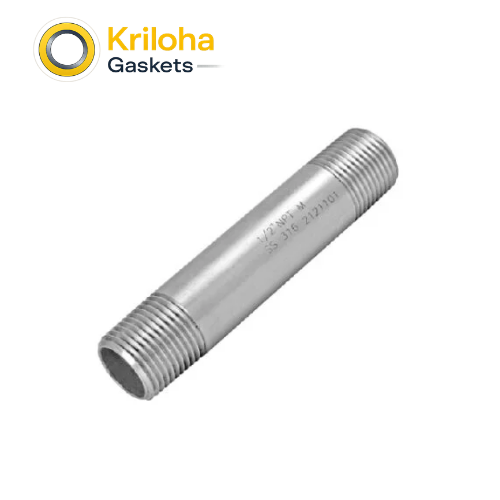

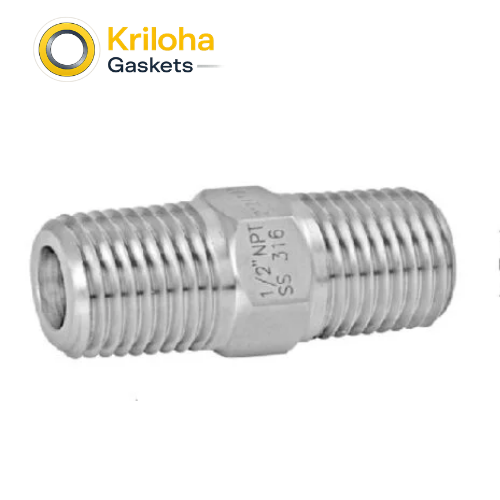

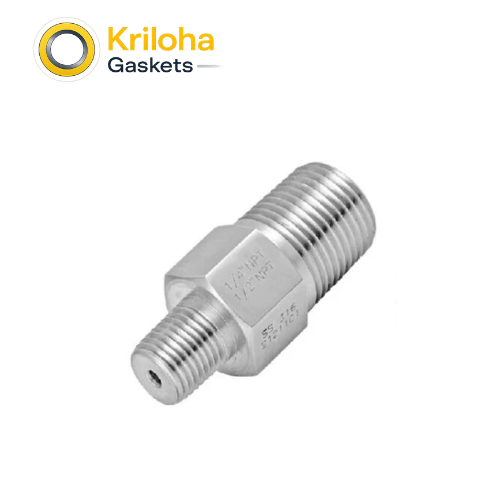

Hex Nipples & Adapters: For connecting two female ports or transitioning between different thread sizes.

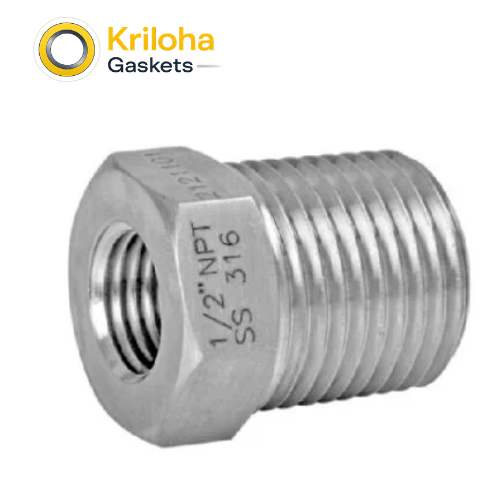

Reducing Bushings: Essential for stepping down pipe sizes to fit smaller instrumentation ports.

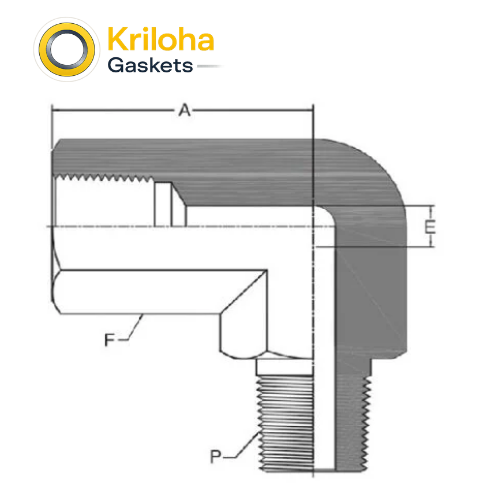

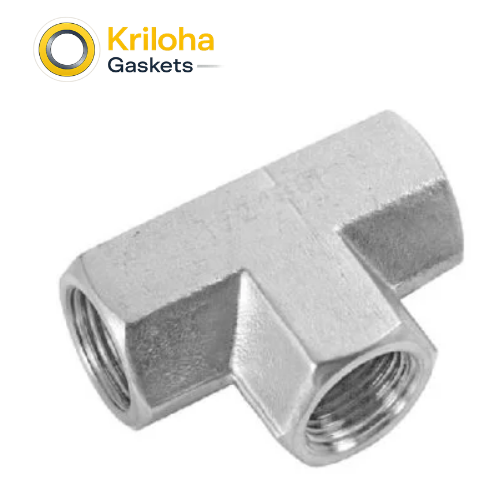

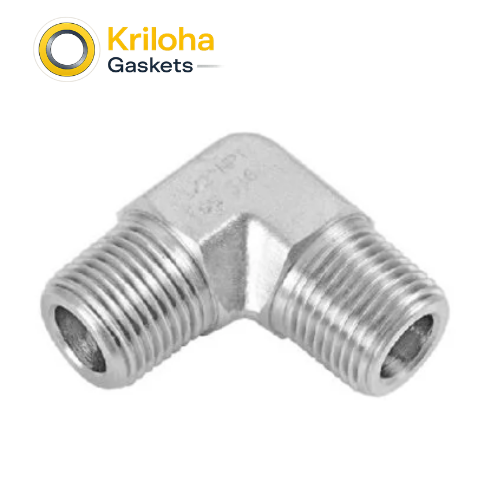

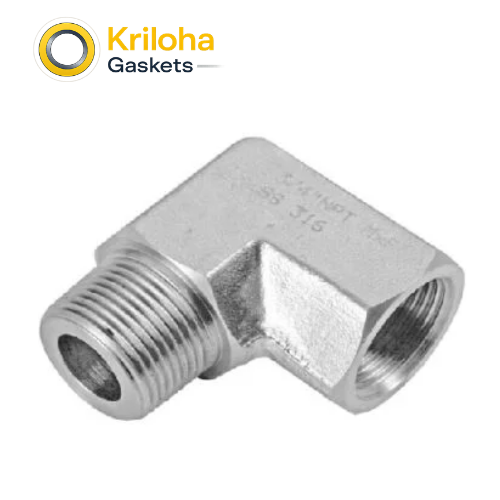

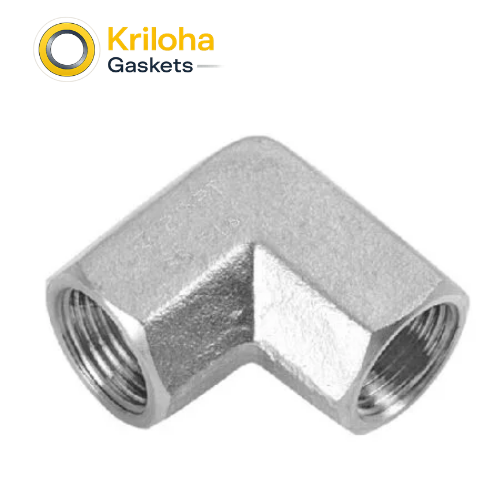

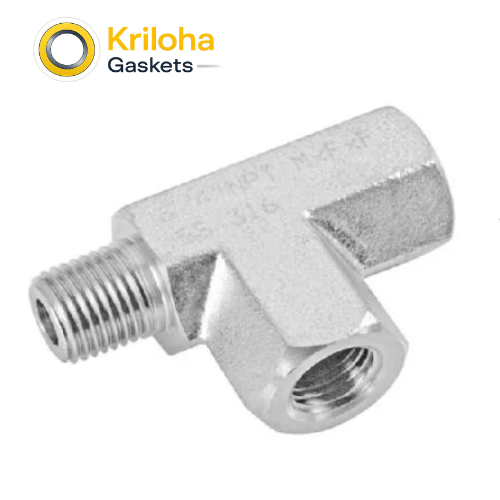

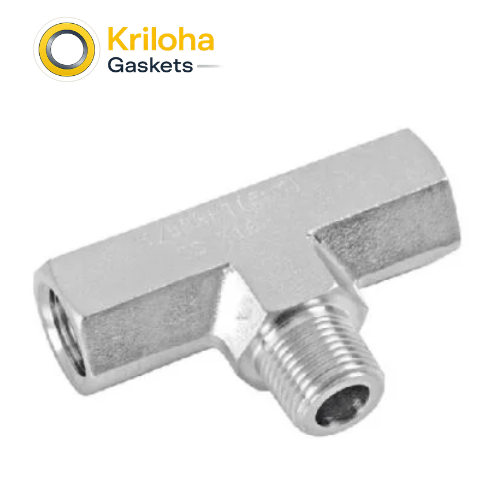

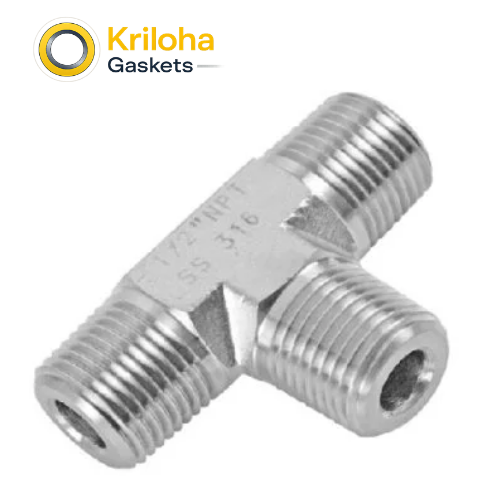

Elbows & Tees (Forged): For changing flow direction or branching a process line at 90-degree angles.

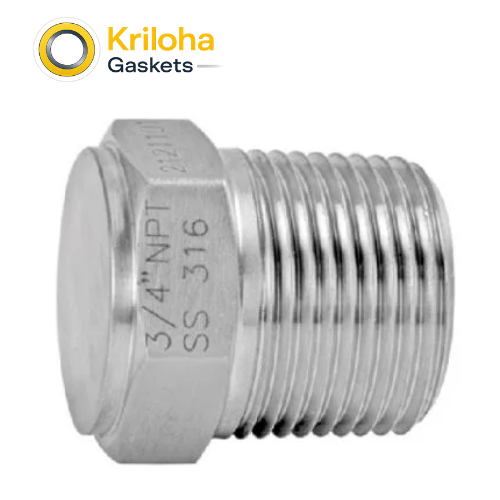

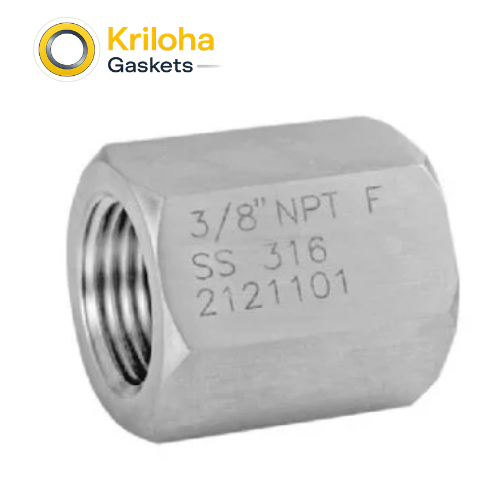

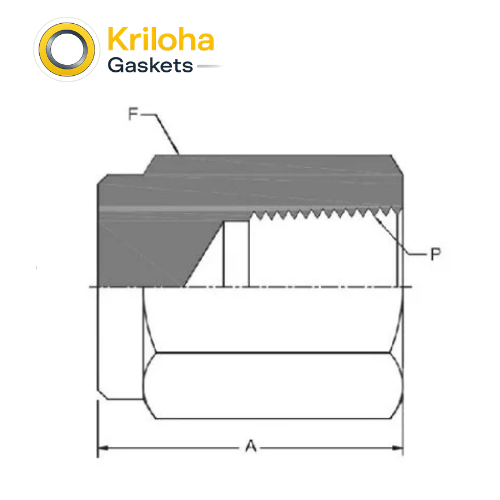

Plugs & Caps: For securely sealing off unused ports or manifold ends.

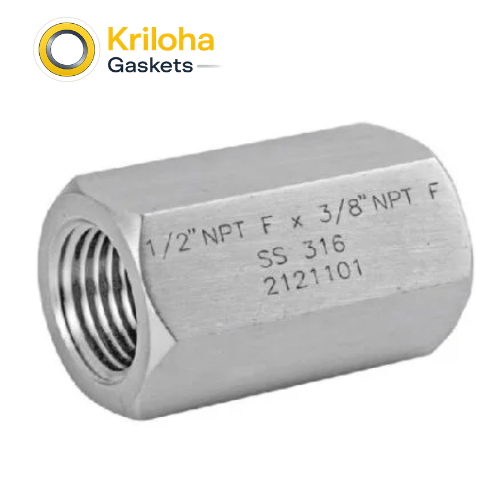

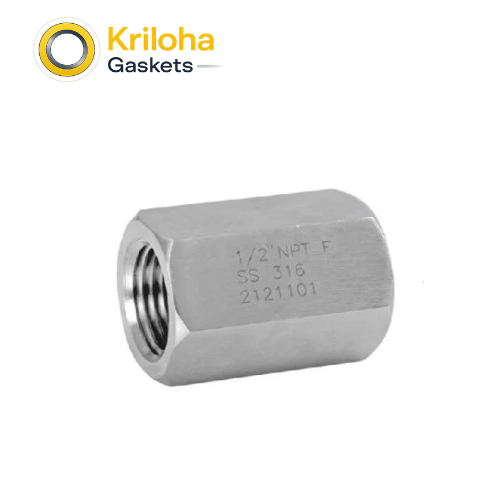

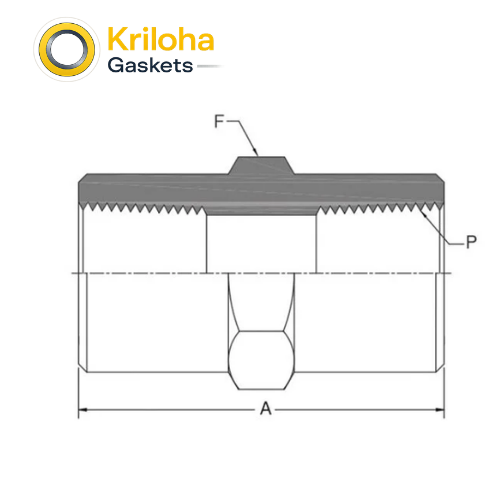

Couplings: Precision-machined sleeves for joining two male threaded pipe sections.
Why Source Fittings from Kriloha Gaskets?
While many manufacturers produce fittings, Kriloha Gaskets bridges the gap between Sealing and Fitting.
1. The Sealing Advantage
We understand that a fitting is only as good as its seal. Our fittings feature smooth, burr-free surfaces that optimize the performance of Kriloha PTFE Tapes and High-Temperature Thread Sealants, ensuring a gas-tight connection from the first turn.
2. Full Traceability
Every instrumentation fitting is laser-etched with its material heat code and pressure rating. We provide full Material Test Certificates (MTC), ensuring you have the documentation required for safety audits and regulatory compliance.
3. Integrated Solutions
When you source from Kriloha, you are getting an integrated system. We ensure our fittings are perfectly matched to our Manifold Valves, Gauge Siphons, and Thermowells, eliminating the guesswork of mixing components from different suppliers.
Available Profile Configurations
Installation and Maintenance Best Practices
Thread Lubrication: Always use a high-quality thread lubricant or Kriloha PTFE tape on stainless steel threads to prevent galling (cold welding) during assembly.
Avoid Over-Tightening: While a secure fit is necessary, excessive torque can deform the threads and lead to future leak paths. Use a calibrated torque wrench for critical instrumentation.
Regular Inspection: In high-vibration systems, check the fitting connections during scheduled maintenance intervals to ensure zero weepage or atmospheric corrosion.
Frequently Asked Questions (FAQ's)
Q: What is the difference between Pipe Fittings and Tube Fittings?
A: Pipe fittings are typically threaded and measured by nominal pipe size (e.g., 1/2″ NPT). Tube fittings (like double ferrule connectors) use a mechanical grip on the outside diameter of a tube and do not require threading on the tube itself.
Q: Can I mix Stainless Steel fittings with Carbon Steel pipes?
A: While physically possible, it is not recommended due to the risk of galvanic corrosion. To ensure system longevity, Kriloha recommends matching the fitting material to the piping material.
Q: Are Kriloha instrumentation fittings suitable for vacuum service?
A: Yes. Our precision-machined threads and high-quality finishes ensure excellent sealing performance in both high-pressure and vacuum applications.
Q: Do you offer NPT and BSP threads?
A: Yes. We stock a full range of NPT (National Pipe Thread) and BSP (British Standard Pipe) threads to ensure global compatibility with various instrumentation standards.
Q: What is the benefit of a "Forged" fitting over a "Bar Stock" fitting?
A: Forged fittings (typically used for elbows and tees) offer superior grain structure and strength for high-pressure or high-temperature service. Straight fittings like nipples and bushings are expertly machined from high-quality bar stock.
