PRESSURE GAUGE ACCESSORIES
Hex Nipple

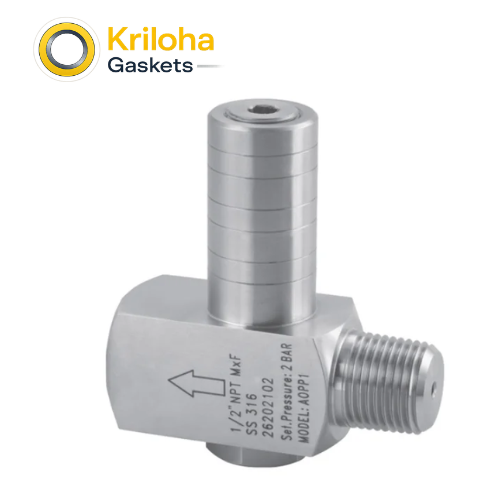

Over Pressure Protectors
As the name indicates, this device saves instruments from the over pressure. Gauge savers close at a set point protects instruments from over load. A OPP 1
Standard Specifications:
Size :¼" NPT M X F, G 1/2 LH-RH Union
Material :316 SS
Seal :Viton
Set Pressure :0.4 bar to 2.5 bar
Maximum working Pressure :400 Bar
Over Pressure Safety up to :1000 Bar
Max. Temp. :+80°C
Over Pressure Protectors
As the name indicates, this device saves instruments from the over pressure. Gauge savers close at a set point protects instruments from over load. A OPP 1
Standard Specifications:
Standard Specifications:
Size :¼" NPT M X F, G 1/2 LH-RH Union
Material :316 SS
Seal :Viton
Set Pressure :3 to 16 bar, 16 to 60 bar, 60 to 160 bar, 160 to 260 bar, 200 to 300 bar, 300 to 400 bar
Maximum working Pressure :400 Bar
Over Pressure Safety up to :1000 Bar
Max. Temp. :+80°C

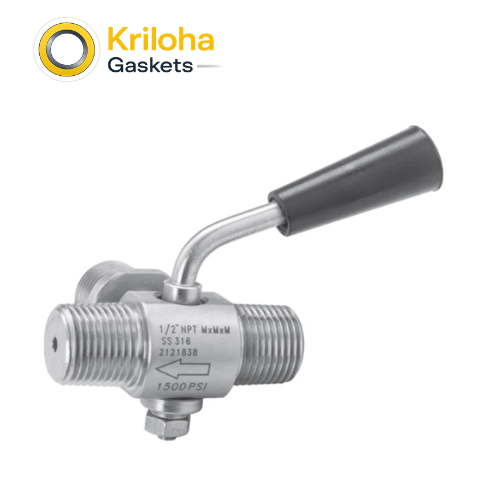

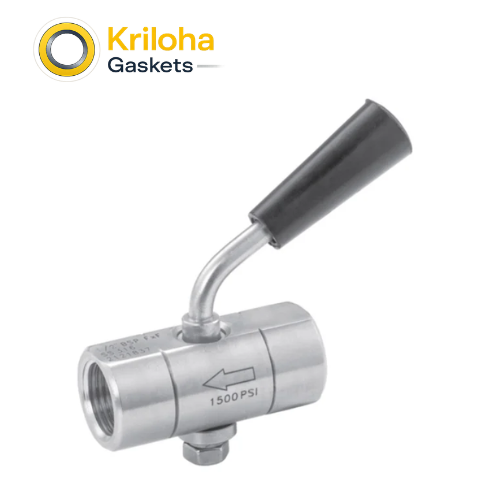

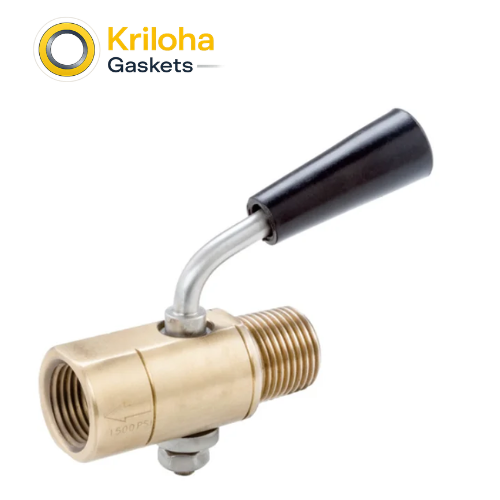

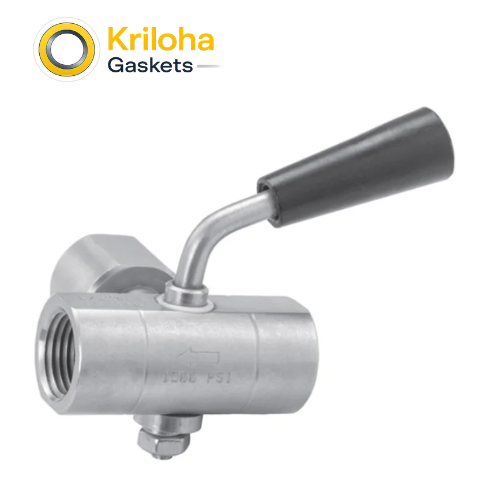

Gauge Cocks
Gauge Cocks
This cock is use with the pressure gauge for isolation and drain purpose.
Standard Specifications:
Size :½" to ¼"
End Connections :NPT / BSPP / BSPT
Material :316 SS / 316L SS 304 SS Brass
Seal :PTFE
Maximum working Pressure :1500 PSI

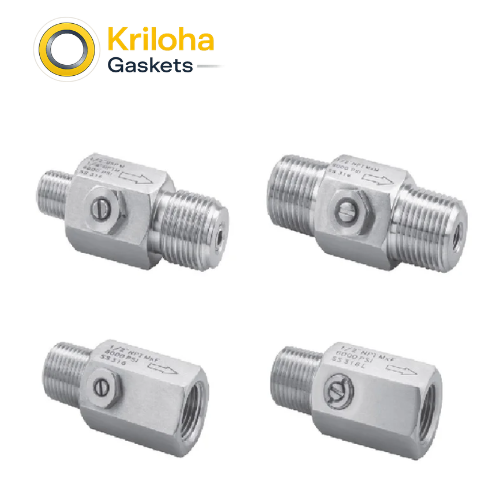

Pressure Gauge Snubbers
Pressure Gauge Snubbers
With the help of variable orifice, these gauge snubbers protect pressure gauges by reducing fluctuations.
Standard Specifications:
Size :½" to ¼"
End Connections :NPT / BSPP / BSPT
Material :316 SS / 316L SS / 304 SS / Brass
Seal :Viton
Maximum working Pressure :6000 PSI
Maximum working Temperature :120° C

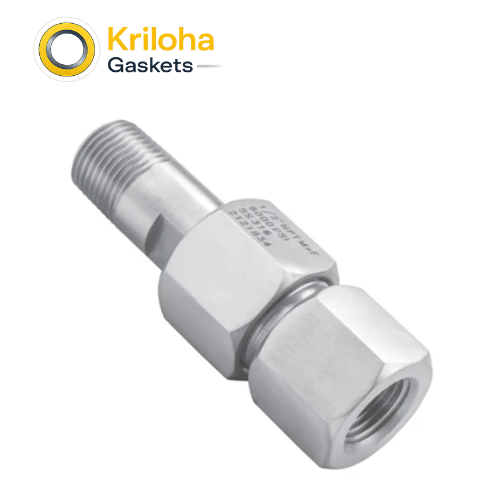

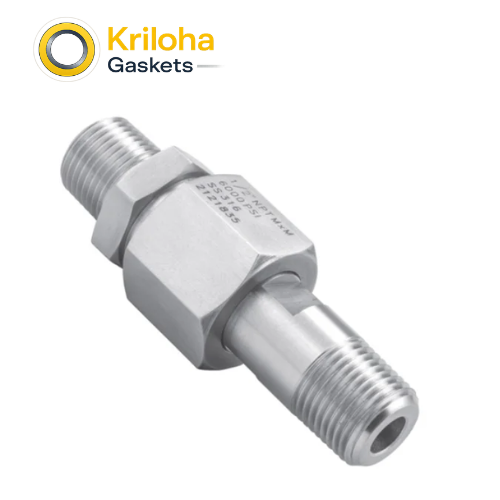

Pressure Gauge Swivel Adapter
Pressure Gauge Swivel Adapter
With the help of variable orifice, these gauge snubbers protect pressure gauges by reducing fluctuations.
Standard Specifications:
Size :½" to ¼"
End Connections :NPT / BSPP / BSPT
Material :316 SS / 316L SS / 304 SS / Brass
Seal :Viton
Maximum working Pressure :6000 PSI
Maximum working Temperature :120° C

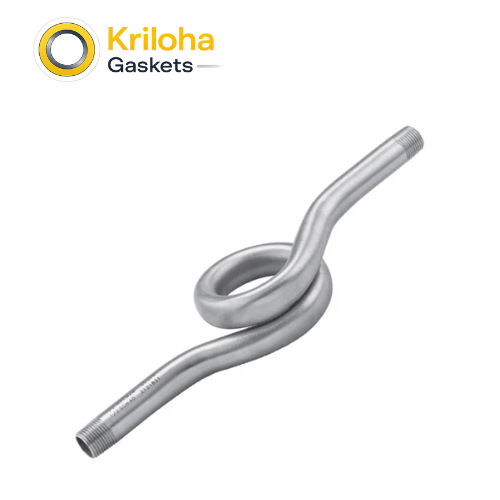

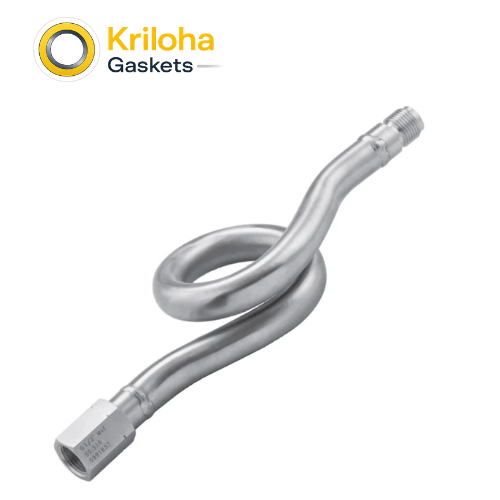

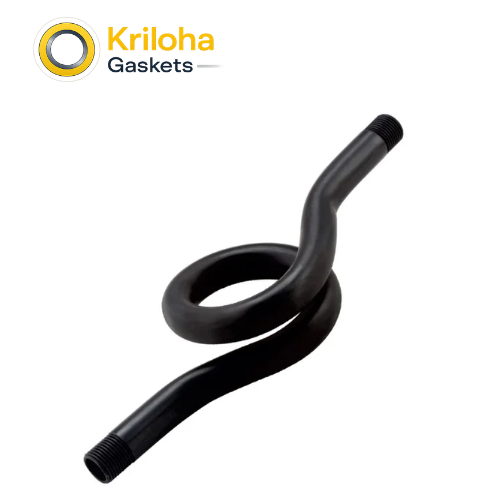

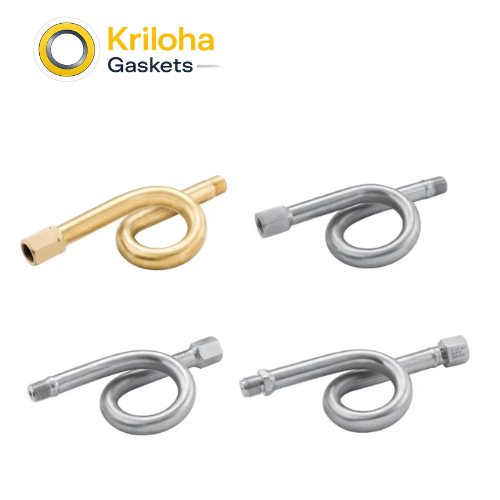

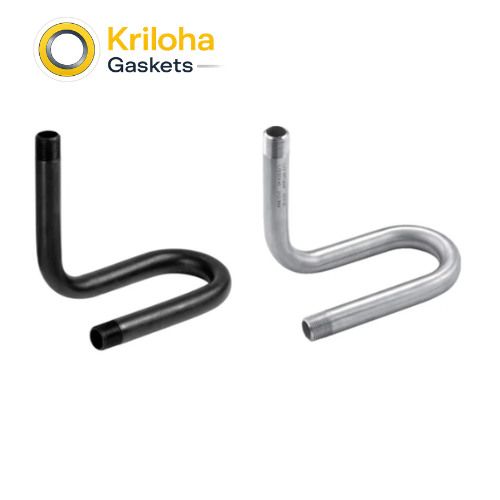

Pressure Gauge Siphon
Pressure Gauge Siphon
The siphon is used to protect the pressure gauges from the steam or high temperature fluid. Siphon reduces the temperature of the process fluid by dissipating the heat. It also heips to reduce the line surges fluctuations.
Standard Specifications:
Size :⅓"¢0 ¼*
End Connections :NPT / BSPP / BSPT
Material :316 SS / 316L SS / 304 SS / CS
Maximum working Pressure :6000 PSI
