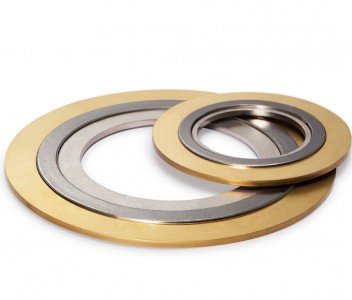

Spiral Wound Gasket Style GI

Spiral Wound Gasket Style GI

Spiral Wound Gasket supplied by Diyak is widely uesd for sealing flange joints, manhole and handhole covers, tube covers, boilers, heat exchangers, pressure vessels, pumps, compressors and valves, in industries such as petrochemical, pharmaceutical, shipbuilding, and food processing, in power industries and nuclear power stations. They are ideal for steam, oil, liquids, gases, acids, alkalines, various organic mediums and solvents. It can be manufactured with any material as per customers requirement in accordance with the standard ASME, DIN, BS, API or to customer’s specification.
=

Description

Spiral Wound Gasket Style GI

Spiral wound gaskets are produced in several style and combination of meterials to fit the most stringent application. Spiral wound gaskets are usually of circular shape, however we can produce them in other shapes such as: oval, rectangular, with round corners, etc. Our standard production program comprises a range of spiral wound gaskets with inner diameters of 10mm to 3000mm and non-standard dimensions and shapes, and larger diameters are available on request.

Solid inner metal ring acts as a compression stop and fills the annular space between flange bore and the inside diameter. Designed to prevent accumulation of solids, reduce turbulent flow of process fluids and minimize erosion of flange faces. Suitable for male and female pipe flanges.

Standard of Spiral Wound Gasket

  • GB4622.2-2008
  • HG20610-2009
  • HG20631-2009
  • ASME B16.20
  • BS EN 1514-2
  • BS EN 12560-2
  • JIS B2404
  • EN 1514-1
  • EN 12560-1
  • JB-T 4705

*We can make various shapes of spiral wound gasket as your drawing and your dimensions.

Materials Available for Spiral Wound Gasket


METAL WINDING STRIP FILLER MATERIALS GUIDE RING MATERIALS
Stainless Steel 316L Treated Asbestos Fiber Carbon Steel
Stainless Steel 304 Non-Asbestos Fiber Stainless Steel 304
Stainless Steel 309 P.T.F.E Stainless Steel 316L
Stainless Steel 310 Flexible Graphite Stainless Steel 316
Stainless Steel 316 Ceramic Ti Stainless Steel
TiStainless Steel Aluminum 321Stainless Steel
321 Stainless Steel 347 Stainless Steel
347 Monel 4l0 Monel
400 Nickel 400 Nickel
200 Inconel 200 Inconel
600 Inronel 600 Incoloy
625 Inconel 800Inroloy
X750 Incoloy 825 Hastalloy
800 Incoloy B2 Hastalloy
825 Hastalloy C276 Titanium
B2 Hastalloy Alloy 20
C276 Titanium
