Description
Wealson has the experienced staff and equipment available to not only custom manufacture and fabricate PTFE gaskets, but can also produce PTFE custom parts, including heat exchanger gaskets, pads, and other custom components for a variety of industrial uses. In other words, Wealson Gasket can custom fabricate – flat cut, die cut or water jet cut – practically any custom part from PTFE to your specifications.

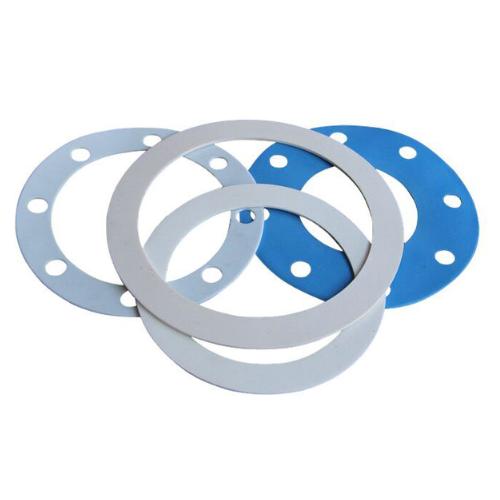

Pure PTFE Gasket is made by cutting PTFE stick, pipe and sheet into flat shape, V shape gasket and valve annulus.
It has 100% PTFE structure. It can be bear the most bitter chemical medium, and has good anti-creeping performance.
Prime Features of PTFE Gasket
- Acid and alkali resistant
- Chemical resistant
- Has minimum friction coefficient of all know pure material
- Non-viscous/no aging
- Non-viscous/no aging
Specifications of PTFE Gasket
| Item | Unit | Value |
|---|---|---|
| Apparent Density | g/cm3 | 2.1~2.3 |
| Tensile Strength | MPa | 15.0 |
| Elongation | % | 150 |
| Compressibility | % | 20±5 |
| Recovery | % | ≥30 |
| Thickness | mm | 0.5~600 |
| Diameter | mm | DN10~DN8000 |
| Temperature | °C | -160~+230 |
