AIR INLET VALVES

Air Inlet Valves are vital components in the design and construction of an inflatable seal. This is the point from which the medium(air/liquid/gas) flows in to the seal to account for inflation. Our standard Air Inlet Valves(AIV’s) are manufactured in brass, stainless steel, elastomers and PTFE.

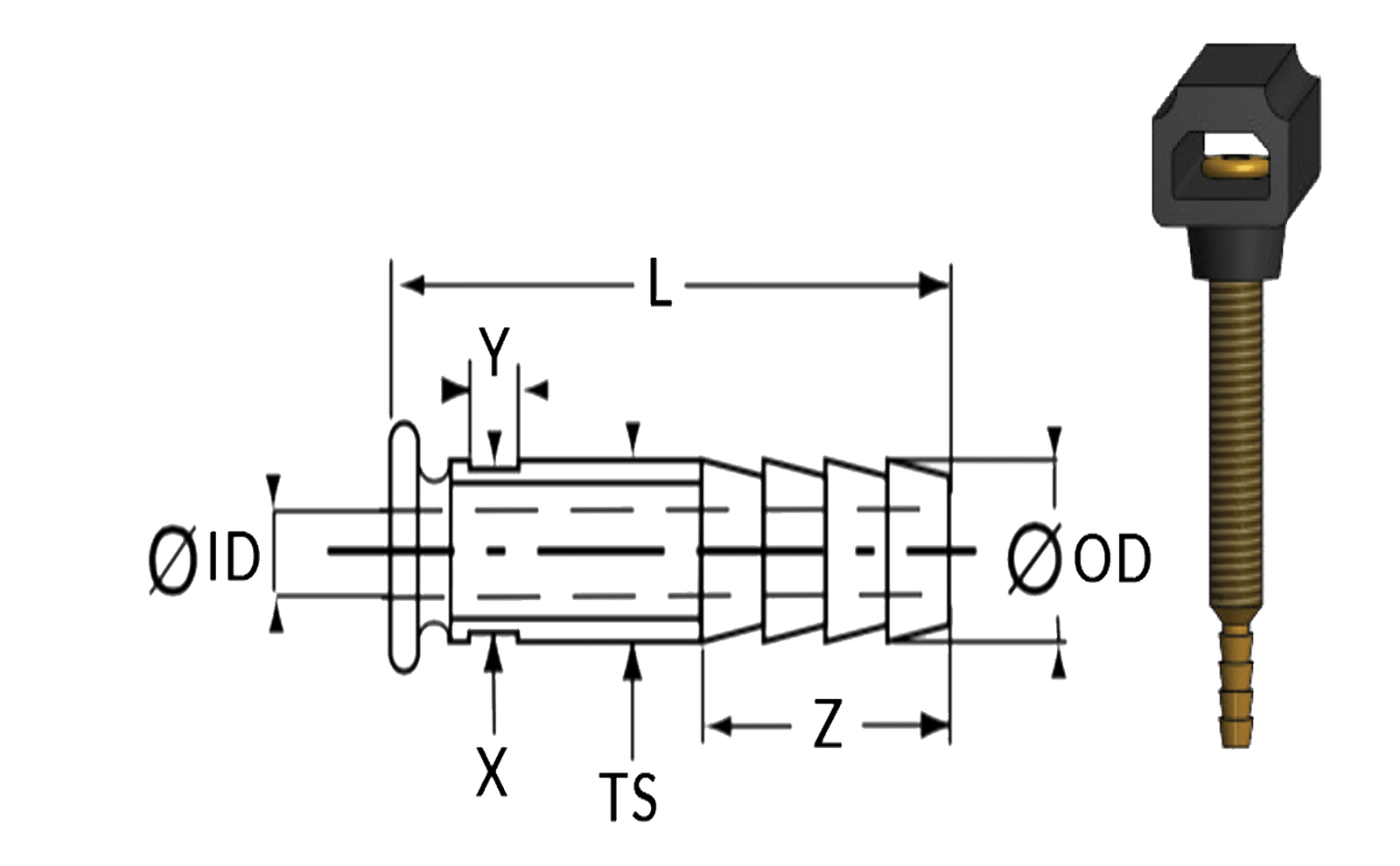

• AIV 1

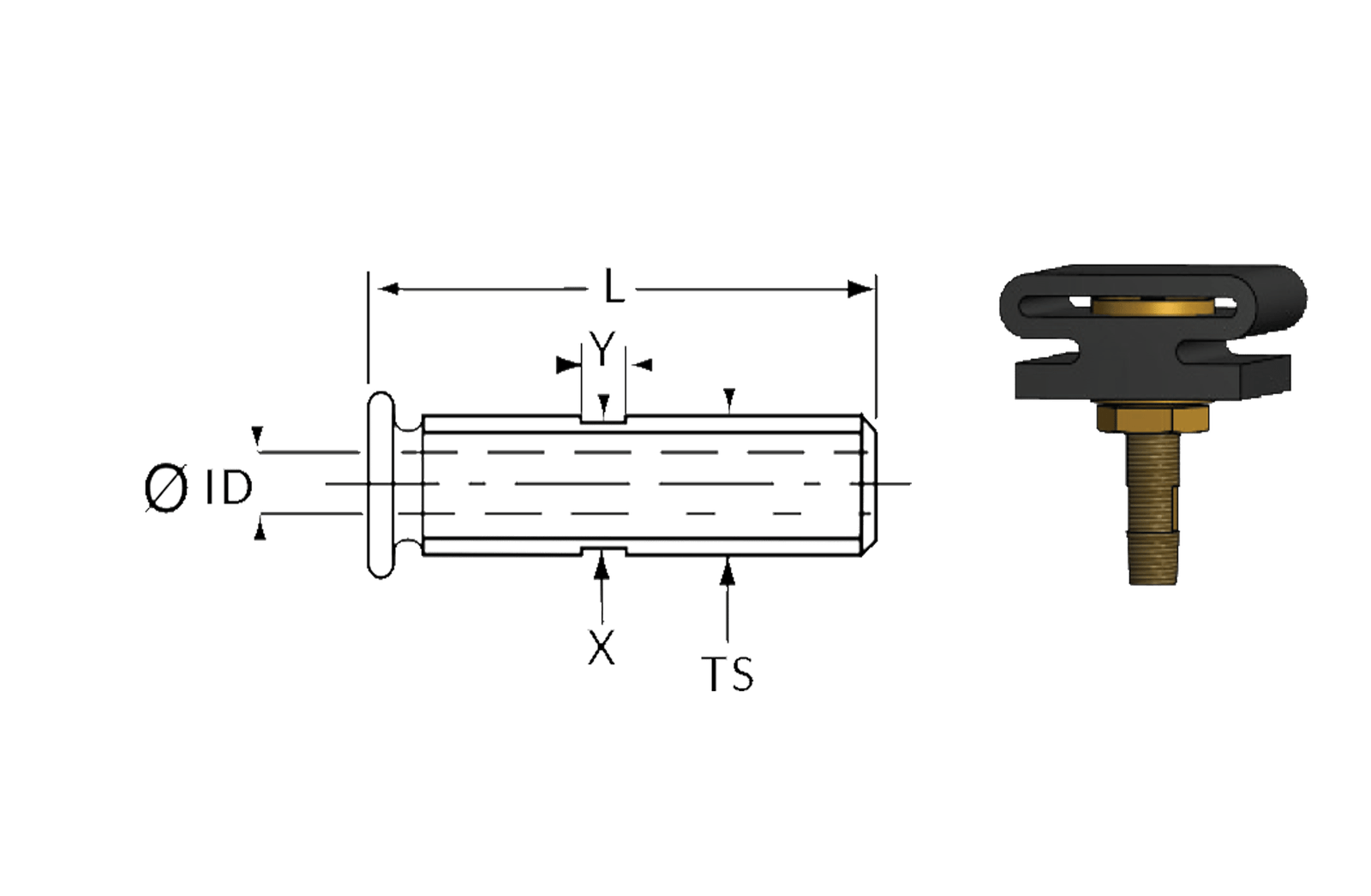

• AIV 2

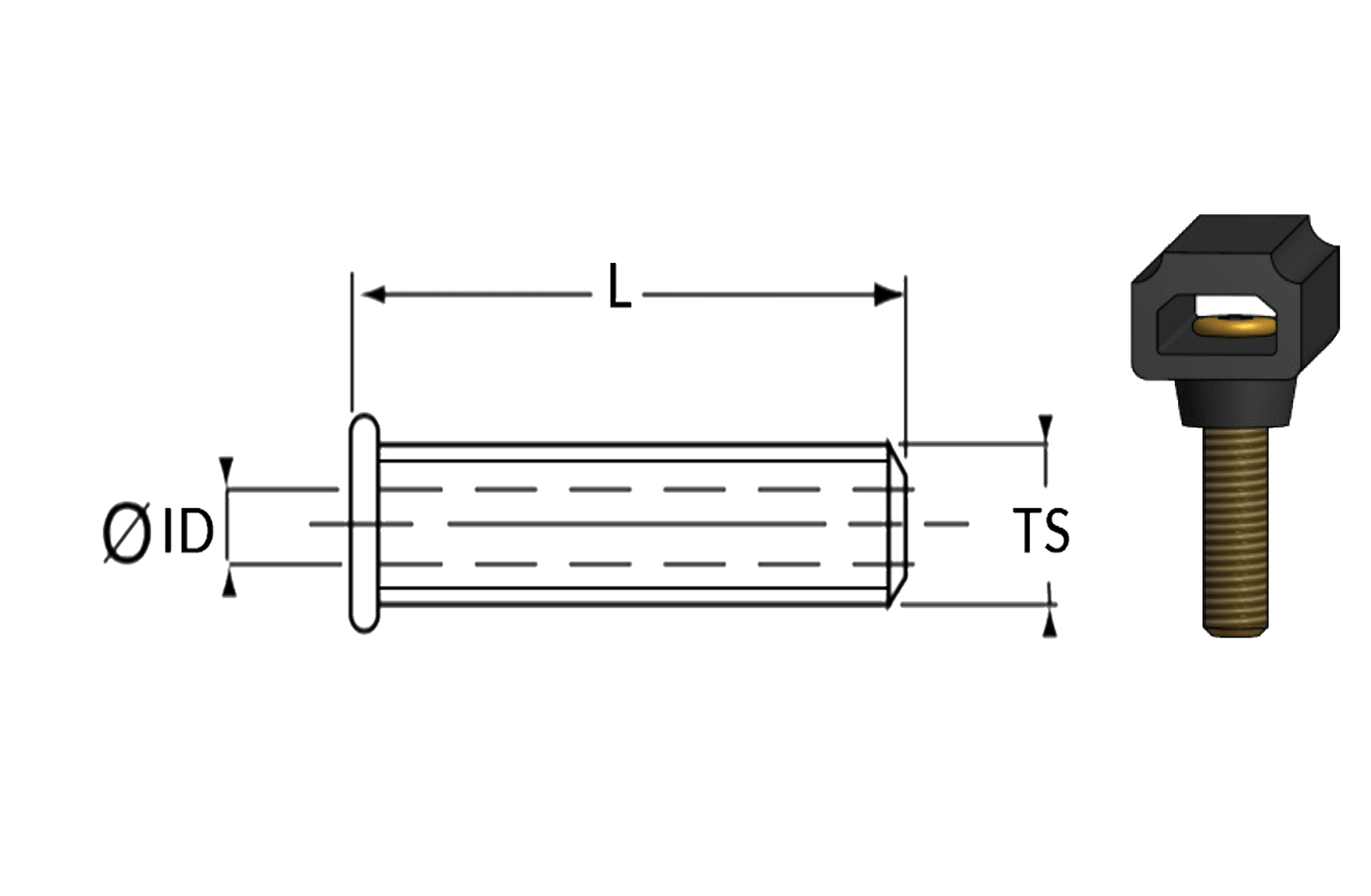

• AIV 3

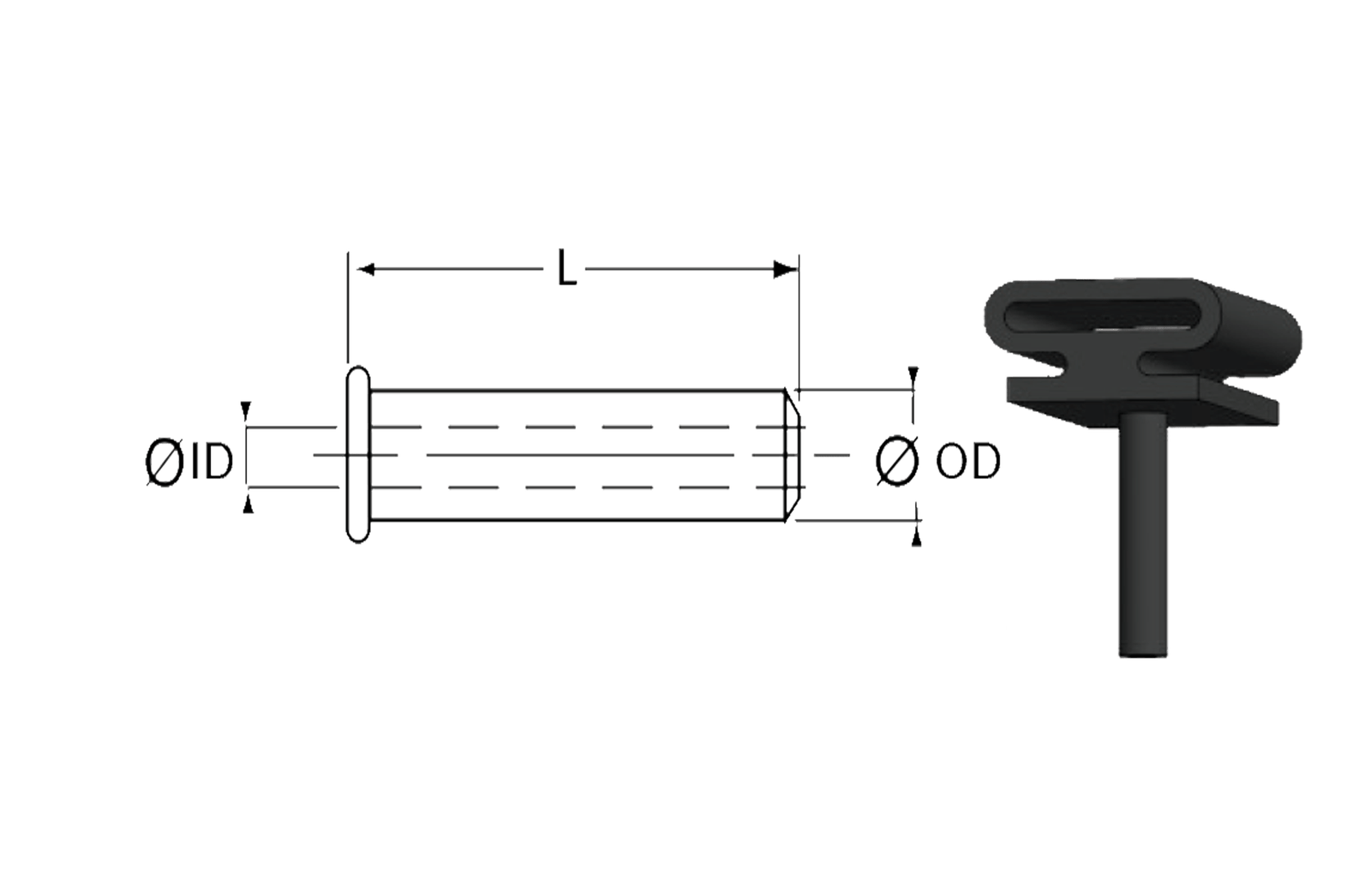

• AIV 4

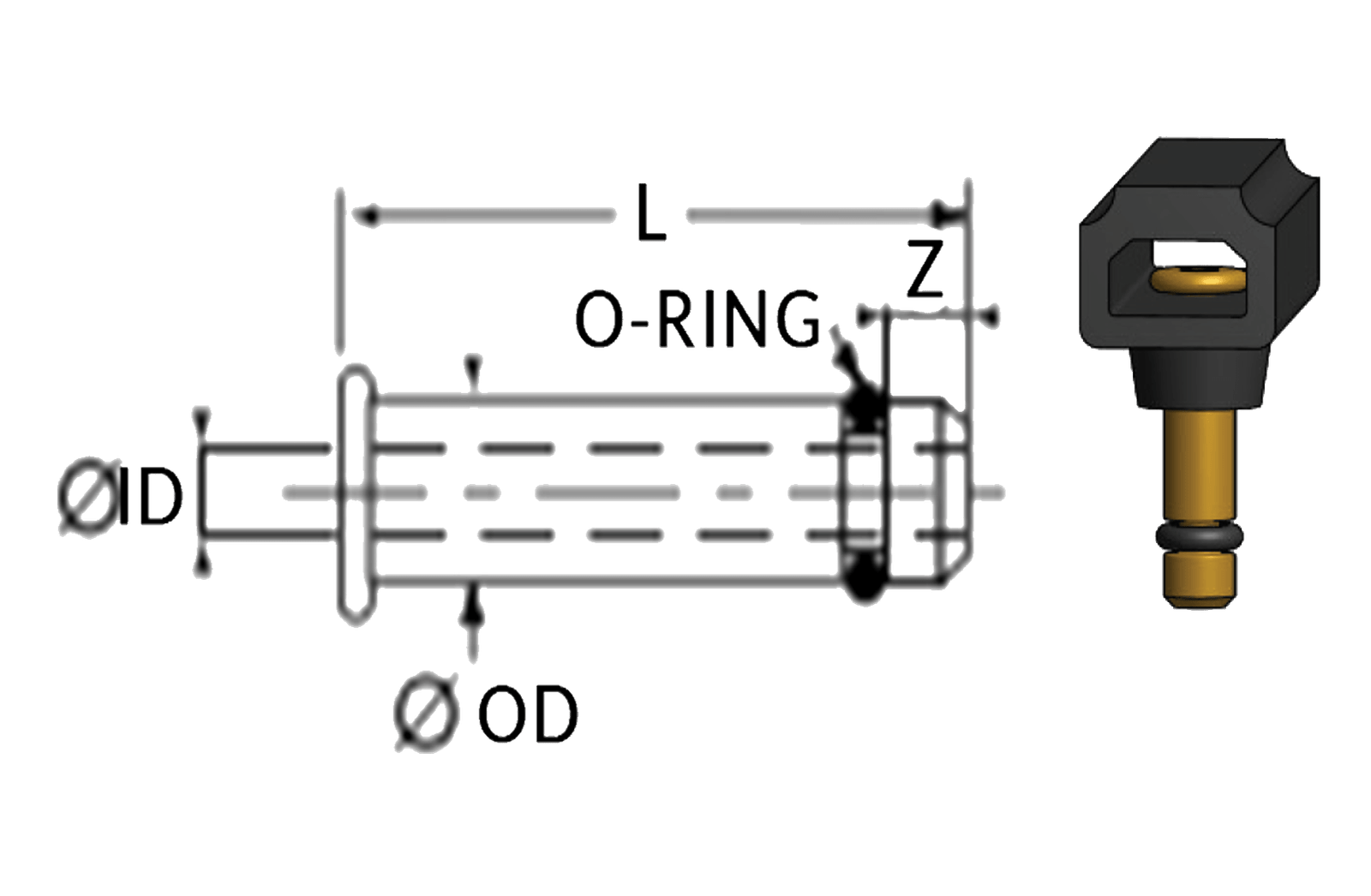

• AIV 5

All Dimensions are in mm

Section	OD	ID	Thread Size	Length	Z	X x Y
AIV 1A	4	1.5	M6	30/35/40/50	12	5×6
AIV 1B	6	3	M8	30/35/40/50/50	16	6×6
AIV 1C	8	5	M10	40/45/50/60/70/80	16	8×8
AIV 1D	10	6	M12	40/50/60/70/80/90	20	10×8
AIV 1E	12	6	M14	50/60/70/80/90/100	20	11×8

All Dimensions are in mm

Section	ID	Thread Size	Length	X x Y
AIV 2A	1.2	M4	15/20/25/30/35/40/50	3×4
AIV 2B	3	M6	15/20/25/30/35/40/50	5×6
AIV 2C	3	M8	15/20/25/30/35/40/50/60	6×8
AIV 2D	3	M10	20/25/30/35/40/50/60/70	8×8
AIV 2E	5	M12	20/25/30/35/40/50/60/70	10×8
AIV 2F	6	M14	30/35/40/50/60/70/80	11×8
AIV 2G	8	M16	40/50/60/70/80/90/100	13×10

All Dimensions are in mm

Section	Thread-Size	ID	Length
AIV 3A	M4	1.5	15/20/25/30/40
AIV 3B	M6	3.4	15/20/25/30/40/50
AIV 3C	M8	3.4	20/25/30/40/50
AIV 3D	M10	5.0	25/30/40/50/60
AIV 3E	M12	6.8	30/35/40/50/60/70
AIV 3F	M14	6.8	35/40/50/60/70/80
AIV 3G	M16	8.5	45/50/60/70/80/90

All Dimensions are in mm

Section	OD	ID	Length
AIV 4A	8	3	Minimum length of 200mm(in multiples of 100mm)
AIV 4B	12	6
AIV 4C	16	9

All Dimensions are in mm

Section	OD	ID	Z	Length
AIV 5A	4	1.0	2	15/20/25/30/40
AIV 5B	6	1.5	2	15/20/25/30/35/40/50
AIV 5C	8	2.0	4	15/20/25/30/35/40/50
AIV 5D	4	4.0	5	20/25/30/35/40/50/60
AIV 5E	6	5.0	5	25/30/35/40/45/50/60/70
AIV 5F	8	6.8	6	35/40/45/50/60/70/80
