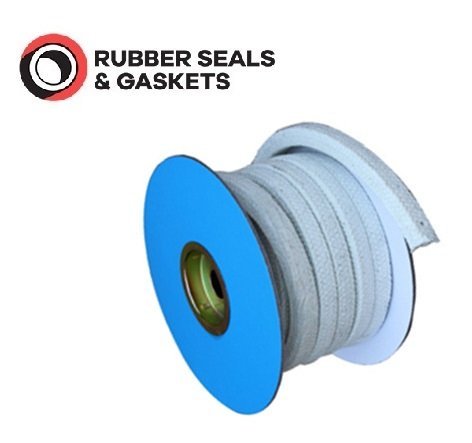

ARCYLIC FIBER PACKING WITH PTFE STYLE: BP35

ARCYLIC FIBER PACKING WITH PTFE STYLE: BP35

Braided from high strength arcylic synthetic fiber pre-impregnated with PTFE, and re-impregnated during square braiding. It has excellent properties of sealing, lubricating and resistance to chemicals.

=

Description

ARCYLIC FIBER PACKING WITH PTFE STYLE: BP35

Braided from high strength arcylic synthetic fiber pre-impregnated with PTFE, and re-impregnated during square braiding. It has excellent properties of sealing, lubricating and resistance to chemicals.

APPLICATION:

Excellent multi-service for a wide variety of uses throughout a plant. Used in pumps and valves, and can handle most chemicals except strong acid, strong alkali and strong oxidizer.Especially for the condition of middle temp. high-pressure,high-speed,and where contamination is not permitted.

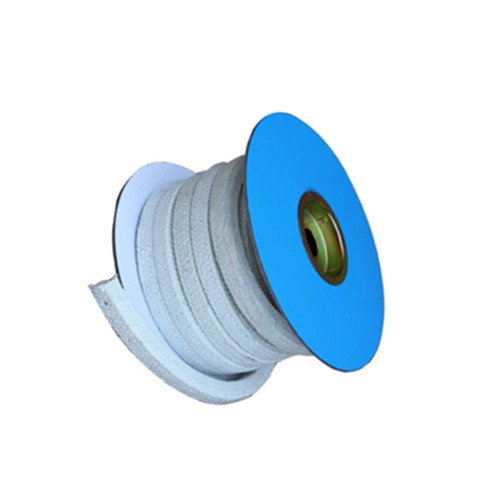

Arcylic Fiber Packing with PTFE

TECHNICAL PARAMETER:

Pressure:? ?Rotating?20 bar |?Reciprocating?100 bar |?Static?200,350 bar
Shaft speed:? ?12 m/s
Density:? ?1.4 g/cm3
Temperature:? ?-100~+260(310)??C
PH range:? ?1~13

PACKAGING:

Any sizes in coils of 5 to 10 kg, other weight on request.

Additional information

Treatment

Dry, Lubricate

Size of Packing

[12mm x 12mm], [4mm x 4mm], 1/2"[13mm x 13mm], 1/4"[6mm x 6mm], 1/8"[3mm x 3mm], 1"[25mm x 25mm], 3/16"[5mm x 5mm], 3/4"[19mm x 19mm], 3/8"[10mm x 10mm], 5/16"[8mm x 8mm], 5/8"[16mm x 16mm], 7/8"[22mm x 22mm], 9/16"[14mm x 14mm]

Order Quantity By

by individual foot, by individual lb, by individual meter, Standard Spool(10Kgs), Standard Spool(5Kgs)

Request a Quote
=
