ASBESTOS PACKING WITH PTFE STYLE: BP50

ASBESTOS PACKING WITH PTFE STYLE: BP50

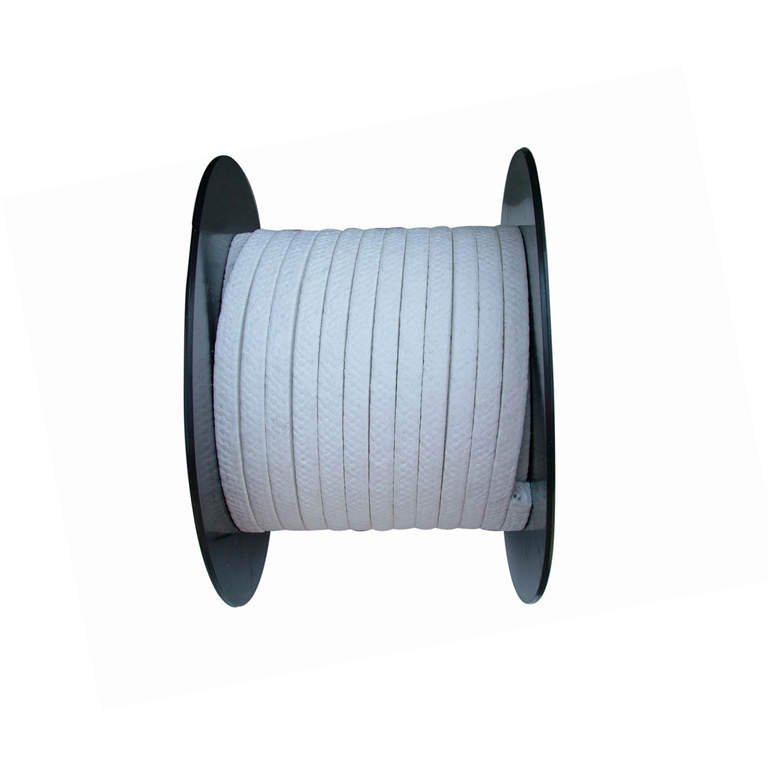

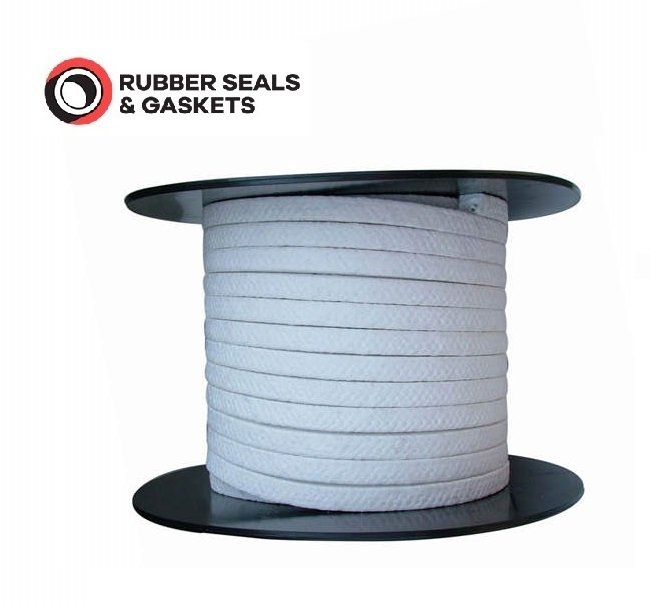

Braided from high quality asbestos fiber impregnated with PTFE. It has anti-corrosive and long service properties. Economic packing.

=

Description

Braided from high quality asbestos fiber impregnated with PTFE. It has anti-corrosive and long service properties. Economic packing.

Typical Application
Universal packing, especially suitable for a wide range of applications for large rotary pumps in the medium pressure range
Suited for chemical neutral and resistant to water, steam, hot air, oils, etc.

Prime Features

  • Low maintenance, easy to control.
  • Excellent capabilities of high strength and high temperature resistance
  • Economical packing



Asbestos Packing with PTFE Impregnation Technical Data
Pressure 2-10MPa
Rotary Pump 10bar
Reciprocating Pump 20bar
Valve 40bar
Temperature 260℃
PH Range 2-12
Linear speed 10m/s
Density 1.4~1.5g/cm3
Section Size 3*3mm–100*100mm
Package 5kgs or 10kgs per reel in a box/or as the requirement of the client



Additional information

Size of Packing

[12mm x 12mm], [4mm x 4mm], 1/2"[13mm x 13mm], 1/4"[6mm x 6mm], 1/8"[3mm x 3mm], 1"[25mm x 25mm], 3/16"[5mm x 5mm], 3/4"[19mm x 19mm], 3/8"[10mm x 10mm], 5/16"[8mm x 8mm], 5/8"[16mm x 16mm], 7/8"[22mm x 22mm], 9/16"[14mm x 14mm]
Order Quantity By

by individual foot, by individual lb, by individual meter, Standard Spool(10Kgs), Standard Spool(5Kgs)
