Description

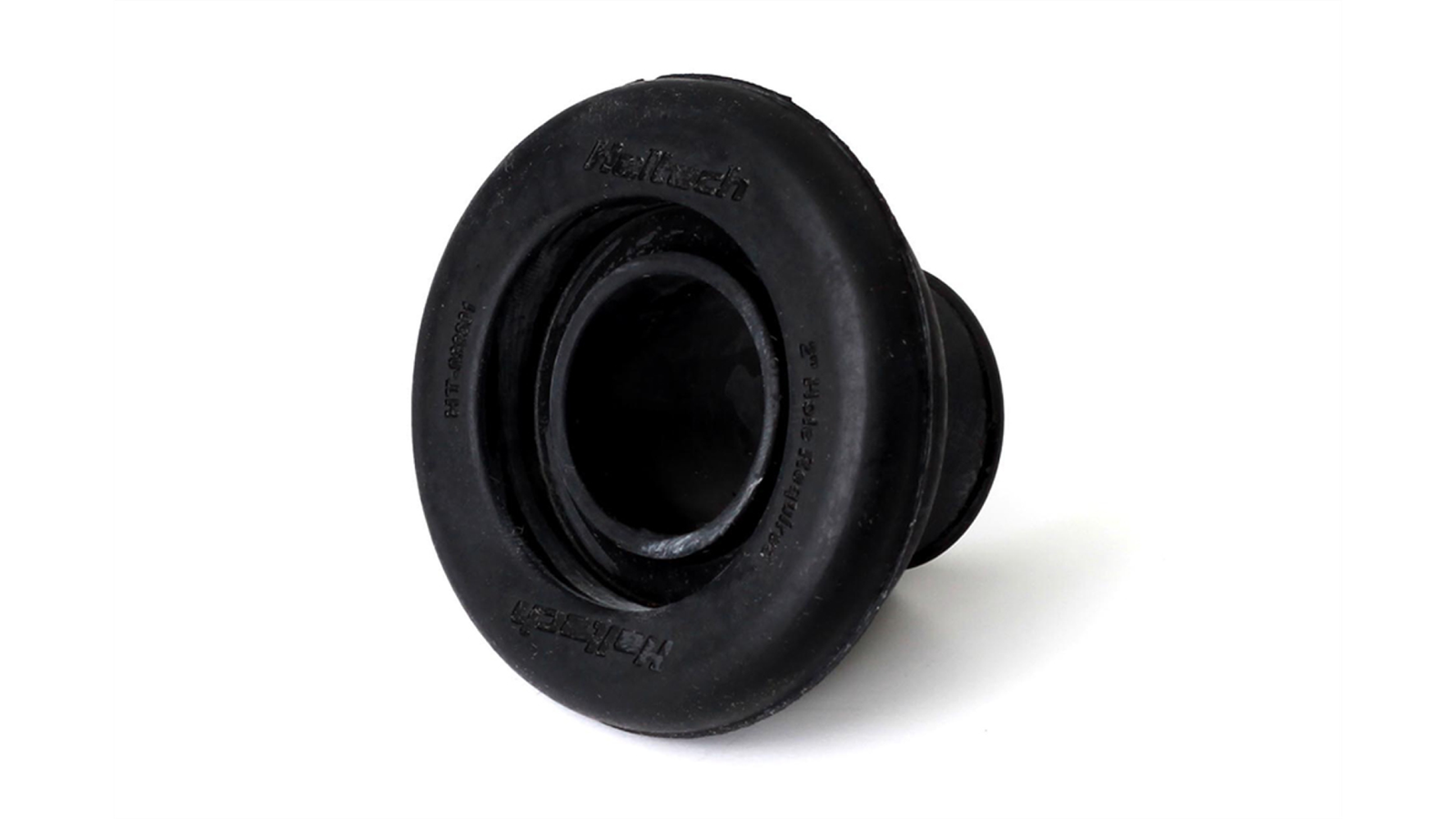

The firewall cable grommet stands as a pinnacle solution for ensuring optimal cable management and safety in environments where fire protection is paramount. Crafted with precision and fortified with cutting-edge materials, this component offers unparalleled durability, resilience, and protection for cables passing through firewall partitions.
Fire Resistance:
The firewall cable grommet is constructed from high-grade, fire-resistant materials that comply with stringent safety standards. This ensures that the grommet can withstand high temperatures and prevent the spread of fire through cable openings, significantly enhancing the safety of the installation.
Superior Durability:
Made from robust materials, this grommet offers excellent resistance to wear and tear. It maintains its integrity under harsh conditions, providing long-lasting protection for cables. Its resilience makes it suitable for environments where mechanical stress or environmental factors could compromise lesser materials.
Rubber Cone Grommet | ||||||
ITEM | A | B | C | D | E | |
K3*5 | 3 | 5 | 8.8 | 2 | 6.6 | |
K4*6 | 4 | 6 | 9.8 | 2 | 6.8 | |
K5*7 | 5 | 7 | 10.5 | 2 | 7 | |
K6*8 | 6 | 8 | 14 | 2.2 | 8 | |
K7*9 | 7 | 9 | 15 | 2.2 | 8 | |
K8*10 | 8 | 10 | 16 | 2.2 | 8 | |
K10*12 | 10 | 12 | 17 | 2.2 | 8.8 | |
K12*14 | 12 | 14 | 20 | 2.2 | 9.5 | |
K14*17 | 14 | 17 | 22 | 2.5 | 9.5 | |
K16*20 | 16 | 20 | 24 | 2.5 | 9.5 | |
K18*22 | 18 | 22 | 26 | 2.5 | 9.5 | |
K20*25 | 20 | 25 | 30 | 2.8 | 10 | |
K23*28 | 23 | 28 | 32 | 2.8 | 10 | |
K25*30 | 25 | 30 | 37 | 3 | 10.5 | |
K30*35 | 30 | 35 | 43 | 3 | 10.5 | |
K35*40 | 35 | 40 | 54 | 3 | 13.5 | |
K40*50 | 40 | 50 | 57 | 4 | 14 | |

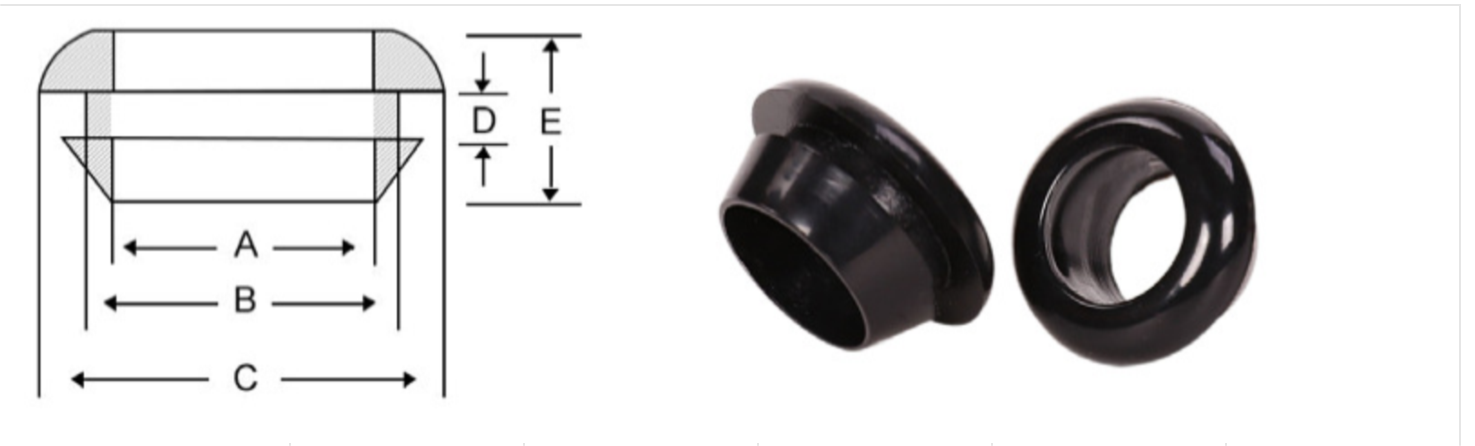

A=inner diameter B=opening hole C=outside diameter D=pannel thick E=total thickness |
