Description

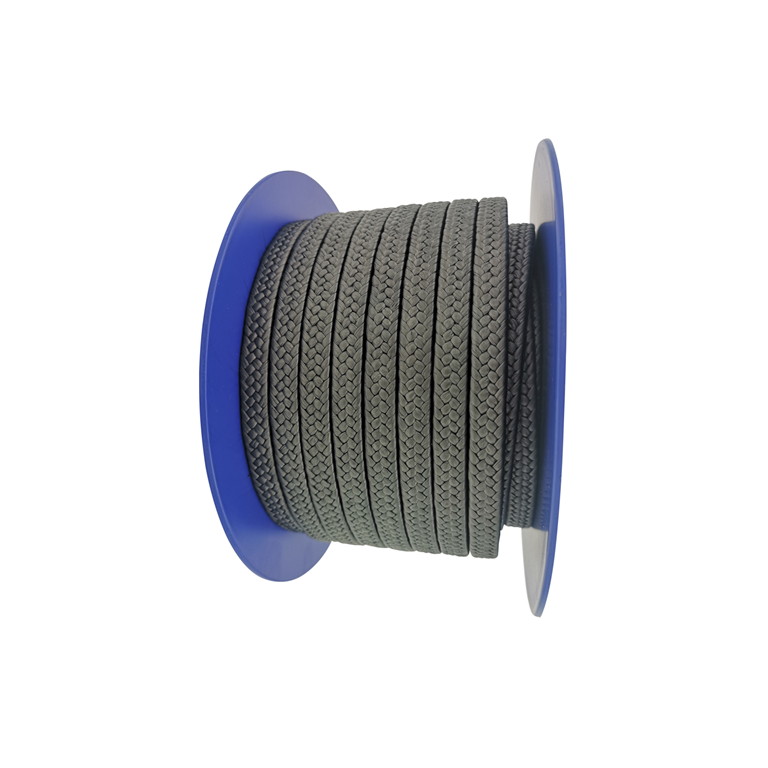

Graphited PTFE Gland Packing are braided from yarns manufactured from a high-end fiber. This fiber is a single molecular combination of PTFE & high grade anti-frictional Graphite. The intimately bonded Graphite offers enhance heat conduction, helping to reduce friction. The graphite mix also provides excellent lubrication and resistance to hardening unlike the conventional packings.
Graphited PTFE Fiber Packing is a duplex braided packing made from soft Expanded PTFE Graphited yarn. It is a homogeneous fiber, developed especially for compression packings with heat transfer & lubricant components forming an integral part of the yarn. It is inert to most chemicals & is dense, resilient and durable, thus limiting shaft wear during operation.
Service Media & Applications: Suitable for use in pumps, mixers, agitators, washers & valves handling acids, alkali, boiler feed water, bleached water, non-abrasive liquor & aggressive chemicals.

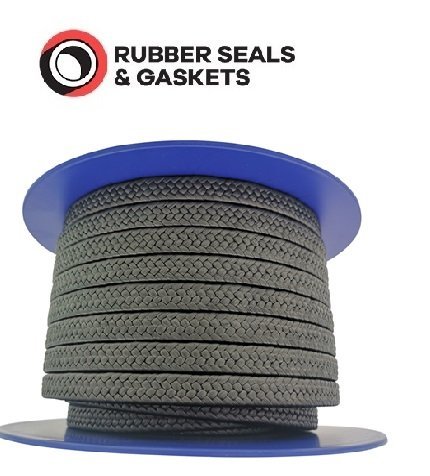

STYLE BP22 GRAPHITED PTFE PACKING WITHOUT OIL
STYLE BP23 GRAPHITED PTFE PACKING WITH OIL
