GRAPHITED RAMIE PACKING BP44

Home>GLAND PACKING>Vegetable Fiber Packing>GRAPHITED RAMIE PACKING BP44

GRAPHITED RAMIE PACKING BP44

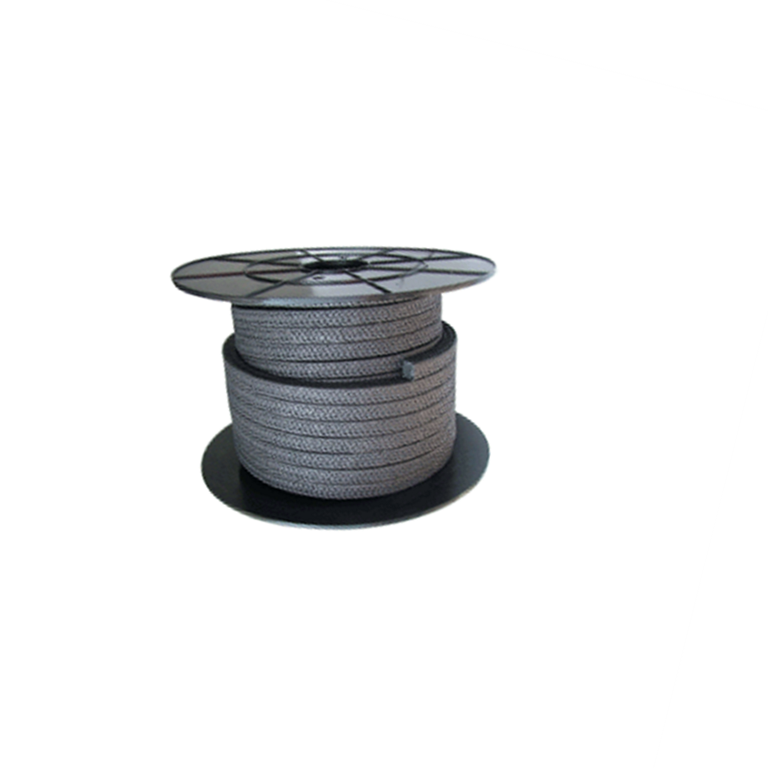

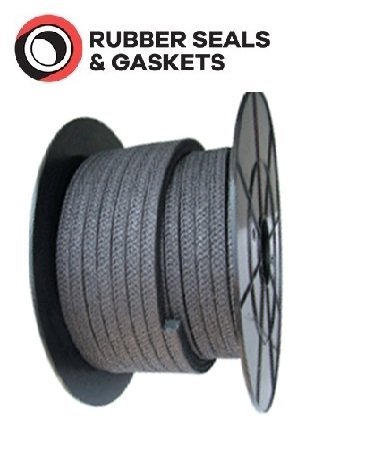

Ramie Packing with graphite & oil impregnation, Square braided construction, graphite coated and mineral oil lubricated throughout.
=

Description

Ramie Packing with graphite & oil impregnation, Square braided construction, graphite coated and mineral oil lubricated throughout.

APPLICATION:

A medium hard packing which is lubricated and graphited throughout. Extremely low frictional characteristics where minimum shaft wear is essential. Rot resistant and ideal for marine use, handling cold water, brine and cold oils.

Ramie Packing with graphite and oil impregnation

TECHNICAL PARAMETER:

Density: 1.25g/cm3
PH range: 6~8
Maximum Temperature: 100 °C
Pressure: Rotating 15 bar | Reciprocating 15 bar | Static 20 bar
Shaft speed: 6 m/s

PACKAGING:

Any sizes in coils of 5 or 10 kg, other package on request

Additional information

Treatment

Dry, Lubricant
Size of Packing

[12mm x 12mm], [4mm x 4mm], 1/2"[13mm x 13mm], 1/4"[6mm x 6mm], 1/8"[3mm x 3mm], 1"[25mm x 25mm], 3/16"[5mm x 5mm], 3/4"[19mm x 19mm], 3/8"[10mm x 10mm], 5/16"[8mm x 8mm], 5/8"[16mm x 16mm], 7/8"[22mm x 22mm], 9/16"[14mm x 14mm]
Order Quantity By

by individual foot, by individual lb, by individual meter, Standard Spool(10Kgs), Standard Spool(5Kgs
