Description

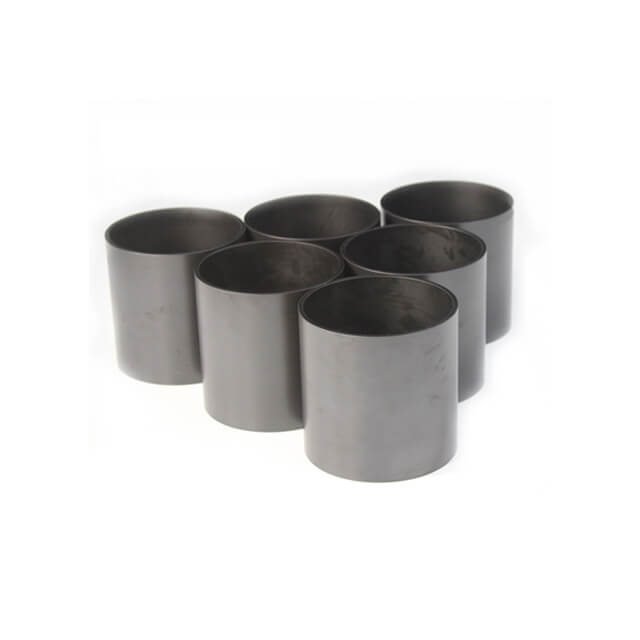

PEEK Bearing Grade, PEEK HPV

Is enhanced with 10% Carbon, 10% Graphite, and 10% PTFE fillers to improve the wear performance of the PEEK material. Bearing grade PEEK has an excellent combination of low friction, low wear, high limiting PV, low mating part wear, and easy machining. Bearing grade PEEK is widely used for Bearings, Bushings, Pump wear rings, Seals, Thrust washers, valve seats…

PolyEtherEtherKetone (PEEK)

Maintains wear resistance and mechanical strength up to 260℃ continuous use.

PEEK is the performance material of choice for aggressive environments such as high temperatures, wet processes, and heavy loads. It combines exceptional wear, chemical and moisture resistance with very high strength, dimensional stability and stiffness. PEEK can be continuously exposed to hot water or steam with no distortion, corrosion or galling.

Unreinforced PEEK is a general purpose material noted for its high elongation and toughness. Glass fiber-reinforced PEEK offers increased strength, stiffness and stability at high temperatures, while carbon fiber-reinforced PEEK gives designers the benefit of excellent compression strength and stiffness and reduced expansion rates. PEEK is easily machined to precise tolerances.
