KEVLAR/ARAMID FIBER PACKING

KEVLAR/ARAMID FIBER PACKING

Graphited PTFE Packing Braided from graphited PTFE plain yarn. The packing is soft, with low density There are no free particles of graphite on surface and therefore no contamination can occur. APPLICATION: For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.
=

Description

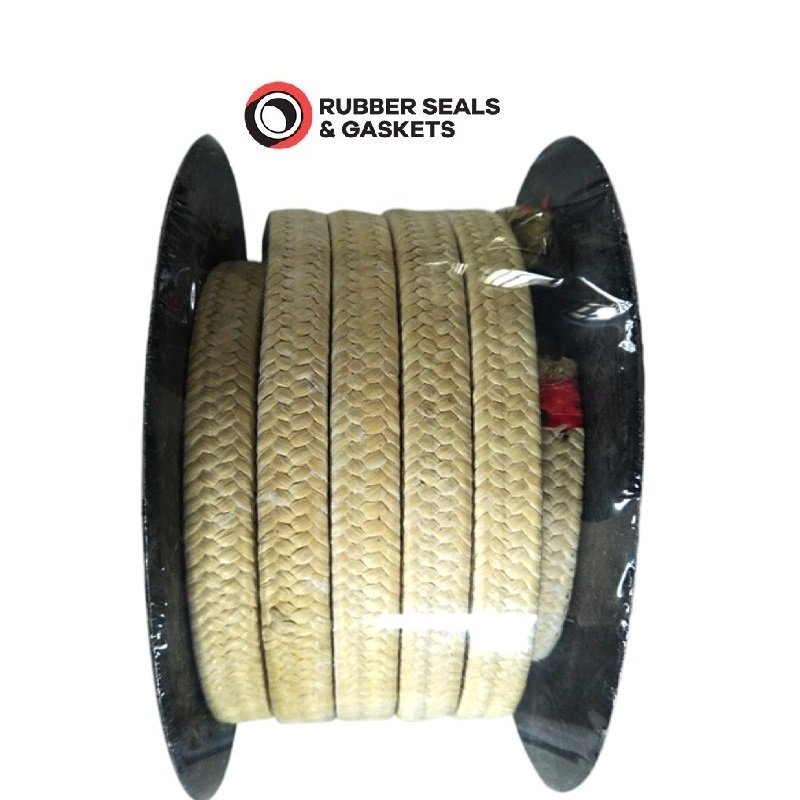

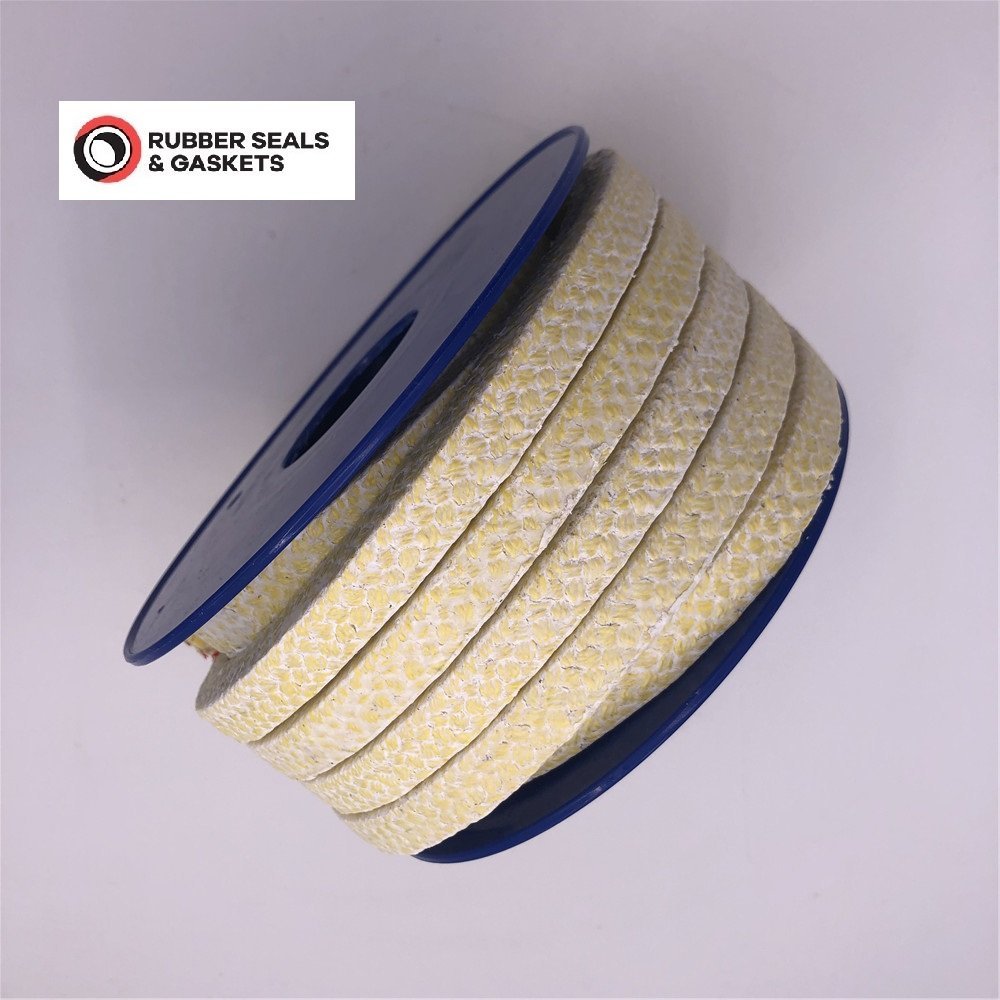

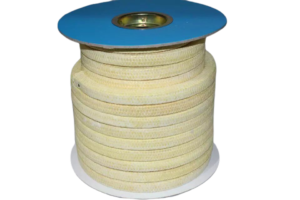

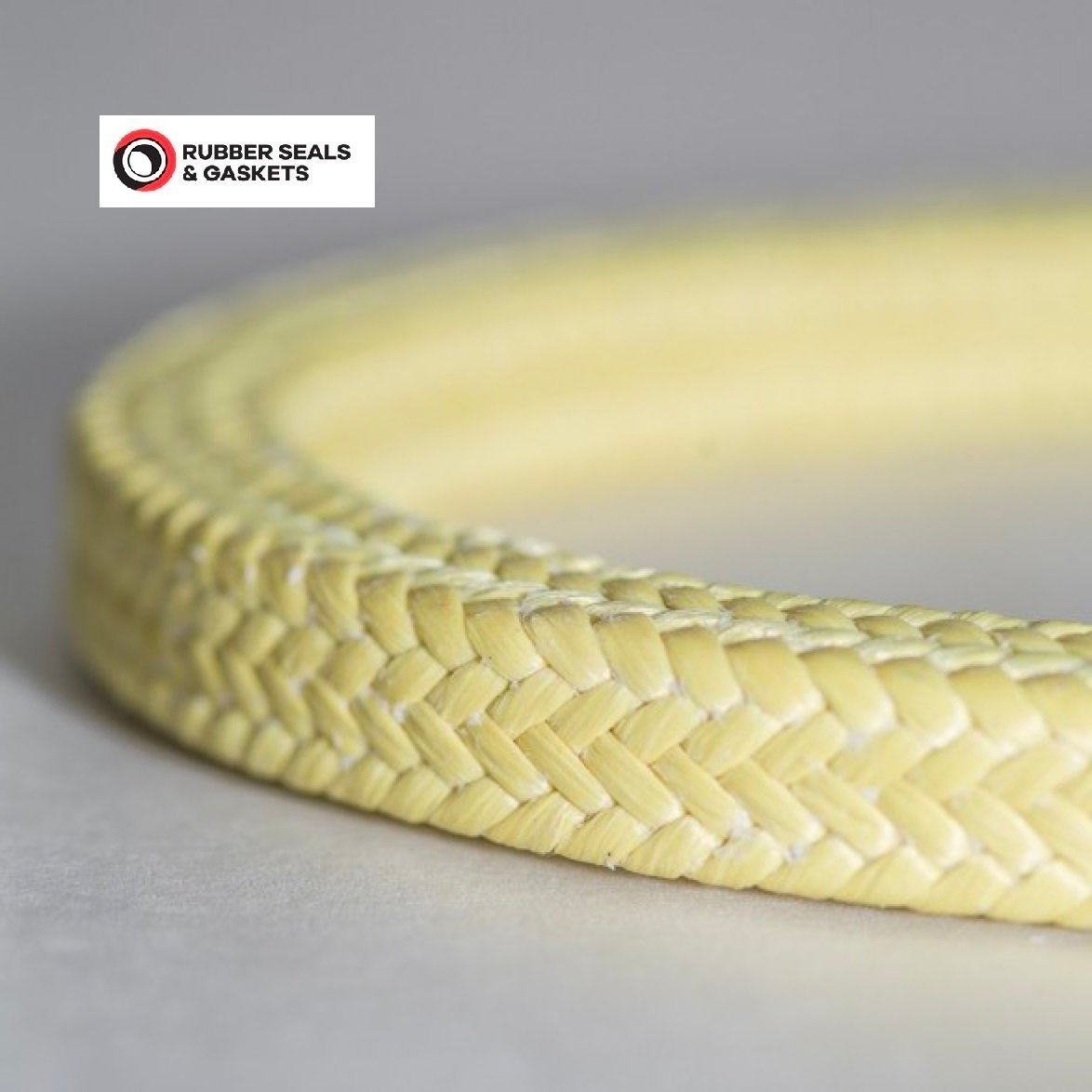

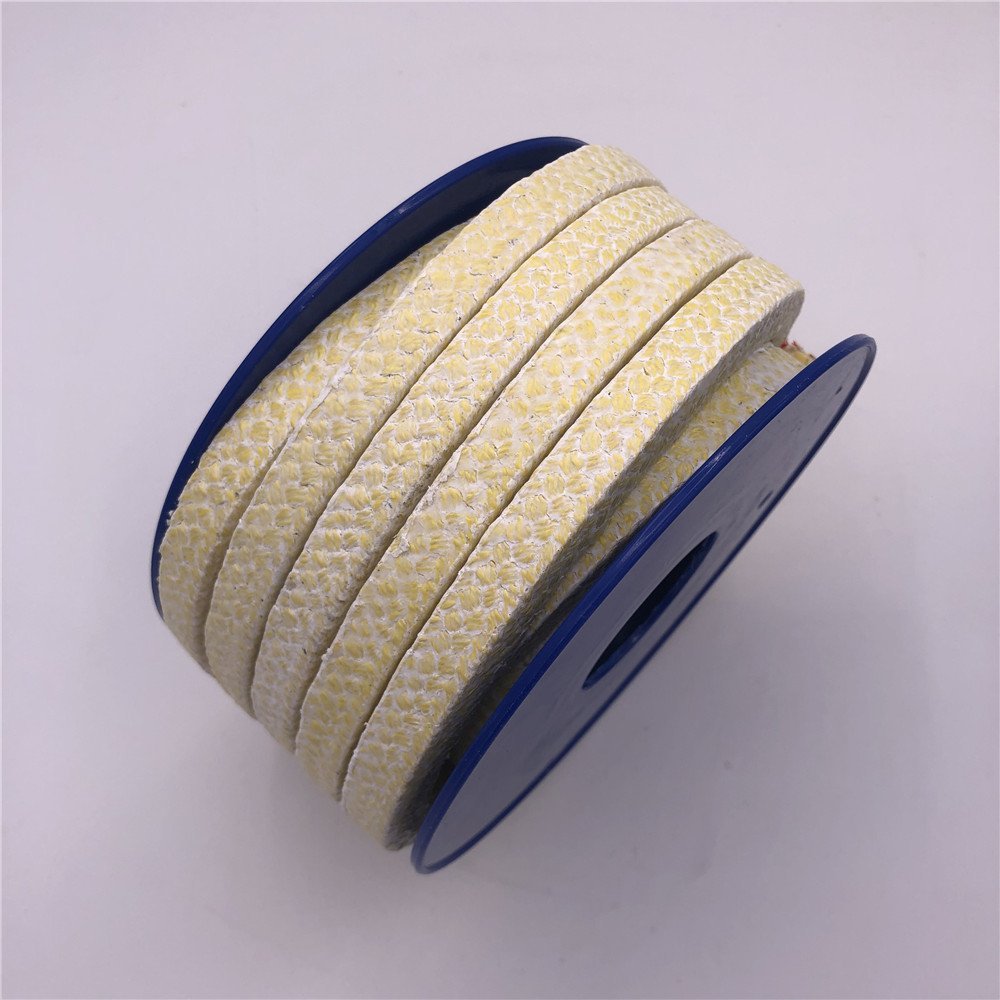

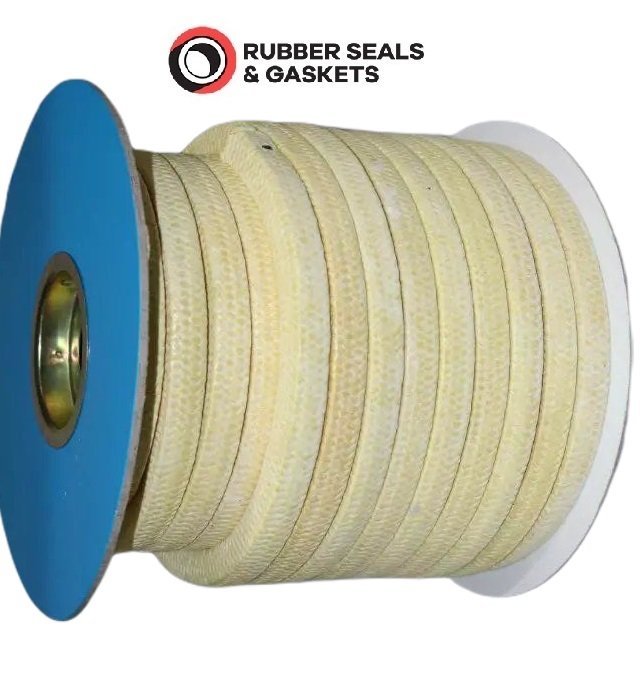

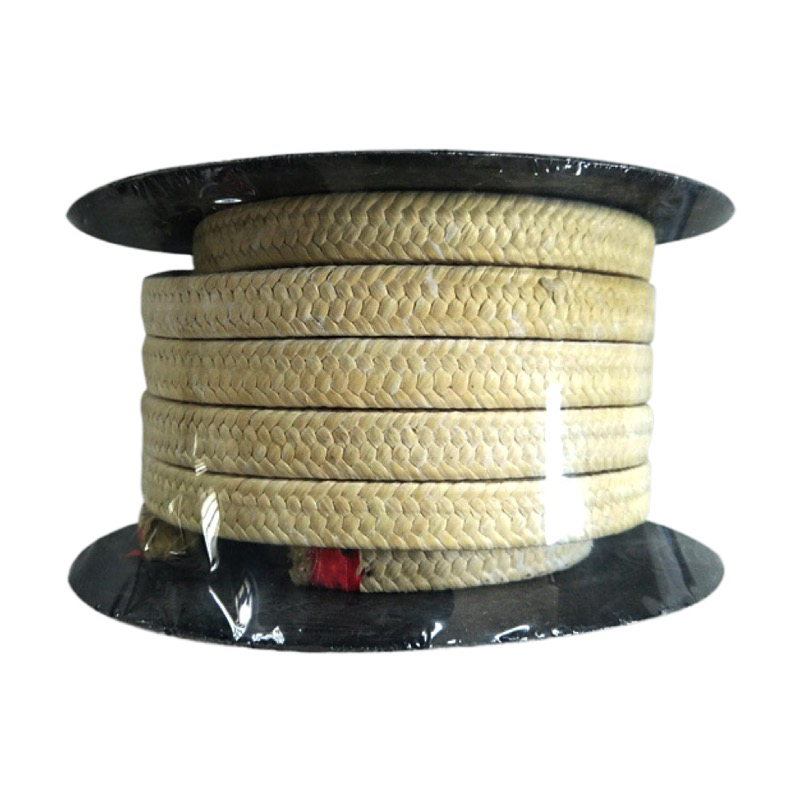

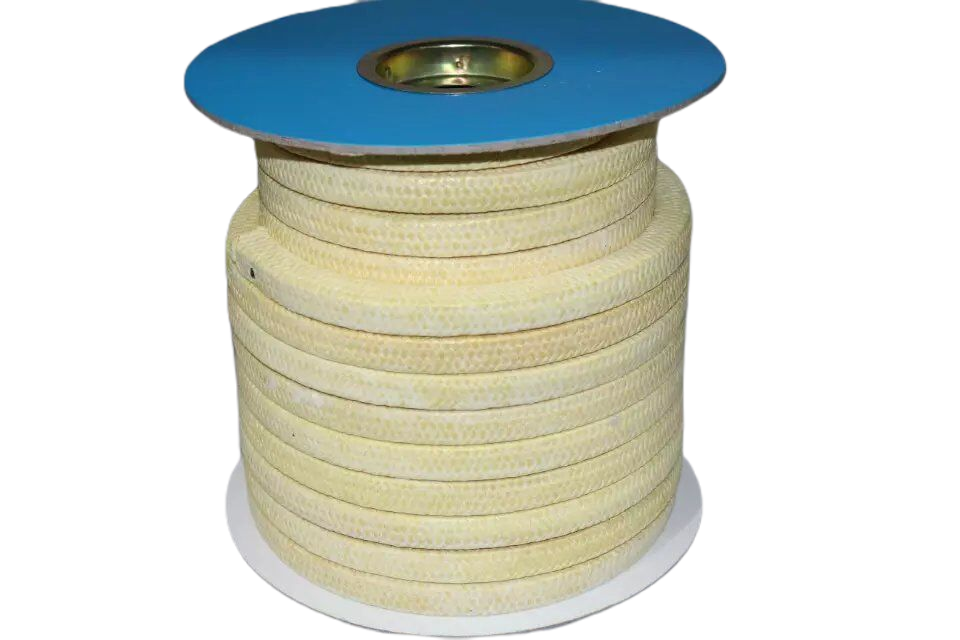

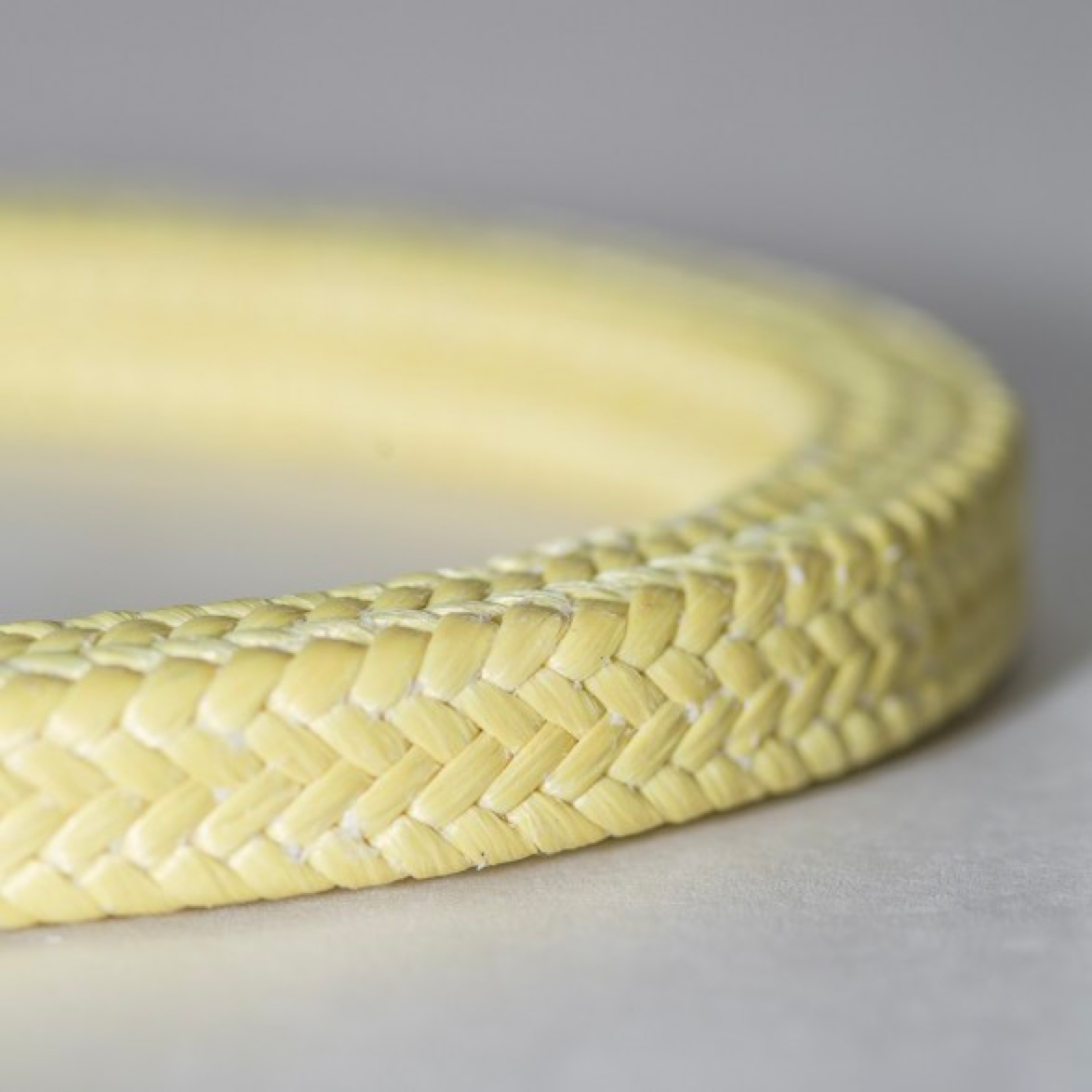

Kevlar/Aramid Fiber Packing is braided from high quality Dupont Aramid/Kevlar fiber with PTFE Impregnation and lubricant additive. Extremely hard wearing. It shows good chemical resistance, high elasticity and very low cold flow. It is wear resistant but may damage the shaft if not used properly. A minimum shaft hardness of 60HRC is therefore recommended. Compared with other kinds of packing, it can resist more severe media and higher pressure. The packing is also lubricated with a silicone-based compound for quick and easy break-in.

APPLICATION:

It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. It is also a durable packing able to withstand granular and abrasive applications, it is recommended for serve in superheated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids.
For hot water applications it can be used un-cooled up to 160??C.
It can be used as stand-alone packing also combined with others as anti-extrusion ring.

Additional information

Treatment

Dry, Lubricate

Size

1/8"[3mmx3mm], 3/16"[5mmx5mm], 1/4"[6mmx6mm], 5/16"[8mmx8mm], 3/8"[9.5mmx9.5mm], 7/16"[11mmx11mm], 1/2"[13mmx13mm], 9/16"[14mmx14mm], 5/8"[16mmx16mm], 3/4"[19mmx19mm], 7/8"[22mmx22mm], 1"[25mmx25mm]

Order Quantity By

Standard Spool(5Kgs), Standard Spool(10Kgs), by individual Kg, by individual lb, by individual meter
