Description
PEEK is a thermoplastic polymer.
It is a biocompatible material with high tensile strength, heat resistance, and hardness, while also the anti-fatigue performance of PEEK material is the best among all current materials.

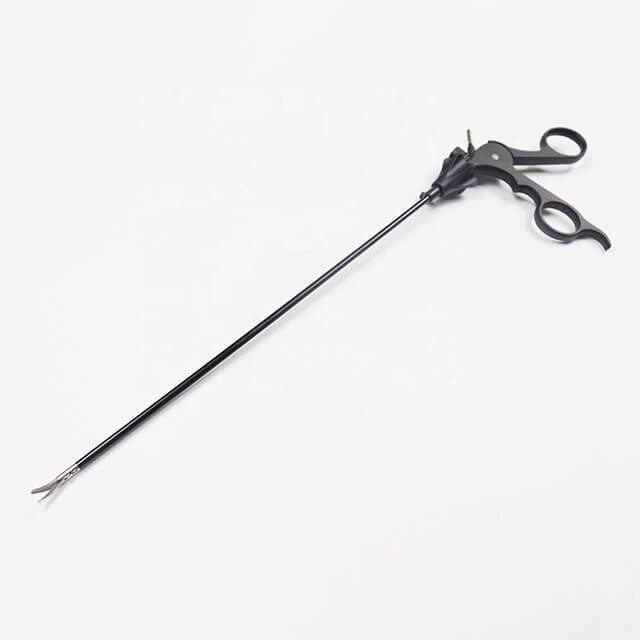

These excellent properties make it an ideal choice for laparoscopic instruments.

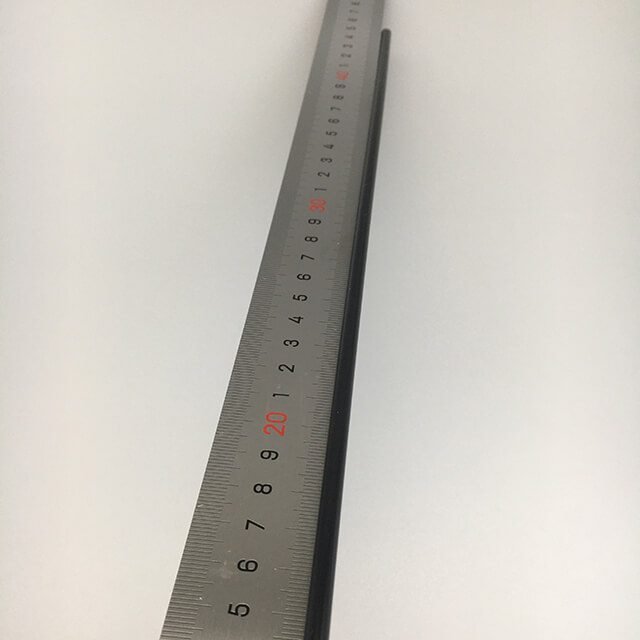

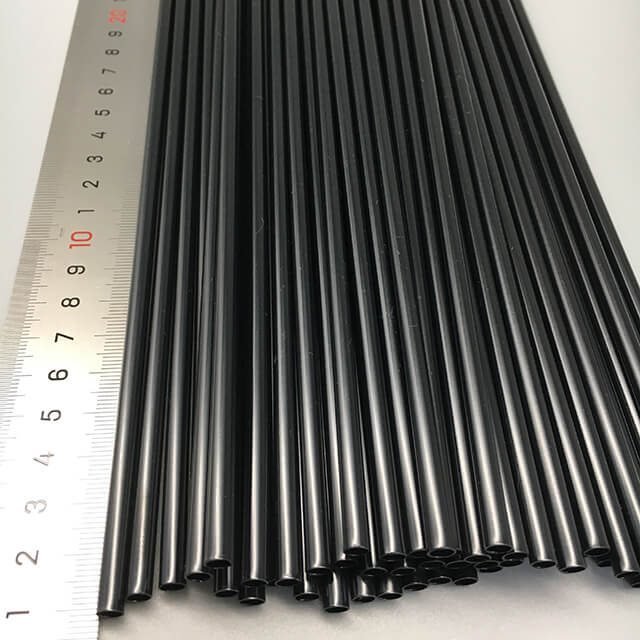

PEEK Insulated Tube for Laparoscopic Instruments
Material: PEEK Black
Standard Size: OD Φ5mm, Φ10mm or Customized L 330mm, 450mm or Customized
| PEEK Tube Biocompatibility testing | |||
| ISO10993-5:2009 | In Vitro Cytotoxicity Test | MTT Method MEM with 10% FBS extract | OK |
| ISO10993-10:2010 | Skin Sensitization Test | Guinea Pig Maximization Test 0.9% Sodium Chloride Injection Extract |
OK |
| ISO10993-10:2010 | Skin Sensitization Test | Guinea Pig Maximization Test Sesame oil Extract |
OK |
| ISO10993-10:2010 | Skin Irritation Test | 0.9% Sodium Chloride Injection Extract | OK |
| ISO10993-10:2010 | Skin Irritation Test | Sesame oil Extract | OK |
Bioinert
– PEEK is a true biomaterial, and multiple studies have shown that the polymer is not cytotoxic, genotoxic, or immunogenic.
Compatibility with conventional instrument sterilization methods
– PEEK offers complete compatibility with standard sterilization approaches, including autoclave (or steam), gamma radiation and EtO sterilization.
The performance of Diyak PEEK Insulated Tube at high temperature
– Straightness defomation
– Diameter defomation
| ID & Temperature | |||||||
| Sample | Initial value (mm) |
180℃ | 190℃ | 200℃ | 220℃ | 240℃ | Rate of change |
| A | 4.21 | 4.19 | 4.17 | 4.15 | 4.14 | 4.14 | 1.66% |
| B | 4.16 | 4.16 | 4.16 | 4.16 | 4.16 | 4.16 | 0% |
| Diyak | 4.06 | 4.06 | 4.06 | 4.06 | 4.06 | 4.06 | 0% |
