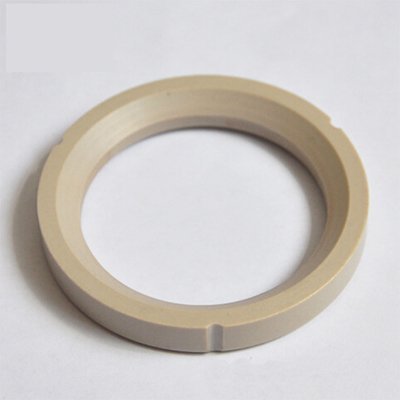

PEEK Valve Seat

PEEK Valve Seat

Properties

  • Superior wear resistance and dimensional stability to 260℃ continuous use
  • Excellent resistance to chemicals, steam and hydrolysis
  • Very low moisture absorption
  • Very high thermal stability (V-O UL 94 rating)
  • Superb flexural and torsional strength
  • Abrasion resistant
  • Good dielectric properties
  • Good resistance to radiation
  • Self-extinguishing
=

Description

PEEK tube pipe is highly resistant to thermal degradation and attack by both organic and aqueous media. It resists creep and retains dimensional stability at high temperatures and pressures, making it ideal for use in seal backup.

Our PEEK sealing materials for rotary, reciprocating, and static applications are formulated to provide optimal performance and service life in your designs. Our offering ranges from virgin PEEK to precision blends that leverage the additive properties of carbon fiber, glass fiber, PTFE, and other fillers to meet specific temperature pressure, speed, and wear requirements.

Diyak Ltd. offer extruded PEEK round bar/rod and tube stock, and also a wide range of moulded PEEK tube pipe in sizes up to 1000mm+ in diameter.

We also can produce finished PEEK parts according to your requirements. Such as valve seat insert, seat ring for Trunnion Mounted Ball Valve, Slab Gate Valve, Expanding gate valve, Floating Ball valve…

The Basics of Ball Valve Seat and Seat Insert Materials

Ball valves play a critical role in controlling the flow of fluid and pressure within a pipeline, but their effectiveness and safety is only as good as the seat insert material used.

Ball Valves

Whether found in a petrochemical application where a leak could be environmentally devastating, or in a pharmaceutical laboratory where cleanliness and sanitation are critical, ball valve seats must be reliable and robust. A ball valve consists of the body of the valve, the body cap, the stem, the hollow ball, and the round ball valve seat.

The ball valve seat is responsible for sealing the fluid inside and uniformly distributing the seating stress. In soft seat ball valve designs, either an elastomer or polymer is used as the seal and are inserted into a metallic seat ring. This approach, as opposed to hard seat ball valves, is popular because it provides good sealing action, is lighter weight, and more cost effective.

PEEK Seals are among the most robust polymer seals available. PEEK exhibits extremely high tensile properties and low deformation under load. As a result, PEEK machined seals are very stable over an extended period of time, even in environments where pressure, temperatures, and chemicals place loads on the material

VALVE SEAT and seat insert MATERIAL SELECTION

Diyak Ltd. provide most suitable valve seat material solutions to your application.

Material Main Properties Notes/Applications Temperature Range
Virgin Natural PEEK Excellent chemical resistance and mechanical properties at elevated temperatures. Unreinforced PEEK is a general purpose material noted for its high elongation and toughness. valve seats, seat inserts, back-up rings, sealings -40℃ to 260℃
Carbon fiber filled PEEK Offers increased strength, stiffness, and stability at high temperatures. Good wear resistance and thermal conductivity. Bearings, bushings, seals, thrust washers, valve plates -40℃ to 260℃
Glass fiber filled PEEK Gives designers the benefit of excellent compression strength and stiffness and reduced expansion rates. Excellent chemical resistance Suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions. -40℃ to 260℃
Bearing Grage PEEK Excellent combination of low friction, low wear, high limiting PV, low mating part wear, and easy machining Bearings, bushings, pump wear rings, seals, Thrust washers… -40℃ to 260℃
PTFE filled PEEK Higher lubricity than Virgin PEEK. It also has a low tendency to abrade counter surfaces, even when parts are subjected to temperatures between 100°C and 260°C. Suited to sealing applications where start-stop or rotary motions are involved at higher RPMs -40℃ to 260℃

PolyEtherEtherKetone (PEEK)

Maintains wear resistance and mechanical strength up to 260℃ continuous use.

PEEK is the performance material of choice for aggressive environments such as high temperatures, wet processes, and heavy loads. It combines exceptional wear, chemical and moisture resistance with very high strength, dimensional stability and stiffness. PEEK can be continuously exposed to hot water or steam with no distortion, corrosion or galling.

Unreinforced PEEK is a general purpose material noted for its high elongation and toughness. Glass fiber-reinforced PEEK offers increased strength, stiffness and stability at high temperatures, while carbon fiber-reinforced PEEK gives designers the benefit of excellent compression strength and stiffness and reduced expansion rates. PEEK is easily machined to precise tolerances.

Applications Industries
Sliding and wear parts

Food contact parts

Gears

Valve seats

Pump wear parts

Structural parts

Appliance parts

Bushings, bearings, seals and rings

Plug connectors

Wafer carriers

Chemical technology

Mechanical engineering

Energy industry

Electronics

Food technology

Oil and gas industry

Aircraft and aerospace technology

Automotive industry

Semiconductor technology

Vacuum technology

Material Data Sheet

PEEK (polyetheretherketone) is a high-performance engineering plastic with outstanding resistance to harsh chemicals, and excellent mechanical strength and dimensional stability.

Item Test Standard or Instrument Unit PEEK-N PEEK-GF30 PEEK-CF30 PEEK-HPV
Physical Properties
Color Natural or Black Natural or Black Black Black
Density ISO 1183-1 g/cm3 1.3±0.01 1.5±0.01 1.4±0.01 1.43±0.01
Water Abs. (25℃.24Hrs) ISO 62 % 0.5 0.11 0.06 0.06
Mould shrinking percentage 3mm,170℃, Flow direction % 1.2 0.4 0.1 0.3
Perpendicular to flow direction % 1.5 0.8 0.5 0.5
Thermal Properties
Melting point ISO 11357 343 343 343 343
Distortion temperature ISO 75-1/-2 163 315 315 293
Continuous using temperature UL 74685 260 260 260 260
Glass transition temperature ISO 11357 143
Machanical Properties
Tensile strength(23℃) ISO527-2/1B/50 Mpa 100 155 220 134
Tensile elongation(23℃) ISO527-2/1B/50 % 34 2 1.8 2.2
Bending strength(23℃) ISO 178 Mpa 163 212 298 186
Compressive strength(23℃) ISO 604 Mpa 118 215 240 150
Lzod impact strength( no gap) ISO 180/U KJm-2 No crack 51 46 32
Rockwell hardness ISO 2039-2 99 103 107 102
Friction coefficient μ 0.30-0.38 0.38-0.46 0.28 0.18
Electrical Properties
Dielectric strength IEC 60243-1 KV/mm 18 19
Dielectric constant IEC 60250 3.2 3.3
 Surface resistivity IEC 90093 Ω 1015Ω 1015Ω 3×106Ω 5×106Ω
Miscellaneous Data
Flammable level UL 94 V-0@mm 1.5 1.5 1.5 0.75
NOTE: *The data stated above are typical values intended for reference and comparison purposes only. *The data should not be used as a basis for design specifications or quality control. *The information is provided as a guide to the best of our knowledge and given without obligation or liability. *Testing under individual application circumstances is recommended.
* PEEK-N, Natural (Unfilled) PEEK
* PEEK-GF30, 30% Glass Filled PEEK
* PEEK-CF30, 30% Carbon Filled PEEK
* PEEK-HPV,  10% Carbon + 10% Graphite + 10% PTFE filled PEEK
