Description
Slot Fit Seals are preferred in heavy duty lifting or gripping applications. This profile offers higher seal life, hence is widely seen in uses where inflation and deflation cycles are very high. These Inflatable seals can withstand higher pressures compared to other non-reinforced Inflatable seals due to their rigid walls.

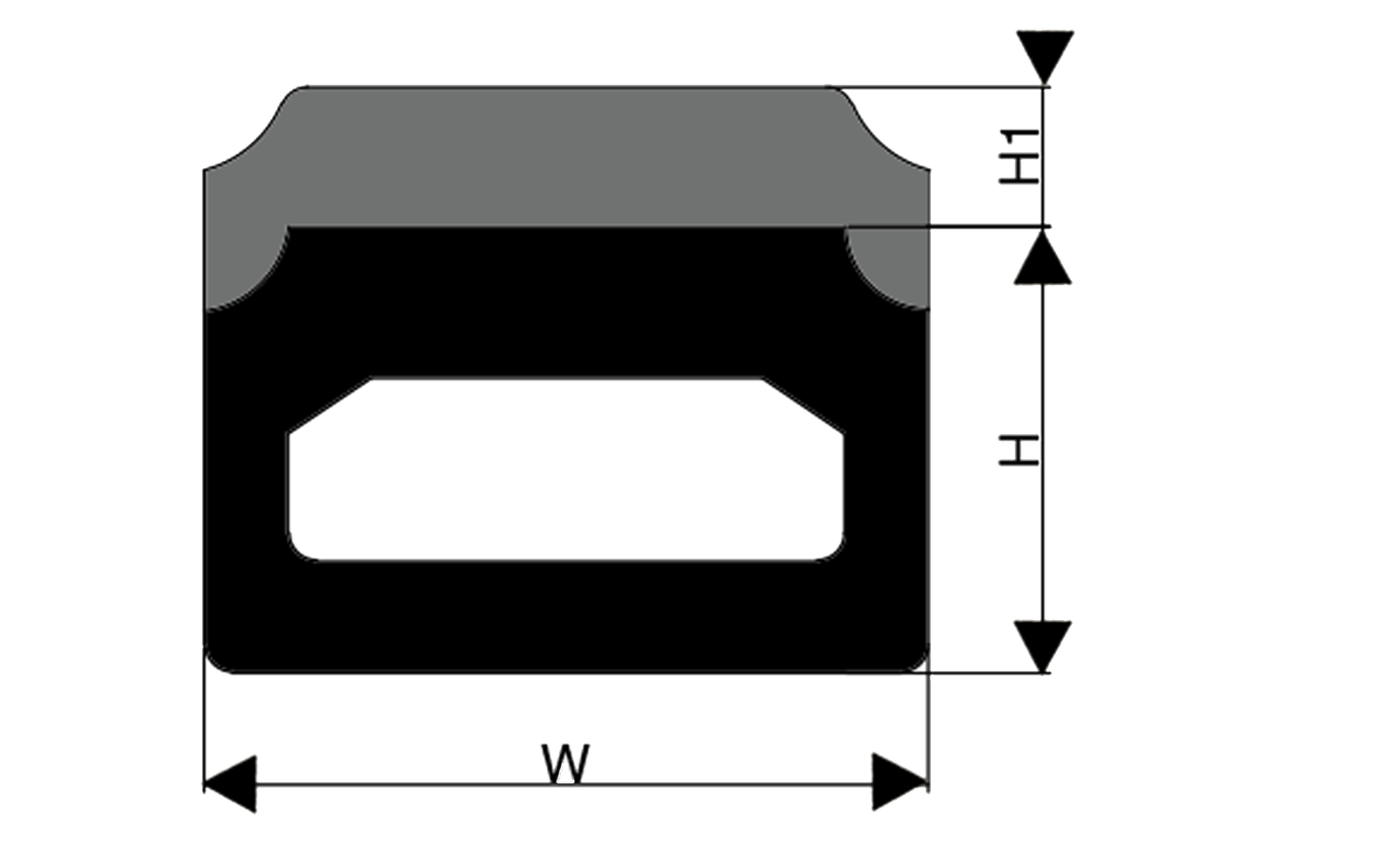

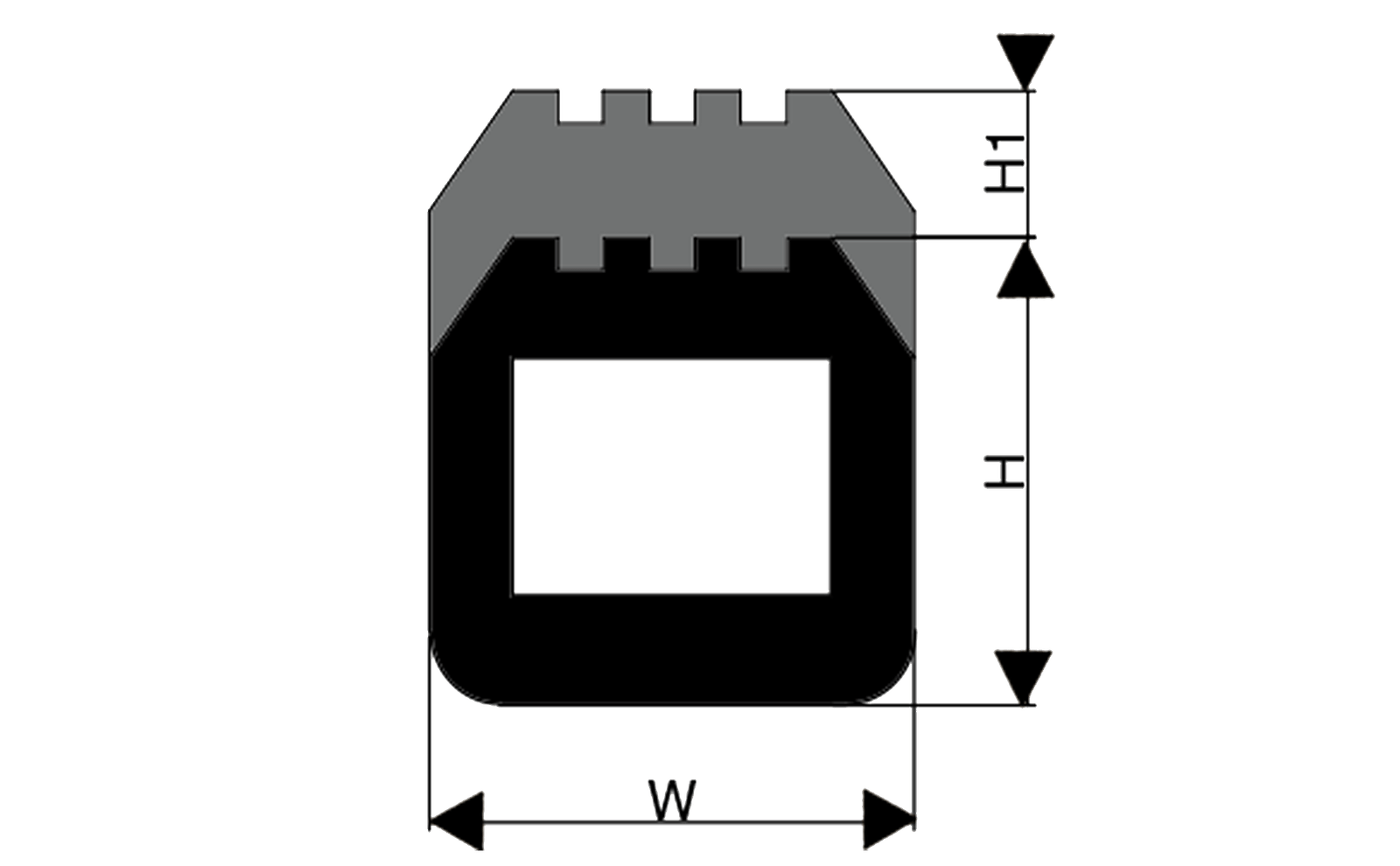

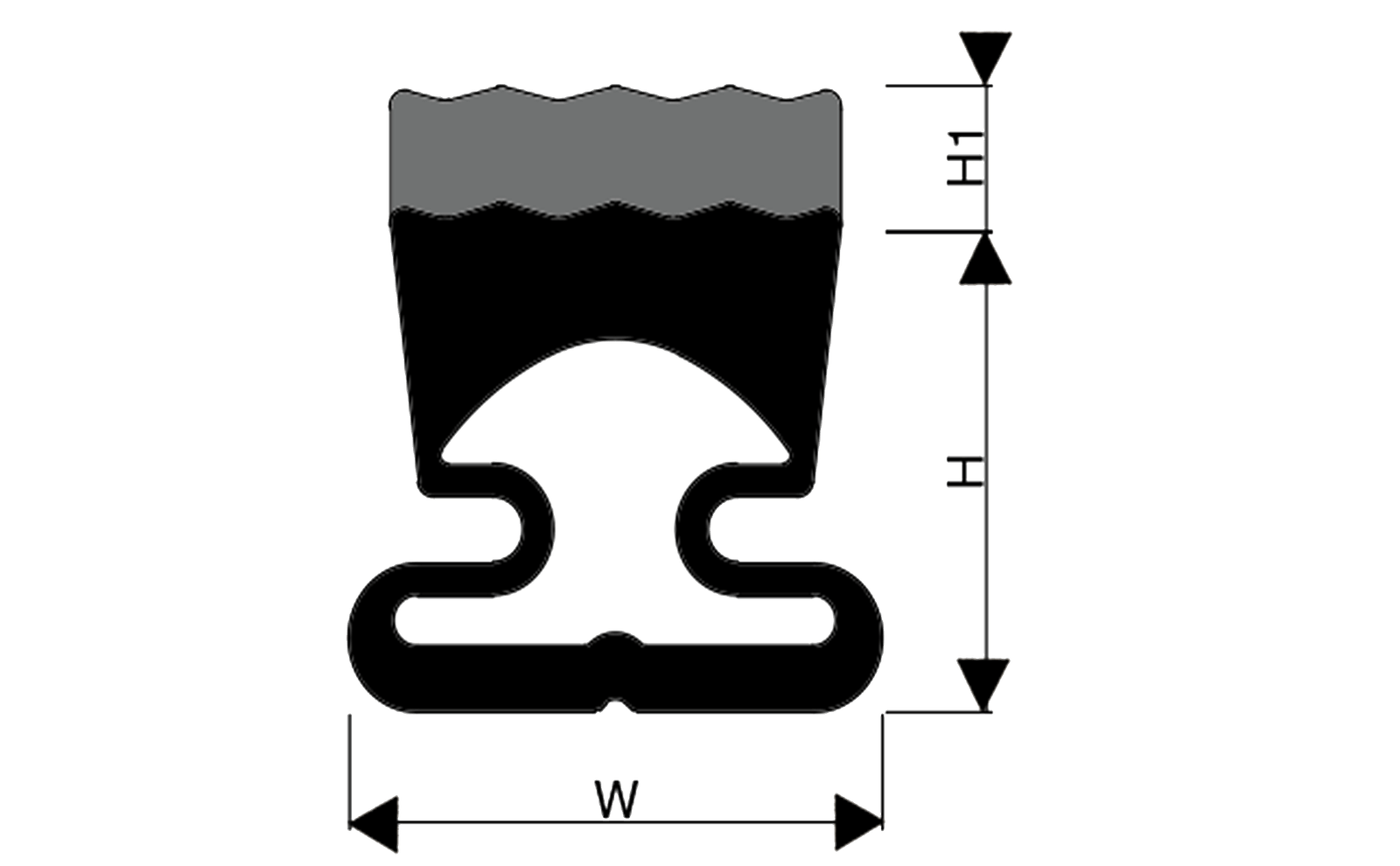

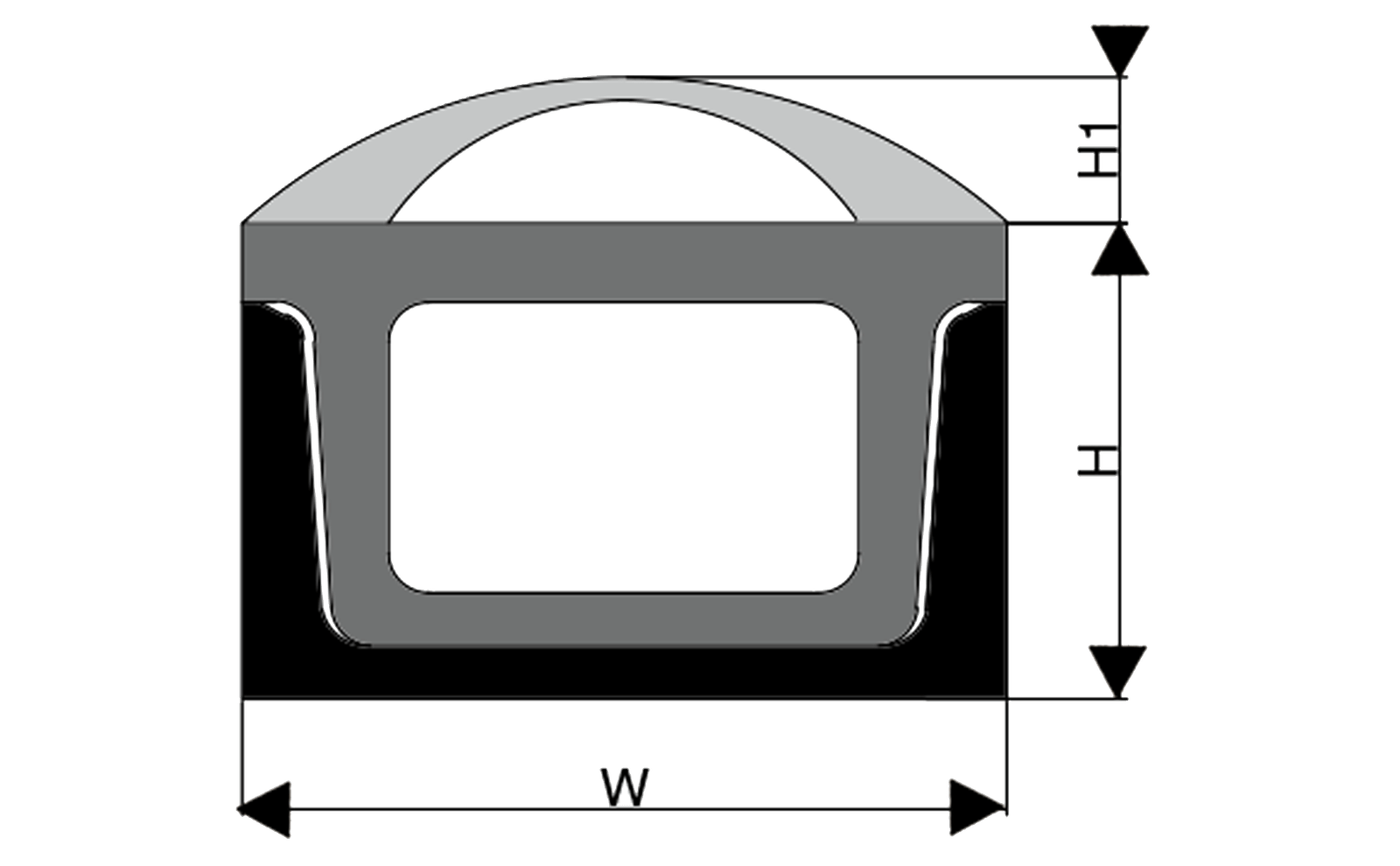

Section
|
Type
|
Width(W)mm |
Width(W)in |
Height(H)mm |
Height(H)in |
Inflation Gap(H1)mm |
Inflation Gap(H1)in |
Air Inlet valve(AIV) |
|---|---|---|---|---|---|---|---|---|
| WR-501 | TT | 7 | 0.28 | 5 | 0.2 | 1.25 | 0.05 | 1A, 2A, 3A, 5A |
| WR-502 | TT | 14.5 | 0.57 | 11 | 0.43 | 2.75 | 0.11 | 1A, 2A, 3A, 5A |
| WR-503 | ST | 16 | 0.63 | 12 | 0.47 | 3 | 0.12 | 1A, 2A, 3A, 5A |
| WR-504 | ST | 18 | 0.71 | 17 | 0.67 | 4.25 | 0.17 | 1A, 2A, 3A, 5A |
| WR-505 | ST | 20 | 0.79 | 20 | 0.79 | 5 | 0.2 | 1A, 2A, 3A, 5A |
| WR-506 | ST | 23 | 0.91 | 20 | 0.79 | 5 | 0.2 | 1A, 2A, 3A, 5A |
| WR-507 | ST | 26 | 1.02 | 22 | 0.87 | 5.5 | 0.22 | 1C, 2C, 3C, 5C |
| WR-508 | ST | 27 | 1.06 | 18 | 0.71 | 4.5 | 0.18 | 1C, 2C, 3C, 5C |
| WR-509 | ST | 30 | 1.18 | 30 | 1.18 | 7.5 | 0.3 | 1C, 2C, 3C, 5C |
| WR-510 | ST | 35 | 1.38 | 32 | 1.26 | 8 | 0.31 | 1C, 2C, 3C, 5C |
| WR-511 | ST | 40 | 1.57 | 20 | 0.79 | 5 | 0.2 | 1C, 2C, 3C, 5C |
| WR-512 | ST | 50 | 1.97 | 40 | 1.57 | 10 | 0.39 | 1D, 2D, 3D, 5D |
| WR-513 | ST | 75 | 2.95 | 50 | 1.97 | 12.5 | 0.49 | 1E, 2E, 3E, 5E |
| WR-514 | FT | 49.4 | 1.94 | 22.8 | 0.9 | 12.7 | 0.5 | 1C, 2C, 3C, 5C |
| WR-515 | FT | 76.2 | 3 | 36.5 | 1.44 | 19.05 | 0.75 | 1E, 2E, 3E, 5E |
| WR-516 | FT | 101.6 | 4 | 44.45 | 1.75 | 25.4 | 1 | 2F, 2G, 3F, 3G, 5F |
| WR-517 | BST | 19.57 | 0.77 | 24.7 | 0.97 | 6 | 0.24 | 1B, 2B, 3B, 5B |
| WR-518 | BST | 35.4 | 1.39 | 32.25 | 1.27 | 10 | 0.39 | 1C, 2C, 3C, 5C |
