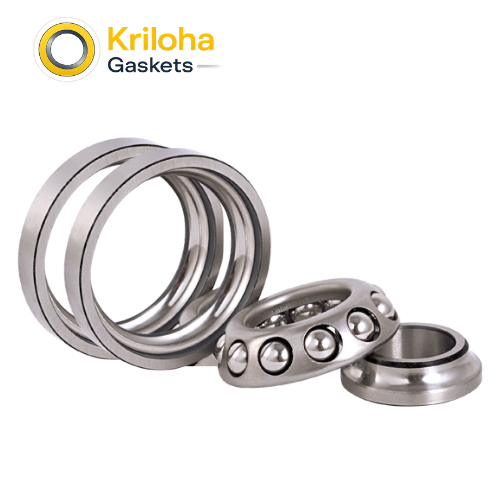

Angular Contact Ball Bearings – Special

Angular Contact Ball Bearings – Special

Core Features

  • Custom Contact Angles: Engineered with non-standard angles (e.g., 18°, 22°, or variable angles) to provide a specific balance between radial stiffness and axial thrust capacity for proprietary machinery.
  • High-Speed Hybrid Construction: Often incorporates ceramic (Silicon Nitride) balls to reduce centrifugal force and heat generation, allowing for ultra-high-speed operation in spindle and turbine applications.
  • Specialized Material Metallurgy: Available in stainless steel, high-nitrogen steel, or heat-stabilized alloys to maintain dimensional accuracy in cryogenic or extremely high-temperature environments.
  • Advanced Surface Armor: Features specialized coatings like Thin Dense Chrome (TDC) or Diamond-Like Carbon (DLC) to prevent “skidding” and wear during low-load, high-acceleration phases.
  • Bespoke Cage Designs: Utilizes custom-machined brass, silver-plated steel, or advanced polymers (like PEEK) to ensure stable ball guidance in high-vibration or vacuum environments.

At Kriloha Ltd., we understand that standard components often hit a “Performance-Ceiling” when faced with frontier engineering. Our Special Angular Contact Ball Bearings are our engineered answer for “Limit-State-Precision” and “Application-Specific-Stiffness.” As a premier provider of industrial components, Kriloha has developed a specialized manufacturing track that balances mechanical invincibility with the design agility required for custom-engineered systems.

The engineering of our Special series is based on Predictive Stress Management. By utilizing advanced thermal and mechanical simulation, we optimize the internal preload and contact geometry to survive the most punishing industrial duty cycles. At Kriloha, we verify that our specialized lubricants and seals—such as high-speed labyrinth or non-contact shields—are matched to your specific operational atmosphere. This creates a “Failure-Resistant” support system that secures your most complex and high-value rotating assets.

Manufacturing these bearings involves strict Micro-Geometric Verification. We ensure that every custom component meets the exact tolerance requirements of your housing and shaft, often reaching P2 or ABEC 9 precision classes. Whether you are developing a next-generation aerospace actuator or overhauling a specialized pharmaceutical centrifuge, Kriloha Special Angular Contact Ball Bearings provide the mechanical durability your facility demands. By choosing Kriloha Ltd., you are investing in a “Custom-Engineered” technology that secures your highest-value innovation.

Bearing Table

SR. NO. BEARING NO. BOUNDARY DIMENSIONS (in mm) MASS
(~ Kg.)
d d1 D B
1 PY1.20 21.100 28.000 34.885 7.900 0.028
2 FS 1.20 30.000 41.050 49.200 11.000 0.105
3 EB 37.20 30.000 41.050 52.000 13.700 0.160

Primary Use Cases

  • Aerospace Propulsion: High-reliability bearings for jet engine accessories and turbopumps where weight and extreme temperature resilience are critical.
  • High-Precision Medical Imaging: Used in CT scanners and X-ray tubes that require ultra-quiet, high-speed rotation with minimal runout.
  • Semiconductor Processing: Vacuum-compatible bearings designed for wafer handling robots that must operate without contaminating clean-room environments.
  • Defense & Robotics: Specialized joints and actuators requiring high rigidity and zero-backlash performance in compact, ruggedized housings.
  • Formula 1 & Motorsports: Ultra-low friction hybrid bearings for high-RPM transmissions and turbochargers.

Frequently Asked Questions

1. What makes an Angular Contact bearing “Special”?
A bearing is “Special” when it deviates from standard catalog dimensions (ISO/DIN) or incorporates unique features like hybrid ceramic elements, specialized surface coatings, or custom-matched preload sets.
2. Can these bearings operate without standard lubrication?
Yes. For vacuum or high-purity environments, Kriloha can engineer special bearings with dry-film lubricants or specialized solid-lubricant cages that do not outgas or contaminate the system.
3. What are the advantages of Ceramic Balls in “Special” designs?
Ceramic balls are 40% less dense than steel, reducing centrifugal force at high speeds. They are also harder and electrically non-conductive, preventing “arcing” damage in electric motor applications.
4. Can Kriloha match the thermal expansion of a specific housing material?
Absolutely. By selecting specific metallurgical alloys for the rings, we can manufacture “Special” bearings that maintain precise internal clearances even when mounted in aluminum, titanium, or composite housings.
5. Are these available in custom matched sets? Yes. We can provide “Special”
bearings in custom-matched pairs or triplex/quadruplex sets with specific preloads (Light, Medium, Heavy, or Custom) to achieve the exact system rigidity your application requires.
