Description

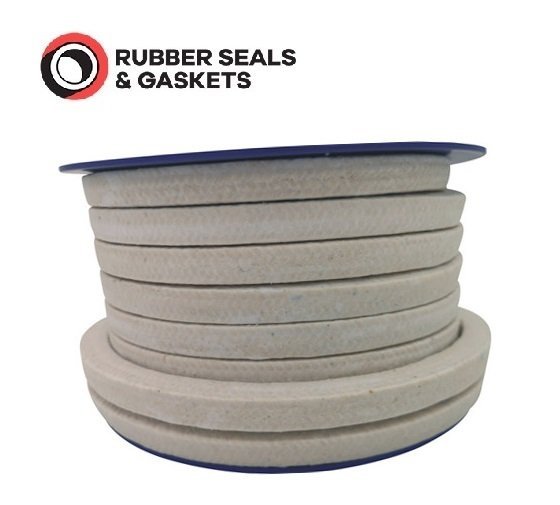

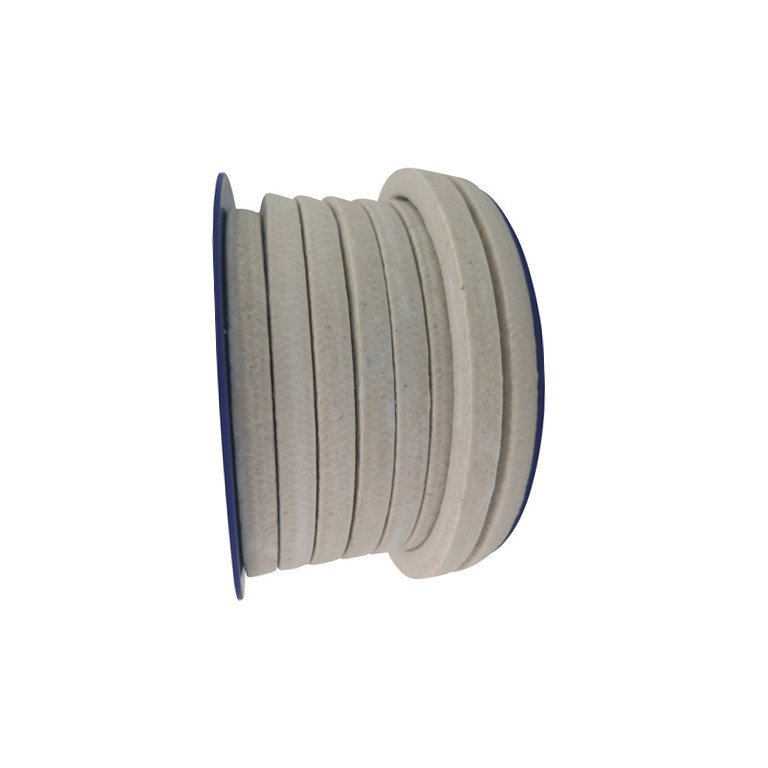

Flax / Ramie packing is manufactured from the finest quality ramie yarns with PTFE suspensoid in a square plait construction. An additional break-in lubricant is added to minimize shaft wear and to allow for expansion during the break-in period. This packing is a well lubricated, medium-hard packing with very low frictional characteristics, which assures minimal shaft wear. The ramie yarn is rot and mildew resistant, making the packing ideal for marine use, handling cold water, salt water and cold oils. In the marine industry, it is recommended for sealing stern tube and rudder post stuffing boxes.
This style is also used for certain pump and valve applications in the pulp and paper, water/wastewater, and mining industries but is most commonly used on boat propeller shafts. Flax is a plant fiber and should only be used in water applications where replacement is not a major task. Generally used in low cost pump packing applications.
| Pressure | 2MPa |
|---|---|
| Rotary Pump | 15bar |
| Reciprocating Pump | 15bar |
| Valve | 20bar |
| Temperature | 100℃ |
| PH Range | 6~8 |
| Linear speed | 6m/s |
| Density | 1.25g/cm3 |
| Section Size | 3*3mm–100*100mm |
| Package | 5kgs or 10kgs per reel in a box/or as the requirement of the client |
