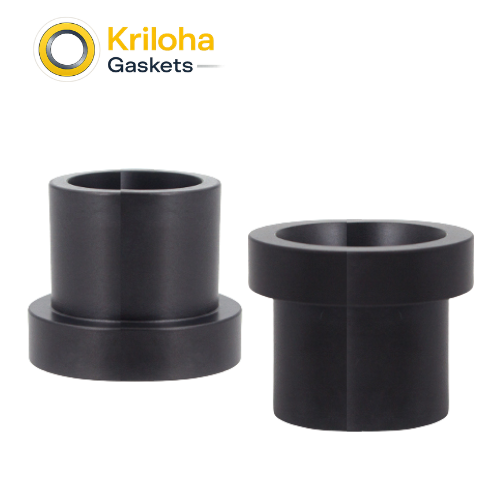

Black PEEK flanged shaft sleeve

At Kriloha Ltd., we understand that in high-performance rotation, stability is everything. Our Black PEEK Flanged Shaft Sleeves represent our engineered answer for “Rotational-Efficiency-Security” and “Integrated-Thrust-Integrity.” As a premier manufacturer of customized polymer solutions, Kriloha has developed a specialized 5-axis CNC fabrication protocol to ensure that the flange and the sleeve barrel are perfectly perpendicular and concentric.

The engineering of our black PEEK program is founded on Tribological-Optimization and Structural-Stiffness. By utilizing carbon-reinforced material, we create a component that offers the mechanical modulus of many metals while retaining the chemical inertness of a polymer. At Kriloha, we verify the internal and external diameter ($I.D./O.D.$) tolerances of every bespoke sleeve, resulting in “Failure-Resistant” interfaces that eliminate the need for secondary thrust washers and heavy metallic sleeves.

Manufacturing these advanced rotating components involves strict Dynamic Balance Verification, Hardness Testing, and Surface-Roughness ($R_a$) Calibration. We collaborate directly with your engineering teams to process bespoke configurations—including internal lubrication grooves, spiral-cut designs for easy field installation, and proprietary flange diameters. By choosing Kriloha Ltd., you are investing in a “Future-Proof” manufacturing partnership that prioritizes your equipment’s uptime through superior material science.

Primary Use Cases

High-Speed Centrifugal Pumps: Sacrificial sleeves for pump shafts handling abrasive or corrosive fluids where the flange provides essential axial spacing.
Semiconductor Handling Systems: ESD-safe (Electrostatic Discharge) flanged sleeves used in wafer processing equipment to prevent static buildup.
Aerospace Actuators: Lightweight, high-strength sleeves for flight control systems and compact motors where weight reduction is mission-critical.
Chemical Agitators & Mixers: Corrosion-proof sleeves for shafts submerged in aggressive reagents, organic solvents, or saltwater.
Automotive Powertrain: High-temperature flanged bushings for turbocharger components and advanced transmission assemblies.

Frequently Asked Questions

What are the advantages of the “Black” carbon-filled PEEK over natural PEEK?

Carbon-filled PEEK is stiffer, has a higher compressive strength, and a lower rate of thermal expansion. Most importantly, it has superior wear resistance and a lower coefficient of friction, which is vital for high-speed shaft sleeves.

Can the flange be used as a primary load-bearing thrust surface?

Yes. PEEK has high compressive strength. While it cannot replace a heavy-duty steel thrust bearing in every application, it is excellent for managing axial positioning and moderate thrust loads in high-speed, low-lubrication environments.

Is this product safe for chemical submersion?

Absolutely. PEEK is chemically inert to almost all organic and inorganic chemicals, including hydrogen sulfide ($H_2S$), steam, and aggressive acids, making these sleeves ideal for chemical and subsea pumps.

How does Kriloha ensure the sleeve won’t “slip” on the shaft?

We machine these sleeves to precise interference fit tolerances based on your shaft’s material and operating temperature. We can also machine keyed slots or specialized internal profiles for mechanical locking.

Are custom micro-sizes available for small-scale medical or electronic tools?

Yes. We utilize precision micro-CNC technology to achieve sub-millimeter accuracy for any custom internal diameter, flange thickness, or specialized geometry required by your proprietary projects.
