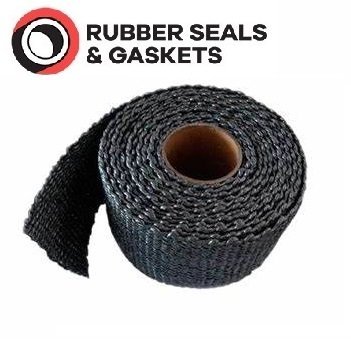

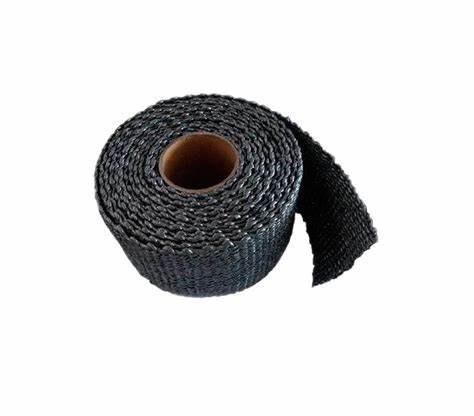

Description

The braided expanded graphite tape knitted with an innovative expanded pure graphite yarn. The shape structure compacting braided with high strength, usually used as the packing and gasket. With metallic wire reinforced is available.

Typical Applications

As a endless gasket strip for vessels and flanges of extreme uneven, high temperature and high pressure. Used in Heat exchangers, boiler, pipes, doors, covers, etc.

Prime Features

Easy handling and installation to every size
Used as universal gasket during revisions
Save money and time
Can be with adhesive on one side.

Specifications

Temperature: -240 up to +550 deg.C
PH: 0~14
Max. Pressure: 100 bar ( without wire reinforcement)
200 bar (with wire reinforcement).
