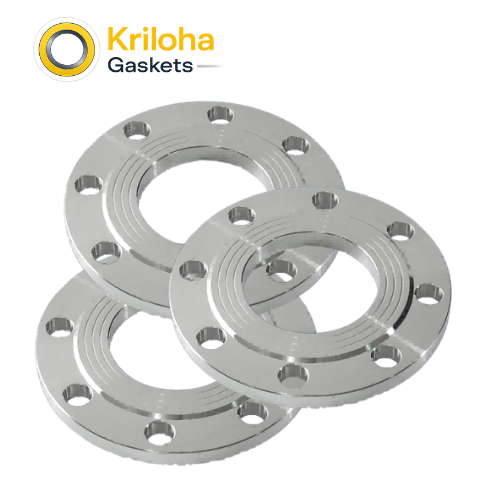

Customized Iso Plate Stainless Steel 304 Pn10 Flange

At Kriloha Gaskets & Hardware, we recognize that modern engineering challenges frequently require bypassing standard catalog metrics in favor of bespoke, application-specific solutions. Our Customized ISO Stainless Steel 304 PN10 Flat Plate Flanges represent our engineered answer for “Tailored-Geometric-Precision” and “Uncompromised-Joint-Alignment.” As a premier manufacturer of high-performance flow control and pipeline hardware interfaces, Kriloha utilizes state-of-the-art automated tooling to turn raw, certified metallurgy into exact drop-in structural components shaped to your proprietary CAD templates.

The engineering of our customized plate flange program is founded on Microstructural Uniformity and Deflection-Resistant Flatness. Rather than relying on lower-cost, unpredictable casting techniques that leave hidden internal gas pockets or porous defects, Kriloha utilizes fully certified, forged or densely rolled stainless steel plate stock. By forcing the internal metal grain flow to trace the flat contour of the customized ring, our components offer exceptional tensile strength. They comfortably withstand high bolt-torque loads across the pitch circle diameter (PCD) without warping, bowing, or relaxing under system pressure over time. On our CNC turning stations, we meticulously finish the flat mating surface with controlled phonographic serrations ($R_a$ finish) that mechanically bite into your chosen gasket matrix to prevent blowout under sudden system pressure spikes.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Ultrasonic Integrity Verification, and Face Roughness Calibration. We collaborate directly with your original equipment manufacturing (OEM) design teams, facility engineers, and procurement managers to process unique internal bores, altered bolt spacing, or custom step-faced profiles. By choosing Kriloha Gaskets & Hardware as your manufacturing partner, you are investing in a “Future-Proof” industrial alliance that maximizes your installation’s uptime through advanced material science and micro-tolerance engineering.

Primary Industrial Applications

Custom Machine & Equipment Manufacturing: Made-to-order connection adapters for joining industrial fluid lines to specialized imported machinery, hydraulic reservoirs, and custom pump bodies.
Hygienic Process Pipelines: Clean-utility networks in commercial food processing, dairy bottling plants, cosmetics manufacturing, and beverage facilities where smooth, non-porous stainless surfaces are mandatory to prevent fluid contamination.
Municipal Water & Waste Treatment: Reliable space-saving connection interfaces for water filtration skid assemblies, municipal low-pressure pumping manifolds, and chemical dosing systems.
Commercial HVAC & Condensate Loops: Premium, lifetime rust-resistant joints for mechanical facility heating lines, open/closed cooling towers, and commercial building chilled water risers.
Prefabricated Modular Process Skids: Compact structural mounting flanges used to integrate customized prefabricated manifold piping directly with flat-faced valves, inline instruments, and storage tanks.

Frequently Asked Questions (FAQs)

What can be customized on an ISO PN10 plate flange from Kriloha?

Because we utilize advanced programmable CNC machining paths, almost every dimensional attribute can be customized. We can alter the internal diameter (I.D.) to slide over non-standard metric or imperial tubes, modify the plate thickness to handle high structural loads, add custom pressure monitoring taps, or machine unique bolt patterns while maintaining basic ISO PN10 face geometry.

Why specify a hubless Flat Plate Flange instead of a traditional hubbed Slip-On flange?

Because a plate flange completely lacks a raised collar or hub, it uses significantly less raw material during manufacturing. This makes it a highly compact, lightweight, and cost-effective alternative for standard process networks and utility lines where the extra structural reinforcement of a heavy hub is not functionally required by the system design parameters.

What specific welding configuration is required to install this type of plate flange?

A plate welding flange requires a standard double fillet weld setup for proper installation: one robust fillet weld around the rear side where the plate meets the outer diameter of the pipe wall, and a secondary fillet weld along the inside bore face where the pipe end sits flush with the flat face. For thin-walled stainless steel tubes, high-strength TIG welding is recommended to prevent burn-through.

When is Grade 304 stainless steel the correct choice over Grade 316L?

Grade 304 is highly economical and excellent for freshwater processing, commercial HVAC, standard food-grade utilities, and clean factory environments. If your pipeline is handling aggressive chemical acids, highly concentrated salt brines, or is installed in an offshore marine environment exposed to heavy salt spray, upgrading to Grade 316L (which contains molybdenum) is recommended to prevent pinhole pitting.

Are Material Test Reports (MTRs) provided with customized shipments?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every customized shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions (Carbon, Chromium, Nickel content), hardness values, yield/tensile strength data, and explicit traceability to the original mill heat batch to guarantee complete industrial compliance.
