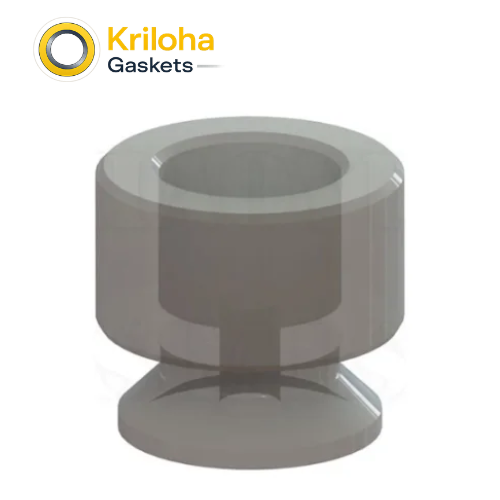

DN5mm Silicone Suction Cup For Chip
Material
Silicone (VMQ) 60 Shore A – Food Grade
Temp. Range
-55°C to +200°C (-67°F to +392°F)
Max Pressure
Application Dependent
standard
DIN / ISO Standard
Technical Specifications
| Property | Specification |
|---|---|
| Material | Silicone (VMQ) 60 Shore A, food-grade pass |
| Tensile Strength | 10 MPa |
| Elongation | 400% |
| Linear Shrinkage | 3.4–3.8% |
| Grip Mechanism | Vacuum negative pressure |
| Sealing Motion | Static vacuum pick-and-place |
| Typical Applications | Chip handling and PCB assembly lines |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Cup Size | DN5 mm |
| Note | Refer to SKU or technical drawing for exact bore, OD and height tolerances. |
Description
Main Features
-
Material : Silicone Rubber
-
Color : Black or as request
-
Hardness : SHA 60
-
Features: high tensile strength , high elongationm, Â Food Grade Pass
Technical Parameter
| Properties | Unit | Data |
| Tensile Strength | Mpa | 10 |
| Elongation | % | 400 |
| Linear Shrinkage | % | 3.4 – 3.8 |
Applications
