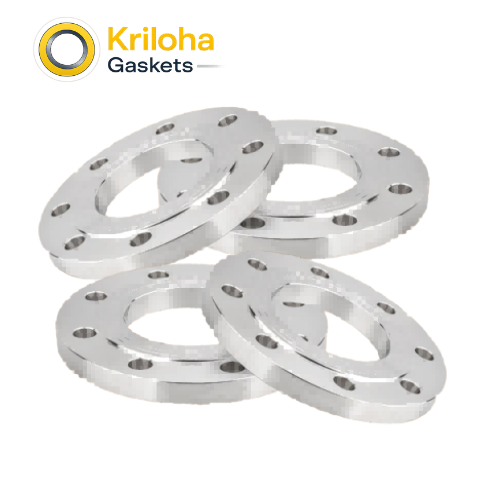

High Pressure Stainless Steel Dn15 Forged Plate Flange

At Kriloha Gaskets & Hardware, we recognize that small-bore, high-pressure systems demand the exact same engineering integrity as massive primary headers. Our High-Pressure Stainless Steel DN15 Forged Plate Flanges represent our engineered answer for “Micro-Space-Structural-Security” and “Deflection-Resistant-Flatness” across challenging fluid handling networks. As a leading premier manufacturer and supplier of integrated flow control elements and high-performance hardware, Kriloha utilizes automated multi-axis production workflows to ensure that our hubless plate flanges provide superior mechanical longevity.

The engineering of our DN15 forged plate program is founded on Metallurgical-Purity and Sharp-Geometric-Precision. By prioritizing high-density hot-forging over lower-tier casting alternatives, the metal grain structure smoothly traces the flat geometry of the plate ring, providing the structural modulus required to withstand intense bolt-torque demands across the bolt circle without bowing, warping, or undergoing structural relaxation over time. Depending on your environment, Kriloha provisions these high-pressure components in Grade 304 for standard oxidation resistance or Grade 316L for ultimate defense against chloride pitting and acid-induced stress cracking. At Kriloha, we precision-machine the flat sealing surface and finish them with controlled phonographic serrations ($R_a$ finish) that mechanically grip the gasket matrix to resist blowout under sudden system pressure cycles.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Face Roughness Calibration. We collaborate directly with your project engineering, procurement, and facility maintenance teams to supply precise internal bores tailored to standard metric tube gauges or specific wall-thickness schedules. By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior stainless metallurgy and micro-tolerance engineering.

Primary High-Pressure Industrial Applications

High-Pressure Hydraulic Pack Loops: Compact, high-integrity flanged interfaces for specialized industrial hydraulic lines, localized lubrication manifolds, and fluid power units.
Chemical Dosing & Injection Skids: Reliable connection joints for small-bore processing lines carrying chemical reagents, acids, and volatile dosing fluids under high pressure.
Laboratory Sampling & Pilot Plant Piping: Small-bore process networks and testing manifolds where fluid flows must remain completely pure and secure under pressure.
Hygienic High-Pressure Washdown Systems: Clean-utility loops in pharmaceutical, food, and beverage facilities requiring small-diameter lines capable of handling high-pressure hot water and sanitizing steam cycles.
Pneumatic & Gas Cylinder Manifolds: High-density flat interfaces for specialized secondary branch lines carrying compressed high-pressure nitrogen, argon, or helium directly to automated assembly cells.

Frequently Asked Questions (FAQs)

Can a completely flat “Plate Flange” truly handle high-pressure applications?

Yes, provided it is manufactured via high-density forging (rather than casting) and machined to the correct structural thickness. Forged plate flanges eliminate internal stress concentrations and hidden air pockets, giving them the necessary mechanical strength to safely handle elevated pressure tiers when paired with an engineered high-pressure gasket and appropriate bolt torque.

Why specify a hubless Flat Plate Flange instead of a traditional hubbed flange for a DN15 line?

Because a plate flange completely lacks a raised collar or hub, it uses significantly less raw material during manufacturing. This makes it a highly compact, lightweight, and cost-effective alternative for standard process networks and high-pressure utility lines where the extra physical envelope of a heavy hub is not functionally required or cannot fit due to spatial limitations.

What specific welding configuration is required to install this type of plate flange?

A plate welding flange requires a standard double fillet weld setup for proper installation: one robust fillet weld around the rear side where the plate meets the outer diameter of the tube wall, and a secondary fillet weld along the inside bore face where the tube end sits flush with the flat face. For thin-walled DN15 stainless steel tubes, high-strength TIG welding is recommended to prevent burn-through.

When should I select Grade 316L stainless steel over Grade 304 for this product?

Grade 304 is highly economical and excellent for freshwater processing, standard food-grade utilities, and clean factory environments. Grade 316L contains 2–3% added molybdenum and ultra-low carbon content, making it mandatory for harsher environments exposed to sea salt, chemical acids, or high-pressure chemical dosing loops where pinhole pitting and weld-zone intergranular corrosion must be strictly avoided.

Are Material Test Reports (MTRs) provided with these forged DN15 flanges?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions (including precise Carbon, Chromium, Nickel, and Molybdenum content), hardness values, yield/tensile strength data, and explicit compliance with international dimensional standards (such as ASME/ANSI B16.5 or EN 1092-1 templates) to guarantee complete industrial traceability.
