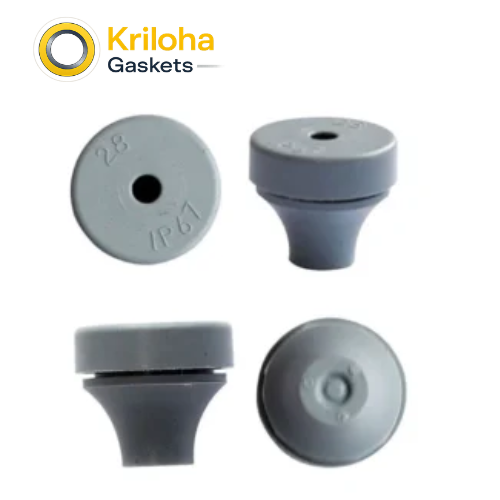

IP67 Rubber Wire Grommets

Tapered PG / Metric (M12–M50) Series
Tapered EPDM wire grommets delivering IP67-rated dust and water protection for cables passing through enclosure panels. Supplied in PG and metric sizes for reliable sealing in outdoor and wet conditions.

Material

EPDM

Temp. Range

-40°C to +130°C (-40°F to +266°F)

Max Pressure

Application Dependent

standard

IEC 60529 / DIN Metric & PG

IP67 Rubber Wire Grommets, IP67 dustproof and waterproof protective wire replacement plug electrical cabinet wire and cable wire protection ring tapered rubber protective coil

Technical Specifications

  • IP67 Ingress Protection: Sealed tapered body blocks dust and withstands temporary water immersion per IEC 60529.
  • EPDM Media Resistance: Resists ozone, weathering, hot water and steam for durable outdoor and wet-area service.
  • Panel Mounting: Standard PG and metric (M12–M50) hole sizes fit common cabinet knockouts.
  • Sealing Motion: Static cable-entry sealing for wire harnesses and cables.
  • Typical Applications: Electrical cabinets, junction boxes and outdoor enclosures requiring waterproof cable entry.

Dimensions

  • Model Range: PG7, PG9, PG11, PG16, PG21, PG29, PG36 and M12–M50
  • Mounting Hole: 12.5 mm to 50.5 mm
  • Cable Size Range: 3.0 mm to 34.0 mm
  • Panel Thickness: 0.5 mm to 4.0 mm

Description

Tapered IP67 Rubber Grommets, wire grommets, cable grommets, rubber grommet sleeves Model: PG7 PG9 PG11 PG16 PG21 PG29 PG36 M12 M16 M20 M25 M32 M40 M50 Waterproof grade: IP67 standard Dust rating: IP67 standard product Material: EPDM Application: Electrically protect wire harnesses and cables passing through the panel, and provide IP67 waterproof protection, suitable for outdoor or wet conditions. image Product Specifications

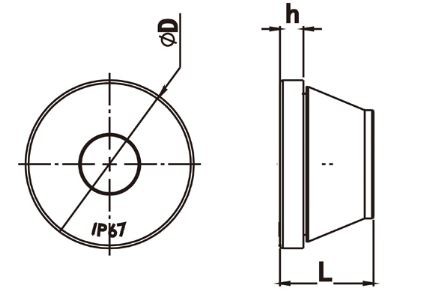

PART NO. SIZE (mm) HOLE (mm) Model PANNEL THICK          (mm) CABLE SIZE (mm)
D L H
02014008 20 13.3 6.8 12.7 M12 0. 5-2. 0 3. 0-5. 0
02014002 21 18.5 5.8 16.5 M16 1.0-4. 0 5. 0-9. 0
02014003 25.2 20.2 6.2 20.5 M20 1. 0-4. 0 7. 0-13.0
02014004 30.5 22 5.6 25.5 M25 1. 5-4. 0 10. 0-17. 0
02014005 38.6 24.6 6.8 32.5 M32 1. 0-4. 0 14. 0-20. 0
02014006 47.5 29.8 8.1 40.5 M40 1. 5-4. 0 19. 0-26. 0
02014007 58.8 35 9.9 50.5 M50 1. 0-4. 0 26. 0-34. 0
02014001 20 16.8 5.6 12.5 PG7 0. 5-2. 0 3. 5-5. 0
02014009 21 18.5 6.2 16 PG9 1.0-4. 0 5. 0-7. 0
02014010 24 19 6 19 PG11 1.0-4. 0 7. 0-10.0
02014011 28 22.2 6.1 23 PG16 1. 0-4. 0 10. 0-14. 0
02014012 33.8 24.4 6.1 29 PG21 1. 0-4.0 14. 0-20. 0
02014013 46 29 6.5 38 PG29 1. 0-4.0 20. 0-24. 0
02014014 57.5 32 8 48 PG36 1.0-4. 0 25. 0-32. 0
