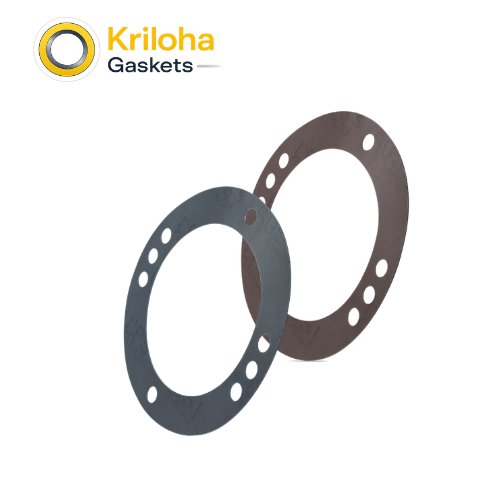

Modified PTFE Gasket for PEM Electrolyzer

At Kriloha Ltd., we understand that the efficiency of the green hydrogen revolution depends on the reliability of the “Proton-Barrier.” Our Modified PTFE Gaskets for PEM Electrolyzers are our engineered answer for “High-Pressure-Containment” and “Acid-Immune-Reliability”. As a premier provider of advanced industrial seals, Kriloha has developed a fluoropolymer technology that balances mechanical invincibility with the operational agility required for fluctuating renewable energy loads.

The engineering of our Modified PTFE series is based on Enhanced Structural Stability. By utilizing a refined polymerization process, we create a material that resists the “flattening” effect (creep) common in traditional gaskets, ensuring that the PEM stack maintains constant compression even after thousands of operational cycles. At Kriloha, we verify that our gaskets are “Oxygen-Clean” and free from any metal ions that could poison the expensive catalysts within the electrolyzer.

Manufacturing these gaskets involves strict Dimensional and Purity Calibration. We ensure that each gasket is precision-cut to match the complex flow-field geometries of your bipolar plates. Whether you are scaling a megawatt-class green hydrogen plant or a compact fueling station, Kriloha Modified PTFE Gaskets provide the mechanical durability your facility demands. By choosing Kriloha Ltd., you are investing in a “Hydrogen-Pure” technology that secures the life and efficiency of your highest-value energy assets.

Primary Use Cases

Green Hydrogen Production: The primary sealing solution for PEM electrolyzer stacks that convert renewable energy into high-purity hydrogen.
Energy Storage Systems: Used in large-scale hydrogen storage facilities where high-pressure gas containment is required.
Fuel Cell Test Rigs: Providing a reliable, non-contaminating seal for experimental hydrogen research and development.
Chemical Processing: Ideal for aggressive electrochemical cells that require high-purity, acid-resistant sealing components.

FAQ's

1. Why use “Modified” PTFE instead of standard Virgin PTFE in a PEM stack?
Standard PTFE is prone to “cold flow” (creeping) under the high compression required in an electrolyzer stack. Modified PTFE significantly reduces this deformation, maintaining a constant seal and preventing the plates from shifting.

2. Is this gasket compatible with the acidic environment of a PEM membrane?
Yes. PTFE is one of the few materials that is completely inert to the acidic conditions found at the membrane interface, ensuring it will not degrade or leach contaminants.

3. Does the gasket help prevent gas crossover?
Absolutely. The modified molecular structure is denser than standard PTFE, providing a much higher resistance to hydrogen permeation, which prevents “mixing” of the hydrogen and oxygen gases.

4. Can Kriloha provide gaskets for custom bipolar plate designs?
Yes. We utilize high-precision CNC cutting technology to manufacture gaskets to your exact CAD specifications, including complex internal ports and flow-field channels.

5. What is the temperature limit for these gaskets?
Kriloha Modified PTFE gaskets are stable up to +260°C, which far exceeds the standard operating temperature of most PEM electrolyzers (typically 60°C to 80°C), providing a significant safety margin.
