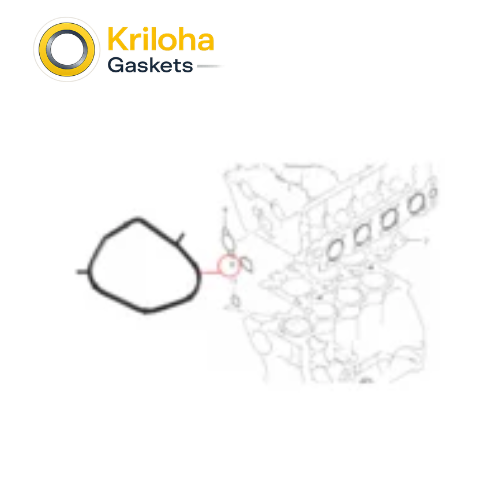

Oil pump control valve gasket

Standard Industrial Series
EPDM gasket that seals the oil pump control valve in the engine lubrication system. Matches the valve joint precisely to prevent high-pressure, high-temperature oil leaks and keep oil flow regulated.

Material

EPDM 40–90 Shore A

Temp. Range

-40°C to +130°C (-40°F to +266°F)

Max Pressure

Application Dependent

standard

ASTM D2000 / SAE J200

The oil pump control valve gasket is a crucial component in the engine lubrication system, ensuring proper sealing and regulating oil flow. It consists of adjustable valves or pistons that regulate oil flow based on the engine’s requirements. The gasket is made of EPDM material with good oil resistance, high-temperature resistance, anti-extrusion qualities, and chemical resistance. It is certified by ISO 9001, ASTM D2000, and SAE J200. Proper installation and gasketing can prevent leaks in lubricating oil and ensure the proper operation of the engine lubrication system.

Technical Specifications

  • Leak Prevention: Seals joints between the oil pump control valve and mating components against high-pressure oil.
  • Anti-Extrusion: Resists extrusion under pressure while maintaining sealing contact.
  • Mechanical Range: Tensile strength 5–20 MPa, 200–800% elongation and 40–90 Shore A hardness.
  • Sealing Motion: Static gasket sealing at the valve-to-component interface.
  • Typical Applications: Engine lubrication systems and oil pump control valves.

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Introduce

Oil pump control valve gasket is a gasket used to seal the oil pump control valve. This essential component ensures proper sealing of the valve. The oil pump control valve is a critical device in the engine lubrication system, regulating the normal operation and oil flow of the oil pump. It consists of adjustable valves or pistons that regulate the oil flow based on the engine’s requirements. The oil pump control valve produces high-pressure and high-temperature oil during operation and requires effective sealing to prevent leaks. The gasket is designed to seal joints between the oil pump control valve and other components, precisely matching the valve joint to ensure optimal sealing performance. Proper installation and gasketing can prevent leaks in lubricating oil and ensure the proper operation of the engine lubrication system.

Technical data

Material  EPDM
Density 0.85 g/cm³
Hardness (Shore A)  40 – 90
Tensile strength  5 – 20 MPa
Elongation at break 200 – 800%

Applications
