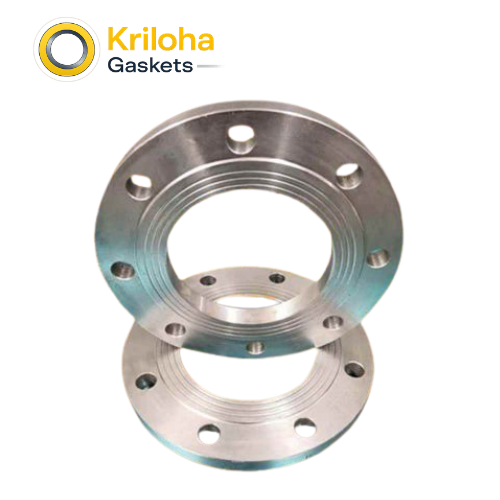

PN16 Plate Flange (Type 01) Series
Forged metal PN16 plate flange to EN 1092-1 Type 01 / DIN 2576 for mid-tier utility piping. Hubless flat profile with serrated Type A/B face gives uniform gasket load and leak-proof welded joints.

Material

Forged Steel (carbon or stainless, grade on request)

Temp. Range

Material dependent – consult datasheet

Max Pressure

Up to 16 Bar (232 PSI) at ambient (PN16)

standard

EN 1092-1 (Type 01) / DIN 2576

Core Features

  • PN16 Nominal Pressure Standard: Engineered and rated to safely handle continuous fluid working pressures up to 16 Bar (approximately 232 PSI) under standard ambient temperature parameters, serving as the universal benchmark for mid-tier utility piping.
  • Universal Standard Compliance (EN 1092-1 Type 01 / DIN 2576): Manufactured in strict accordance with major European and international metric dimensional frameworks, guaranteeing drop-in compatibility with global valves, pumps, and instrumentation.
  • Hubless, Space-Saving Geometry: The completely flat, collarless plate ring configuration slips directly over the pipe outer diameter, saving physical installation space and reducing raw material costs compared to tapered weld-neck alternatives.
  • Precision CNC Sealing Face: The flat mating face is precision-turned on multi-axis CNC machines to achieve parallel joint alignment and uniform gasket compression, preventing fluid bypass or torque loss over time.
  • Double Fillet Weld Attachment: Designed for secure permanent installation using both internal and external fillet welds, creating a robust mechanical joint that evenly distributes structural strain and helps absorb systemic pipeline vibrations.

Technical Specifications

Property Specification
Material Forged steel (carbon or stainless, grade on request)
Flange Type Type 01 hubless flat plate, double fillet weld
Standards EN 1092-1 (Type 01), DIN 2576
Pressure Rating PN16, up to 16 Bar (232 PSI) at ambient
Face Formats Type A (Flat Face) or Type B (Raised Face) with serrations
Typical Applications Mid-tier utility piping, valves, pumps and instrumentation

Dimensions

Parameter Value
Flange Type EN 1092-1 Type 01 (flat plate)
Pressure Rating PN16
Sizing Metric DN, custom bore to pipe OD (refer to drawing)

Description

At Kriloha Gaskets & Hardware, we recognize that modern industrial infrastructure requires balancing absolute mechanical security with structural value. Our PN16 Metal Plate Flanges represent our engineered answer for “European-Standard-Compliance” and “High-Density-Joint-Stability.” As a leading premier manufacturer and supplier of high-performance flow control and sealing interfaces, Kriloha utilizes automated multi-axis production workflows to ensure that our hubless plate flanges provide superior mechanical longevity. The engineering of our PN16 plate flange program is founded on Structural-Uniformity and Geometric-Perfection. Forged from certified raw steel billets rather than lower-grade cast alternatives, our flanges eliminate internal voids and stress pockets. The refined metal grain structure smoothly traces the flat geometry of the plate ring, providing the structural modulus required to withstand high bolt-torque demands across the metric bolt circle without bowing or warping. At Kriloha, we precision-machine the flat sealing surface—standardized to the European Type A (Flat Face) or Type B (Raised Face) configurations—and finish them with controlled phonographic serrations that mechanically grip the gasket matrix to resist blowout under sudden system pressure spikes. Manufacturing and provisioning these critical flow-control connection pieces involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Face Roughness ($R_a$) Calibration. We collaborate directly with your project engineering and facility maintenance teams to supply precise internal bores tailored to standard metric pipe outer diameters and unique wall-thickness schedules. By choosing Kriloha Gaskets & Hardware as your manufacturing partner, you are investing in a “Future-Proof” industrial alliance that prioritizes your system’s lifetime reliability through superior metallurgy and micro-tolerance engineering.

Applications

  • Municipal Water & Wastewater Infrastructure: Standard connection interfaces for large-scale water filtration plants, heavy sewage drainage networks, and municipal pumping stations.
  • Commercial HVAC & Chilled Water Loops: Cost-efficient, robust connections for large-scale heating, cooling, and air conditioning piping loops in commercial properties and factories.
  • Industrial Utility Compressed Air Lines: High-density flat interfaces for factory-wide compressed air networks, nitrogen distribution lines, and vacuum systems.
  • Non-Corrosive Hydrocarbon Transfer: Economical connection joints for hydraulic oil systems, fuel oil lines, diesel fuel handling, and lubrication loops.
  • Modular Industrial Process Skids: Compact structural flanges used to connect prefabricated utility piping segments to flat-faced valves, storage tanks, and strainers.
