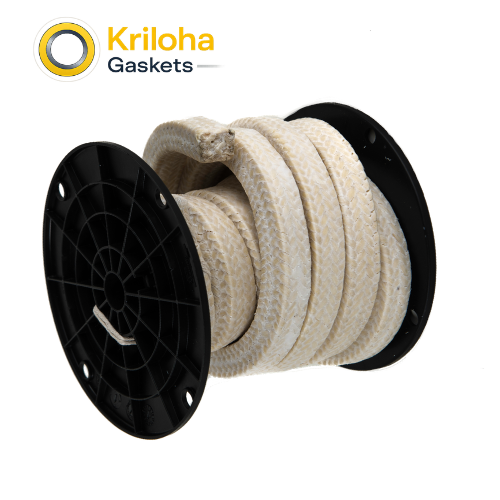

Ramie Fiber Packing (Graphite Impregnated)

Ramie Fiber Packing (Graphite Impregnated)

Core Features

  • Ultimate Natural Strength: Braided from 100% long-staple Ramie (China Grass) fibers. Ramie is the strongest natural vegetable fiber known to industry, possessing a tensile strength that remains high even when saturated with water or oil.
  • Deep-Soak Graphite Impregnation: Every individual strand is vacuum-impregnated with high-purity micronized graphite. This ensures the lubricant is present throughout the entire cross-section of the packing, not just as a surface coating.
  • Superior Heat Dissipation: The integrated graphite creates a “thermal bridge,” rapidly wicking frictional heat away from the shaft interface. This prevents localized hotspots and protects the natural fibers from “charring” or becoming brittle.
  • Low-Friction Operation: The graphite acts as a permanent dry lubricant, ensuring a low coefficient of friction. This reduces breakout torque for valves and lowers power consumption in rotating equipment.
  • Non-Abrasive Hardware Protection: Despite its “synthetic-like” strength, Ramie is a non-abrasive organic material. It provides a robust, high-pressure seal without the risk of scoring or “necking” stainless steel shafts, bronze sleeves, or brass hardware.
  • Inherent Rot & Mildew Resistance: Ramie fibers are naturally resistant to bacteria and fungi. The heavy graphite treatment further seals the fibers, making this packing virtually immune to degradation in stagnant water or harsh maritime environments.

At Kriloha Ltd., we recognize that in “Heavy-Duty” water service, the choice of fiber can mean the difference between a season of smooth sailing and an emergency dry-docking. The Kriloha Graphite-Treated Ramie Packing is our engineered answer for “Extreme-Duty Natural” service. As a premier global provider of high-performance seals, Kriloha Gaskets has mastered the Square-Interlock Braid technology required to turn technical Ramie yarns into a high-performance fluid barrier.

The engineering of our Ramie series is based on Structural Reinforcement. Ramie fibers are unique in that they do not lose their tensile strength when wet; instead, they maintain a rigid, stable profile. At Kriloha, we utilize a specialized graphite dispersion that fills the microscopic voids between the braided yarns. This creates a dense, leak-proof barrier that remains soft and pliable over thousands of hours of operation. This graphite also acts as a lubricant reservoir, ensuring that even under high-torque conditions, the shaft remains protected.

Manufacturing this packing at Kriloha involves strict Fiber-Length Calibration. We ensure our Ramie yarns are “long-staple,” providing maximum resistance to “shredding” or fiber-pull under high-pressure water service. Whether you are sealing a commercial vessel’s stern tube or a massive industrial wastewater agitator, Kriloha Graphite-Treated Ramie Fiber Packing provides the mechanical invincibility and hardware safety your facility demands. By choosing Kriloha Ltd., you are investing in a “Premium-Natural” technology that protects your equipment while remaining budget-friendly.

Primary Use Cases

  • High-Pressure Marine Stern Glands: The premium choice for propeller shafts and rudder posts on commercial vessels, tugboats, and yachts where maximum strength and rot resistance are required.
  • Paper & Pulp Mills: Handling stock lines and “white water” where a combination of mechanical durability and non-staining properties (graphite-safe zones) is mandatory.
  • Wastewater & Sewage Treatment: Providing a long-life seal for pumps handling grit-loaded fluids and organic solids that require a “tough-yet-lubricated” fiber.
  • Mining & Slurry Pumps: Capable of handling abrasive mineral slurries in primary and secondary pumping stages where hardware protection is a priority.
  • High-Volume Water Utilities: Sealing large-diameter municipal water pumps that experience high mechanical stress and require a dependable, low-maintenance seal.

FAQs

What is the benefit of Graphite over PTFE-treated Ramie?

While PTFE is excellent for chemicals, Graphite offers superior heat dissipation. If your pump or stern gland runs at higher speeds or experiences frictional heat surges, the graphite-treated version will stay cooler and reduce the risk of shaft glazing.

Will this packing score my propeller shaft?

No. Ramie is a non-abrasive vegetable fiber. It provides a robust seal without the risk of scoring or wearing down 316 Stainless Steel, bronze, or brass hardware.

Can I use this for concentrated chemicals?

It is highly resistant to oils, solvents, and neutral fluids (pH 4–11). For highly concentrated acids or alkalis (pH 0–14), Kriloha recommends our Pure White PTFE Filament packing.

How much “leak-off” is required?

A steady drip (approx. 10–12 drops per minute) is recommended during operation. This flow dissipates frictional heat and ensures the graphite can maintain a lubricating film at the shaft interface.

How do I install Graphite-Treated Ramie Packing?

Cut the packing into rings with a 45° miter joint. Stagger the joints by 90°. During startup, tighten the gland nuts finger-tight and adjust slowly as the pump reaches operating speed to ensure the graphite can establish a lubricating film.
