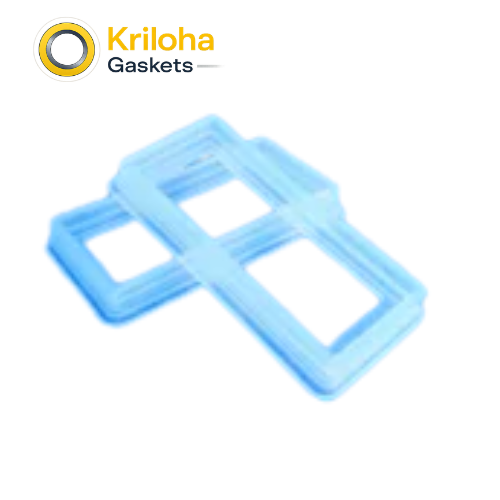

Rectangle Silicone Suction Cup For Carpentry Work

Rectangle Vacuum Cup Series
Rectangular silicone (VMQ) suction cup for carpentry, holding woodworking planks by vacuum negative pressure. Flexible 60 Shore A silicone with high tensile strength for secure panel handling.

Material

Silicone (VMQ) 60 Shore A

Temp. Range

-55°C to +200°C (-67°F to +392°F)

Max Pressure

Application Dependent

standard

DIN / ISO Standard

It’s made of Silicone rubber and made for Carpentry Work. It uses vacuum negative pressure to absorb woodworking planks. We mainly make customizing rubber parts,please kindly contact us for more details.

Technical Specifications

Property Specification
Material Silicone (VMQ) 60 Shore A
Tensile Strength 10 MPa
Elongation 400%
Linear Shrinkage 3.4–3.8%
Grip Mechanism Vacuum negative pressure
Sealing Motion Static vacuum hold-down
Typical Applications CNC routers and woodworking plank handling

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

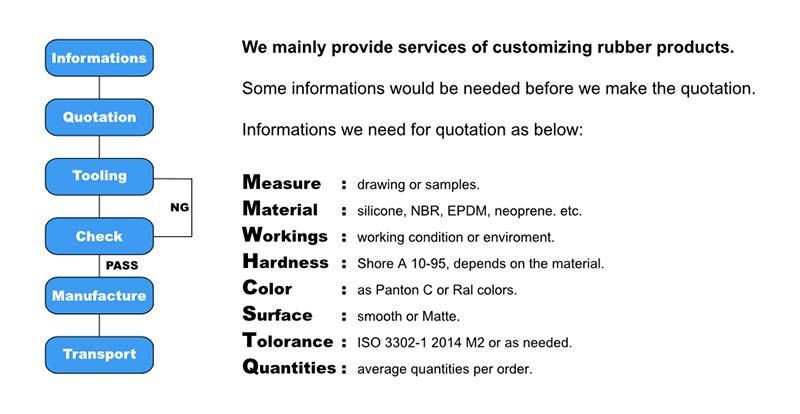

It’s made of Silicone rubber and made for Carpentry Work. It uses vacuum negative pressure to absorb woodworking planks. If you need to customize your rubber parts, you could kindly offer the inormation as below, we could make the quotation based on that. Information for quotation and customizing

Main Features

  • Material : Silicone Rubber
  • Color : Original
  • Hardness : SHA 60
  • Features: high tensile strength , high elongationm, Rohs and Food Grade Pass

Technical Parameter

Properties Unit Data
Tensile Strength Mpa 10
Elongation % 400
Linear Shrinkage % 3.4 – 3.8

Applications
