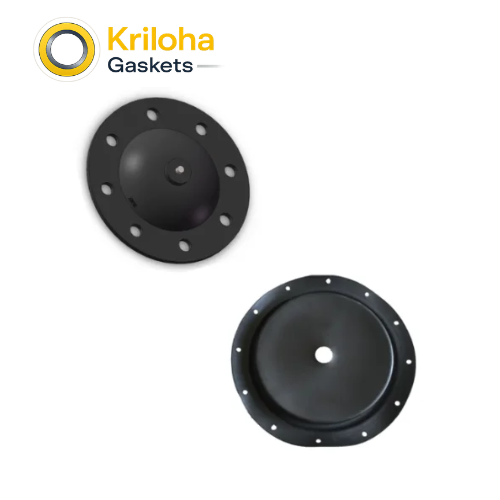

Rubber diaphragm pneumatic valve

Standard Industrial Series
Rubber diaphragm for pneumatic valves, giving reliable sealing of corrosive, viscous and particle-laden fluids. Supplied in NBR, EPDM or FFKM for chemical, pharmaceutical, food and water-treatment service.

Material

NBR / EPDM / FFKM (configurable), 20–90 Shore A

Temp. Range

-50°C to +140°C (-58°F to +284°F)

Max Pressure

Application Dependent

standard

DIN / ISO Standard

Rubber diaphragm pneumatic valve is a type of valve widely used in industrial control systems, which uses rubber diaphragm as a key component to realize the opening and closing of the valve through a pneumatic actuator. This kind of valve has been widely used in many fields because of its advantages of simple structure, convenient operation and low maintenance cost.

Technical Specifications

  • Corrosion & Media Resistance: Selectable NBR, EPDM or FFKM compound handles corrosive, viscous and solid-particle-laden fluids.
  • Elastic Sealing: High-elasticity diaphragm gives tight shut-off and prevents fluid leakage.
  • Hardness & Thermal Range: 20–90 Shore A, rated for -50°C to +140°C service.
  • Sealing Motion: Flexing diaphragm actuation driven by a pneumatic actuator.
  • Typical Applications: Chemical, petroleum, pharmaceutical, food and water-treatment flow control.

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Rubber diaphragm pneumatic valves are widely used in chemical, petroleum, pharmaceutical, food, water treatment and other industries. In these industries, rubber diaphragm pneumatic valves are primarily used to control a wide range of corrosive, viscous, solid particle-containing fluids. Due to the good sealing performance of the rubber diaphragm, it can effectively prevent the leakage of fluids and protect the safety of the environment and equipment.
Product name Rubber diaphragm pneumatic valve
Product material NBR, EPDM, FFKM, Other rubber
Hardness (Shore A) 20 to 90
Applicable temperature °C -50 to 140
Color Black, orange, blue, yellow, green, custom
Size Standard/ Custom
Advantage High temperature resistance, Abrasion resistance, Corrosion resistance, Elastic performance
Application Chemical, petroleum, pharmaceutical, food, water treatment, etc
Certification ISO: 9001, ISO: 14001, IATF: 16949
