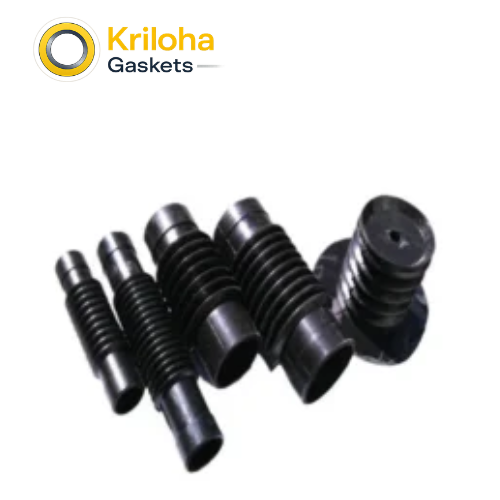

Rubber Threaded Bellows

Threaded Bellows Series
Rubber threaded bellows with an accordion profile that screws onto threaded rods and shafts to protect them from dust, debris and moisture. Flexes with the moving part while sealing out contaminants.

Material

Elastomer Compound

Temp. Range

Consult datasheet

Max Pressure

Application Dependent

standard

DIN / ISO Standard

Rubber threaded bellows are flexible, accordion-like components used to protect threaded rods, shafts, and other moving parts from dust, debris, and contaminants. They are commonly made from durable rubber materials and feature a threaded design for easy installation onto machinery or equipment. These bellows provide effective sealing and protection, extending the lifespan of threaded components and minimizing maintenance requirements. They are widely used in industrial applications such as automotive, machinery, electronics, and robotics to ensure smooth operation and prevent damage to critical components.

Technical Specifications

  • Contaminant Protection: Seals the threaded area against dust, debris and moisture, reducing wear and corrosion.
  • Flexible Accordion Profile: Expands and contracts to follow the movement of the threaded rod or shaft.
  • Easy Installation: Screws directly onto the threaded component for a tight protective seal.
  • Sealing Motion: Dynamic flexing cover over reciprocating/rotating threaded parts.
  • Typical Applications: CNC machines, robotic arms, industrial machinery and precision instruments.

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Rubber Threaded Bellows
Rubber bellows are essential components used to protect threaded rods, shafts, and other moving parts in machinery and equipment. They are typically made from high-quality rubber materials, which provide flexibility, durability, and resistance to various environmental conditions. These bellows feature a unique accordion-like design, which allows them to expand and contract as needed, accommodating the movement of the threaded components they cover. This flexibility helps to prevent dust, debris, moisture, and other contaminants from entering the threaded area, thus reducing the risk of damage and corrosion. Rubber bellows are commonly installed by simply screwing them onto the threaded rod or shaft. Once in place, they provide a tight seal, effectively sealing off the threaded area from external elements. This helps to prolong the lifespan of the threaded components, reducing the need for maintenance and repairs. These bellows find applications across various industries, including automotive, machinery, electronics, robotics, and more. They are used in equipment such as CNC machines, robotic arms, industrial machinery, and precision instruments, where the protection of threaded components is critical for smooth operation and long-term reliability. PE corrugated pipe is waterproof and oil proof, with complete specifications. It has six core advantages: high temperature resistance, corrosion resistance, wide application, real materials, waterproof oil, and full specifications. Our corrugated design has clear internal and external ripples. The working temperature can reach – 30 ℃ -+80 ℃, and can reach+100 ℃ in a short time. PE corrugated pipe is non flame retardant, light and light, and PP corrugated pipe is flexible, hard, flame retardant and wear-resistant, and available in many colors. PA nylon tube, compressive and tensile, bending without deformation, can be customized flame retardant. Haining Chaoyue Seal is a modern enterprise specializing in production and sales. Pay attention to customer experience and reputation, ensure quality and buy with confidence. Each of our products will go through multiple strict quality control tests. We welcome new and old customers to compare price with quality. Interested parties please contact us.

Applications
