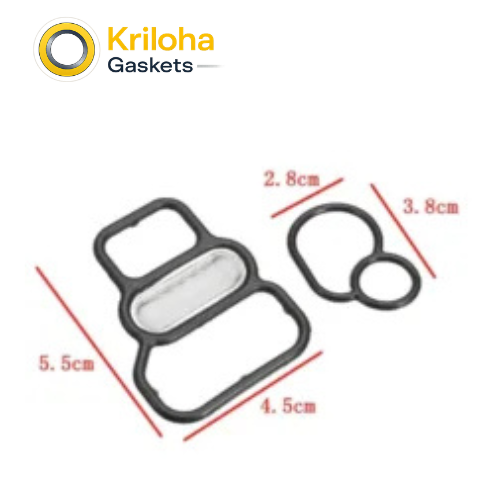

Solenoid Spool Valve Gasket

Standard Industrial Series
FKM (Viton) solenoid spool valve gasket sealing between the valve core and body to stop liquid or gas leakage. High-temperature fluoroelastomer build for durable sealing in engine and hydraulic valves.

Material

FKM (Viton®) 70–90 Shore A

Temp. Range

-20°C to +200°C (-4°F to +392°F)

Max Pressure

Application Dependent

standard

DIN / ISO Standard

The solenoid spool valve gasket is a seal used in automobile engines to prevent liquid or gas leakage. It is made of soft, high-temperature resistant materials like rubber or metal, providing good sealing properties and durability. The gasket is used in sealing equipment like solenoid valves, control valves, and hydraulic valves in various industries. Its lifespan depends on factors like material quality, working environment, usage conditions, and maintenance. The gasket is compliant with industry standards, including ISO 9001 and ISO/TS 16949 certification requirements for quality management systems. Regular replacement ensures reliable sealing performance and prevents leakage.

Technical Specifications

Property Specification
Material FKM (Viton®)
Density 1.8–2.0 g/cm³
Hardness 70–90 Shore A
Tensile Strength 10–20 MPa
Elongation 100–300%
Media Resistance Fuels, oils, high-temperature fluids
Sealing Motion Static core-to-body sealing
Typical Applications Solenoid, control and hydraulic valves

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Solenoid Spool Valve Gasket

The solenoid spool valve gasket is a seal used in automobile engines to prevent liquid or gas leakage. It is located between the solenoid valve core and the valve body. These gaskets are typically made of soft, high-temperature resistant materials like rubber or metal, which provide good sealing properties and durability. They can withstand high temperatures and pressure environments. The solenoid valve core gasket ensures a tight seal between the solenoid valve core and the valve body. When the solenoid valve is energized, the valve core is attracted or pushed to regulate the flow of liquid or gas. The gasket prevents any leakage of liquid or gas, ensuring the system operates normally. The gasket may wear and age over time, especially in high-temperature and high-pressure environments. Regularly replacing the solenoid valve core gasket ensures reliable sealing performance and prevents liquid or gas leakage.

Technical data

Material  FKM
Density (g/cm³)  1.8–2.0
Hardness (hardness scale: Shore A) 70–90
Tensile strength (MPa) 10–20
Elongation (%) 100–300

Applications
