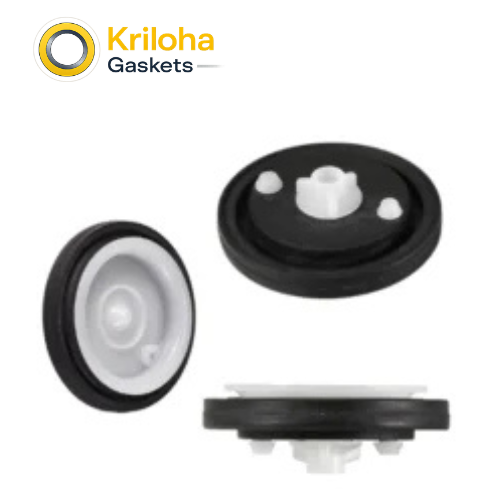

Solenoid valve gasket

Standard Industrial Series
NBR (nitrile) solenoid valve gasket that seals the joint between the valve body and pipeline in liquid and gas control systems. Resists oils and fuels for reliable leak-free solenoid valve operation.

Material

NBR (Nitrile) 30–100 Shore A

Temp. Range

-30°C to +100°C (-22°F to +212°F)

Max Pressure

Application Dependent

standard

DIN / ISO Standard

The solenoid valve gasket is a crucial seal in solenoid valve equipment, controlling the flow of liquids or gases through electromagnetic force. It consists of a solenoid coil and a valve body, with the solenoid coil’s on-off controlling valve action. This seal ensures sealing between the valve and pipeline.

Technical Specifications

  • Oil & Fuel Resistance: NBR compound resists petroleum oils and fuels, suiting solenoid valves handling such media.
  • Mechanical Range: Tensile strength 10–25 MPa with 200–600% elongation and 30–100 Shore A hardness.
  • Pipeline Sealing: Ensures a leak-free seal between the valve body and connected pipework.
  • Sealing Motion: Static gasket sealing at the valve-to-pipe interface.
  • Typical Applications: Solenoid valves controlling liquid or gas flow in fluid-power and process systems.

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Introduce

Solenoid valve gasket is an important and indispensable seal in the solenoid valve equipment, solenoid valve is a device to control the flow of liquids or gases, it is through the role of electromagnetic force to control the opening and closing of the valve. The solenoid valve consists of a solenoid coil and a valve body, and the action of the valve is controlled by controlling the on-off of the solenoid coil. And this seal, mainly used to ensure the sealing between the solenoid valve and the pipeline.

Technical data

Material NBR
Density 0.9 – 1.2 g/cm³
Hardness (Shore A) 30 – 100
Tensile strength 10 – 25 MPa
Elongation at break 200 – 600%

Applications
