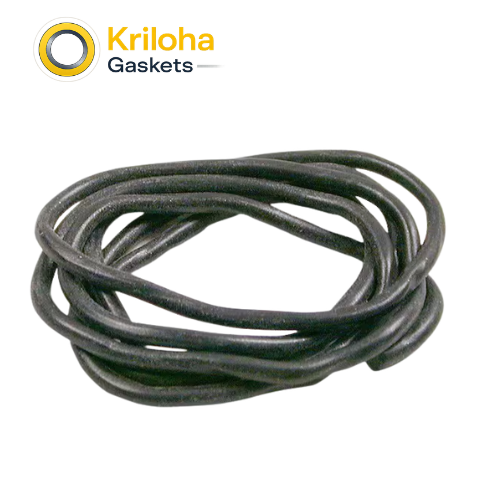

Super Graphite Valve Packing

At Kriloha Ltd., we understand that “Super” isn’t just a label—it’s a performance requirement. In high-pressure steam service, a standard packing can be “nibbled” away by the pressure or cause “pitting” on expensive valve stems. The Kriloha Super Graphite Valve Packing is our engineered answer for high-integrity containment. As a premier global provider of industrial sealing solutions, Kriloha Gaskets has mastered the Multi-Stage Impregnation process required to protect your valves from both leaks and corrosion.

The engineering of Super Graphite is based on Sacrificial Protection. We integrate a Zinc-based corrosion inhibitor directly into the graphite matrix. This acts as a sacrificial anode; if moisture enters the stuffing box, the inhibitor reacts first, protecting the stainless steel valve stem from galvanic pitting. At Kriloha, we combine this chemical protection with a Structural Inconel Mesh, ensuring that the graphite is physically “locked” into the braid, preventing migration or extrusion under pressures exceeding 400 Bar (5,800 PSI).

[Image showing the detail of a wire-reinforced graphite yarn with corrosion-inhibiting treatment]

Manufacturing this packing at Kriloha involves strict Batch Testing for Carbon Purity. We ensure that no low-grade fillers are used that could “carbonize” and harden the packing over time. Whether you are sealing a high-pressure boiler header or a critical refinery isolation valve, Kriloha Super Graphite Valve Packing provides the mechanical invincibility and chemical permanence your most sensitive assets demand. By choosing Kriloha Ltd., you are investing in a “Safety-First” technology that maximizes valve life and minimizes environmental risk.

Primary Use Cases

Supercritical Steam Valves: The premier choice for main steam isolation valves (MSIV) and turbine bypass systems in modern power plants.
High-Pressure Petrochemical Isolation: Sealing critical valves in hydrocrackers, reformers, and high-heat chemical reactors.
Nuclear Island Service: Utilized in primary and secondary loops where radiation resistance and “Zero-Leak” reliability are safety-critical.
Severe Service Control Valves: Providing smooth, repeatable actuation for automated valves handling high-pressure thermal fluids.
High-Temperature Manifolds: Reliable sealing for large-diameter valve bonnets and headers in industrial boiler systems.

FAQs

What makes it “Super” compared to standard Graphite Packing?

“Super” grades typically include Inconel wire reinforcement for higher pressure and corrosion inhibitors to protect the valve stem. Standard grades may lack these high-performance additions.

Does it require a “Live Loading” system?

While it performs excellently with standard glands, using a Live Loading (Spring-loaded) system with Super Graphite packing is highly recommended for valves that undergo frequent thermal cycling to maintain constant sealing pressure.

Is this packing suitable for abrasive slurries?

Graphite is soft. For abrasive or gritty media, Kriloha recommends using this packing with Carbon Fiber or Aramid end-rings to prevent the gritty particles from reaching the soft graphite core.

How do I prevent the packing from “Sticking” to the stem?

The specialized surface lubricants in Kriloha Super Graphite are designed specifically to prevent bonding. However, proper cleaning of the stem during installation is critical for long-term “non-stick” performance.

How many rings should I use in a high-pressure valve?

Most high-pressure configurations utilize a 5-ring or 7-ring set. Often, the top and bottom rings are wire-reinforced (to prevent extrusion), while the center rings are high-density die-formed graphite for the primary seal.
