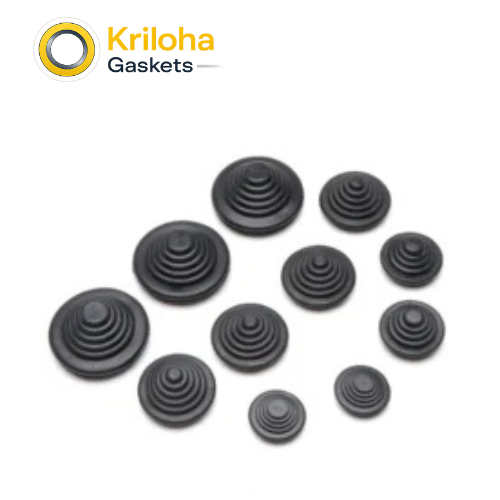

Tower Type Rubber Grommets

Tower Type (Stepped) Series
Stepped tower-type rubber grommet that press-fits into panel holes to protect cable entries on electrical cabinets. The tiered body is cut to suit the cable, giving dust-, rain- and abrasion-proof sealing.

Material

EPDM / Natural Rubber / Silicone (configurable)

Temp. Range

Consult datasheet

Max Pressure

Application Dependent

standard

DIN / ISO Standard

Tower Type Rubber Grommets, Black rubber tower protection coil wire protection ring electric box dust sleeve rubber ring sealing ring tower sealing ring

Technical Specifications

  • Cuttable Stepped Profile: Tiered tower design is trimmed to the required diameter to match different cable sizes.
  • Environmental Protection: Oil-, corrosion- and aging-resistant with waterproof, dustproof and anti-collision performance.
  • Tool-Free Install: Press-fits into the panel aperture; suits metal, wood and acrylic boards within the card-slot height.
  • Sealing Motion: Static cable-entry sealing and insulation.
  • Typical Applications: High- and low-voltage electrical cabinets, box transformers and cable distribution boxes.

Dimensions

  • Model / Diameter Range: 25 mm to 250 mm (cuttable to suit cable)
  • Note: Panel thickness must not exceed the grommet card-slot height. Non-standard sizes available on request.

Description

Tower Type Rubber Grommets, New Environmental Protection rubber plug oil resistance corrosion resistance, anti-aging dustproof and anti-collision damage. Waterproof and dustproof, wear-resistant and durable, complete specifications.   Product name: Tower type rubber grommets Model: 25-250mm Material: EPDM, natural rubber, silicone, etc. Material characteristics: O-shaped style is easy to install and disassemble, oil-resistant and corrosion-resistant Color: The product is black by default, some specifications require other colors, please contact us for consultation. How to use: Press it to the aperture (pay attention to check the aperture and plate thickness) Scope of application: It is mainly used for the protection of incoming and outgoing lines of high and low voltage electrical cabinets, box transformers, cable distribution boxes, etc. According to the thickness of the cable, the diameter can be freely cut to play the functions of dust-proof, rain-proof insulation and protection of wires and cables. Board hole thickness requirements Applicable to metal plate, wood board and acrylic board, the thickness of the board should not exceed the height of the card slot. Special Notes Support non-standard customization, welcome calls, drawings and samples for processing.

Applications

Related Products

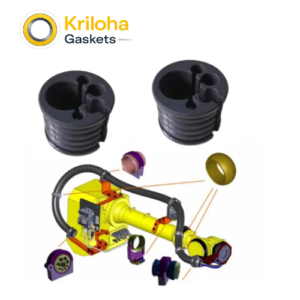

Customized Rubber Grommets For Industrial Robots
