Valve plate rubber gasket

Standard Industrial Series

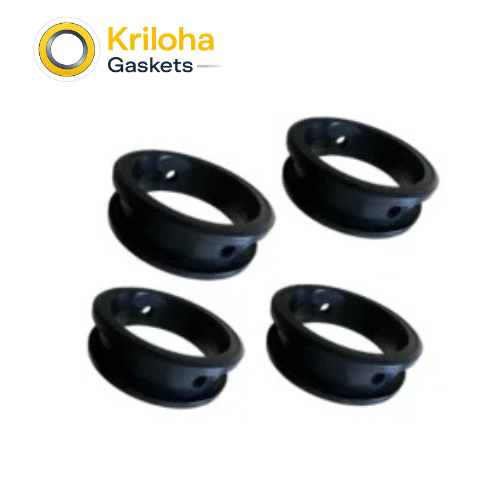

Rubber valve plate gasket that fills the gap between valve plate and seat to seal the medium and prevent leakage or backflow. Suits globe, check, butterfly, control and pressure-relief valves.

Material

Elastomer Compound

Temp. Range

Consult datasheet

Max Pressure

Application Dependent

standard

ISO 37 / ISO 48 / ISO 815 (Rubber Test Methods)

Butterfly valves are a common valve type that use rubber gaskets to provide sealing capabilities. The gasket is located between the valve plate and the valve seat, and is filled between the valve plate and the valve seat when the valve is closed. It prevents medium backflow, controls pressure release, and is used in some control valves. The rubber gasket on the butterfly valve is a specially designed sealing element mainly used for the sealing part of the valve. Its main function is to ensure the sealing performance of the valve and prevent medium leakage when the valve is closed.

Technical Specifications

Property Specification
Hardness (ISO 48) 67.5 ±5 IRHD
Tensile Strength (ISO 37) 11.2 MPa
Elongation at Break (ISO 37) 211%
Compression Set (ISO 815, 24 h @ 150°C) 15%
Sealing Motion Static seat/plate sealing
Typical Applications Globe, check, butterfly, control & pressure-relief valves

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Valve plate rubber gasket

Valve plate rubber gaskets are commonly used in various valve types to provide a sealing function. The following are some common valve types in which valve plate rubber gaskets are used:

Globe Valve

The valve plate rubber gasket is located between the valve plate and the valve seat. When the valve is closed, the rubber gasket is filled between the valve plate and the valve seat to achieve sealing.

Check Valve

The valve plate rubber gasket is used to prevent the reverse flow of the medium. In a check valve, a gasket is located on the valve disc or valve seat. When the medium flows back, the gasket is pushed open to allow the fluid to pass, and when the medium flows normally, the gasket seals to prevent reverse flow.
Physical properties
Property Test standard Value Unit
Hardness ISO 48 67.5+/-5 IRHD
Elongation at break ISO 37 211 %
Tensile strength ISO 37 11.2 Mpa
Compression set-24 hours at 150 ℃ Slab ISO 815 15 %
Ageing properties
Property
Hardness change ISO188 4 IRHD
Elongation at break change ISO188 -18.5 %
Tensile strength change ISO188 -18 %

Pressure Relief Valve

The valve plate rubber gasket is used to control the release of pressure. When the pressure exceeds the set value, the valve plate rubber gasket will open, allowing part of the medium to flow out to relieve the pressure on the system.

Control Valve

In some control valves, the valve plate rubber gasket is used to control the flow and pressure of the medium.

Butterfly Valve

The valve plate rubber gasket is often used in the sealing part of the butterfly valve. When the valve is closed, the gasket is filled between the valve plate and the valve seat to ensure sealing performance. The rubber gasket on the butterfly valve is a specially designed sealing element, which is mainly used for the sealing part of the butterfly valve. The following is a detailed introduction to the rubber gasket on the butterfly valve: Function: The main function of the rubber gasket on the butterfly valve is to provide the sealing performance of the valve. When the butterfly valve is closed, the rubber gasket acts as a sealing gasket and is filled between the valve plate and the valve seat to prevent medium leakage.
