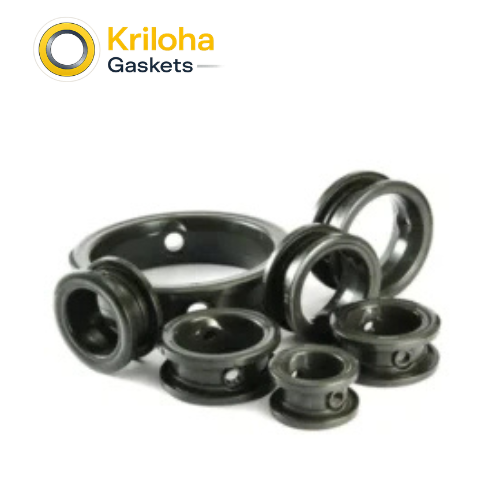

Valve Rubber Seal

Standard Industrial Series
Ring-form valve rubber seal fitted between the bonnet and seat to prevent fluid leakage at valve and pipe connections. Wear-, pressure- and corrosion-resistant for oil, gas, chemical and power service.

Material

Elastomer / Silicone / Metallic (configurable), 20–90 Shore A

Temp. Range

-60°C to +300°C (-76°F to +572°F)

Max Pressure

Application Dependent

standard

DIN / ISO Standard

In industrial and mechanical equipment, valves rubber seal play a vital role in controlling the flow of fluids.

Technical Specifications

  • Leak Prevention: Ring seal between bonnet and seat stops fluid leakage at valve and pipe joints.
  • High-Pressure & Temperature Resistance: Withstands demanding pressure and temperatures with a compound-dependent range to +300°C.
  • Wear & Corrosion Resistance: Durable against abrasion and chemical media.
  • Sealing Motion: Static seat/bonnet sealing in control and shut-off valves.
  • Typical Applications: Oil and gas, chemical, electric power and automatic-control valves.

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Introduction of Valve Rubber Seal

In industrial and mechanical equipment, valves play a vital role in controlling the flow of fluids. However, the effectiveness and reliability of a valve often depends on its sealing performance. In the sealing system of the valve, rubber seals play a key role. This article will introduce the definition, function and application areas of Valve Rubber Seal, and discuss its importance in improving sealing performance.

What is Valve Rubber Seal?

Valve Rubber Seal is a ring sealing element made of rubber material for sealing valves and pipe connections. It is usually located between the bonnet and seat of the valve and plays a role in preventing fluid leakage.
Product name Valve Rubber Seal
Material Rubber/ Silicone/ Metallic
Hardness (Shore A) 20 to 90
Applicable temperature °C -60 to 300
Color Black, orange, blue, yellow, green, custom
Size Standard/ Custom
Advantage Wear resistance, high pressure resistance, high temperature resistance, corrosion resistance
Application Oil and gas, Chemical, Electric power, Automatic control
Certification IOS: 9001, ISO: 14001
