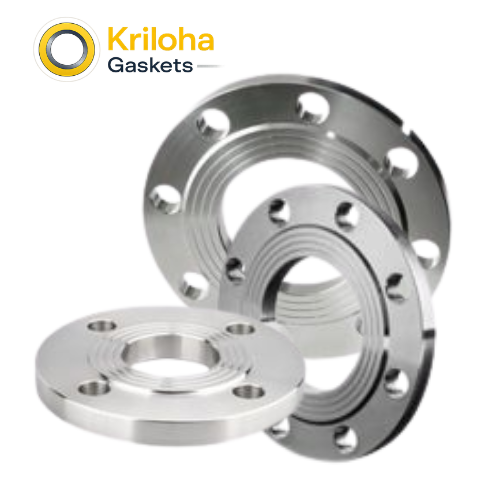

Asme Orifice Plate Flange Blind Plate Stainless Steel Plate Flange

At Kriloha Gaskets & Hardware, we recognize that modern fluid processing networks require components that combine standard pipeline security with highly specialized process versatility. Our ASME Stainless Steel Multi-Purpose Orifice and Blind Plate Flanges represent our engineered answer for “Multi-Functional-Joint-Security” and “Uncompromised-Isolation-Integrity.” As a leading manufacturer of high-grade industrial pipeline elements, Kriloha bridges the gap between raw metallurgy and exact geometric perfection, ensuring every plate flange functions flawlessly alongside your sealing gaskets.

The engineering of our ASME plate flange program is founded on Material-Purity and Deflection-Resistance. Rather than relying on lower-cost, unpredictable casting techniques that leave hidden internal air pockets, Kriloha utilizes fully certified, hot-forged stainless steel stock. By forcing the internal metal grain flow to trace the flat contour of the plate ring or solid blank, our components offer exceptional tensile strength. They comfortably withstand high bolt-torque loads across the ANSI bolt circle without warping, bowing, or relaxing under pressure over time. At Kriloha, we precision-turn the sealing surface to an absolute flatness finish, creating a highly reliable interface that mechanically locks your choice of industrial gasket sheets into position to resist blowout under sudden system pressure spikes.

Manufacturing and provisioning these critical flow-control connection pieces involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Face Roughness ($R_a$) Calibration. We collaborate directly with your project engineering, procurement, and facility maintenance teams to supply precise internal bores tailored to standard pipe outer diameters, or completely solid blank configurations to serve as blind terminal plates. By choosing Kriloha Gaskets & Hardware as your manufacturing partner, you are investing in a “Future-Proof” industrial alliance that maximizes your installation’s uptime through advanced material science and micro-tolerance engineering.

Primary Use Cases

Differential Pressure Flow Measurement: Acts as a heavy-duty flat carrier or clamping plate ring within orifice piping runs to help measure or restrict the flow rates of gases, steam, and clean liquid chemicals.
Pipeline Isolation & Maintenance Termination: Deployed as a temporary or permanent blind plate blank to safely isolate lines during plant maintenance, system retrofits, or pressure testing cycles.
Hygienic Process Pipelines: Ideal for routing fluids in food processing, dairy bottling lines, cosmetics, and beverage facilities where smooth, non-porous stainless surfaces withstand aggressive clean-in-place (CIP) washdowns.
Corrosive & Marine Utilities: Secure connection or isolation joints for seawater cooling networks, desalination skids, reverse osmosis modules, and offshore utility piping loops.
Modular OEM Machinery Skids: Compact structural connection rings used to integrate prefabricated manifold piping to flat-faced valves, strainers, and storage tanks.

Frequently Asked Questions (FAQs)

How can a single product function as a Plate Flange, an Orifice Flange, and a Blind Plate?

This product family shares an identical hubless, flat-plate exterior geometric profile and ANSI bolt circle. By varying the central machining, the plate is adapted for different roles: a open clearance bore creates a standard welding plate flange, adding custom pressure taps or clamping configurations converts it into an orifice carrier ring, and leaving the center completely un-bored produces a solid blind plate used to block fluid flow.

Why should a project specify a hubless Flat Plate Flange instead of a traditional hubbed flange?

Because a plate flange completely lacks a raised collar or tapered hub, it uses significantly less raw material during manufacturing. This makes it a highly compact, lightweight, and cost-effective alternative for standard process networks where the extra structural reinforcement of a heavy hub is not functionally required.

What specific welding configuration is required to install the open plate version?

An ASME plate welding flange requires a standard double fillet weld setup for proper installation: one robust fillet weld around the rear side where the plate meets the outer diameter of the pipe wall, and a secondary fillet weld along the inside bore face near the flat mating surface. Solid blind plate configurations do not require welding, as they bolt directly over an existing open flange face.

When should I select Grade 316L stainless steel over Grade 304 for this product?

Grade 304 is highly economical and excellent for freshwater, food-grade utilities, and standard atmospheric applications. Grade 316L contains 2–3% added molybdenum and ultra-low carbon content, making it mandatory for harsher environments exposed to sea salt, brackish water, or chemical acids where pinhole pitting and weld-zone intergranular corrosion must be strictly avoided.

Are customized dimensions or material test reports available from Kriloha?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions, hardness values, yield/tensile strength data, and explicit compliance with international industrial standards. Furthermore, our flexible CNC machining paths allow us to custom-bore the inner diameter or alter the bolt patterns to match your proprietary CAD models.
