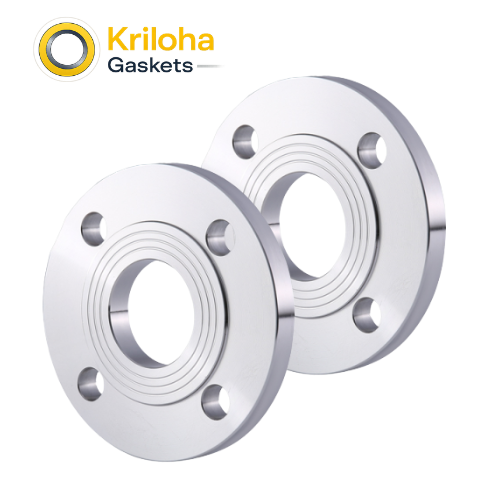

Flange Plate Pipe Cover Asme Sch40

At Kriloha Gaskets & Hardware, we recognize that modern fluid networks demand components that seamlessly combine standard pipeline security with reliable terminal isolation. Our ASME Schedule 40 Flange Plate Pipe Covers represent our engineered answer for “Multi-Functional-Joint-Security” and “Uncompromised-Termination-Integrity.” As a leading manufacturer of high-grade industrial pipeline elements, Kriloha bridges the gap between raw metallurgy and exact geometric perfection, ensuring every plate cover functions flawlessly alongside your sealing gaskets.

The engineering of our ASME Schedule 40 program is founded on Structural-Uniformity and Deflection-Resistance. Rather than relying on lower-cost, unpredictable casting techniques that leave hidden internal air pockets or structural micro-voids, Kriloha utilizes fully certified, hot-forged steel stock. By forcing the internal metal grain flow to trace the flat contour of the plate ring or solid blank, our components offer exceptional tensile strength. They comfortably withstand high bolt-torque loads across the ANSI bolt circle without warping, bowing, or relaxing under system pressure over time. At Kriloha, we precision-machine the flat sealing surface on advanced CNC turning centers, finishing them with controlled phonographic serrations ($R_a$ finish) that mechanically bite into the gasket matrix to resist blowout under sudden system pressure surges.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Face Roughness Calibration. We collaborate directly with your project engineering, procurement, and facility maintenance teams to supply precise internal bores tailored to standard pipe outer diameters, or completely solid blank configurations to serve as terminal covers. By choosing Kriloha Gaskets & Hardware as your manufacturing partner, you are investing in a “Future-Proof” industrial alliance that maximizes your installation’s uptime through advanced material science and micro-tolerance engineering.

Primary Use Cases

Pipeline Termination & End-of-Line Covers: Deployed as a solid flat pipe cover or blanking plate to safely seal off dead ends of Schedule 40 piping systems during maintenance or future expansion planning.
Pressure Vessel Inspection Ports: Acts as a bolt-on, removable flat hatch cover for inspection cleanouts and drainage access ports on industrial storage tanks.
Moderate-Pressure Plant Utilities: Open plate configurations used as reliable connection joints for primary factory utility lines handling industrial water, cooling tower loops, and compressed air lines.
Commercial HVAC & Utility Risers: Budget-efficient, high-strength flat connections or end-caps for chilled water distribution networks and commercial facility heating lines.
Modular Industrial Process Skids: Compact structural flanges used to join or cap prefabricated piping manifolds directly at the boundaries of heavy machinery modules.

Frequently Asked Questions (FAQs)

What is the difference between the open “Plate Flange” and the solid “Pipe Cover” version?

This product family shares an identical hubless exterior geometric profile and ASME bolt circle. By varying the central machining, the plate is adapted for different roles: an open clearance bore matched to a Schedule 40 profile creates a standard welding plate flange, while leaving the center completely un-bored produces a solid blind plate/pipe cover used to block fluid flow or cap a pipeline path.

Why choose a hubless Flat Plate Flange/Cover over a traditional hubbed flange?

Because a plate flange completely lacks a raised collar or tapered hub, it uses significantly less raw material during manufacturing. This makes it a highly compact, lightweight, and cost-effective alternative for standard process networks where the extra structural reinforcement of a heavy hub is not functionally required by the system design parameters.

What specific welding configuration is required to install the open version of this flange?

An ASME plate welding flange requires a standard double fillet weld setup for proper installation: one robust fillet weld around the rear side where the plate meets the outer diameter of the pipe wall, and a secondary fillet weld along the inside bore face where the pipe end sits flush with the flat face. Solid pipe cover configurations do not require welding, as they bolt directly over an existing open flange face.

In what material matrices is this product typically provisioned?

Depending on your application environment, Kriloha supplies these components in ASTM A105 Carbon Steel (finished with anti-rust lacquer or hot-dip galvanization) for non-corrosive water, oil, and gas lines, or Stainless Steel 304/316L for clean utility lines, food-grade processing, or aggressive chemical flow networks.

Are Material Test Reports (MTRs) provided with these plate flanges and covers?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions, hardness values, yield/tensile strength data, and explicit compliance with international industrial standards to guarantee complete code traceability.
