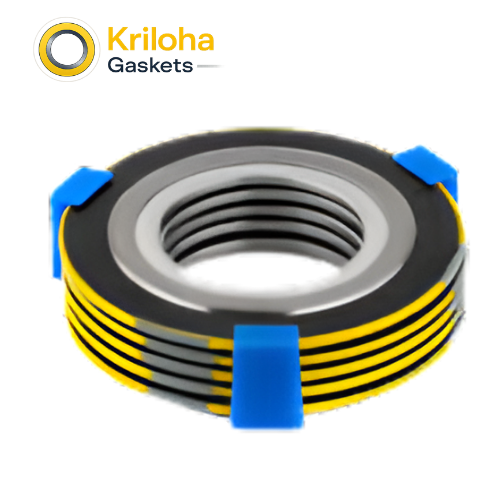

Low Stress Spiral Wound Gaskets (SW600 LS / LSI)

SW600 LS / LSI (Low Stress) Series
Low-stress spiral wound gasket (SW600 LS/LSI) that seats at about half the bolt load of a standard SWG. Ideal for fragile glass-lined, fiberglass or light flanges; the LSI inner ring acts as a compression stop.

Material

SS Winding + Flexible Graphite / PTFE Filler

Temp. Range

-200°C to +450°C (-328°F to +842°F)

Max Pressure

ASME Class 150–300 (Application Dependent)

standard

ASME B16.20 / EN 1514-2

Core Features

  • Low Seating Stress Design: Specifically engineered to achieve a gas-tight seal at significantly lower bolt loads (approx. 5,000 to 10,000 psi) compared to standard SWGs.
  • Modified V-Profile Winding: Features a unique metallic winding geometry that maximizes compressibility without sacrificing the “spring-back” recovery.
  • High-Protrusion Filler: Designed with a specialized filler height that ensures the soft sealing material makes contact with the flange faces long before the metal windings, protecting delicate hardware.
  • LSI Configuration: Includes both an inner and outer ring to provide maximum structural stability and prevent winding buckling even under low torque.
  • Broad Compatibility: Available with Flexible Graphite or PTFE fillers to handle a wide range of chemical and thermal environments.
  • Flange Protection: Prevents “flange rotation” and bowing in lighter-weight flanges (Class 150 and 300).

Technical Specifications

Property Specification
Low Seating Stress Gas-tight seal at approx. 5,000–10,000 psi — ~50% of a standard SWG
Modified V-Winding Yielding geometry maximizes compressibility while keeping spring-back
High-Protrusion Filler Soft filler contacts the flange before the metal, protecting delicate faces
LSI Configuration Inner + outer rings give a compression stop and anti-buckling support
Filler Options Flexible graphite or PTFE
Typical Applications Glass-lined/fiberglass vessels and light Class 150/300 flanges prone to warping

Dimensions

Available for Class 150 and 300 flanges. Refer to SKU or technical drawing for exact NPS, class and ring dimensions.

Description

At Kriloha Ltd., we recognize that not every flange is built for brute force. In many specialized chemical and pharmaceutical processes, the piping and vessels are constructed from fragile materials like glass-lined steel, fiberglass, or thin-gauge alloys. Using a standard spiral wound gasket in these systems often leads to disaster—the high bolt load required to seat the gasket can warp or crack the flanges themselves. The Kriloha SW600 LS (Low Stress) and LSI (Low Stress with Inner Ring) series were developed to bridge the gap between high-performance metallic sealing and delicate hardware requirements. As a top supplier of rubber seals and gaskets, Kriloha Gaskets has re-engineered the classic spiral wound architecture for this “soft-touch” application. The secret lies in our Soft-Setâ„¢ Engineering. We utilize a modified V-shape metallic winding that is tensioned during the manufacturing process to be more “yielding” than a standard gasket. This allows the gasket to compress and conform to the flange surface at roughly 50% of the seating stress required by a conventional ASME B16.20 gasket. Furthermore, the filler material (graphite or PTFE) is designed with a specific protrusion height. This ensures that the soft sealing element creates a primary barrier immediately upon contact, while the metallic winding provides the secondary spring-back to handle pressure surges. The LSI version is particularly popular because the inner ring provides a definitive compression stop. This prevents the maintenance team from accidentally over-tightening the bolts and “bottoming out” the gasket, which is the most common cause of flange damage in fragile systems. By choosing Kriloha Low Stress gaskets, you are investing in a product that respects the mechanical limits of your equipment while providing the blowout resistance and fire-safety of a metallic seal. These gaskets are often used as “problem solvers” in facilities where Class 150 flanges consistently leak or warp. Kriloha’s commitment to precision engineering means you no longer have to choose between a leaky soft gasket and a flange-damaging hard gasket. Our SW600 LS series offers the best of both worlds: extreme sealing integrity and gentle mechanical interaction.

Applications

  • Glass-Lined Steel Flanges: Ideal for fragile piping systems where high bolt torque would crack the glass lining.
  • FRP (Fiberglass Reinforced Plastic) Piping: Providing a metallic-grade seal for non-metallic piping systems.
  • Thin-Wall Aluminum or Plastic Vessels: Used in food processing and specialty chemical storage where flange thickness is minimal.
  • Misaligned or Older Flanges: Excellent for applications where bolts cannot be tightened to standard specifications due to age or hardware limits.
  • Large Diameter Thin Flanges: Sealing large manways on atmospheric tanks that lack the rigidity for high-tension bolting.
