Spiral Wound Gasket for Heat Exchangers

Heat Exchanger SWG (Pass-Bar) Series

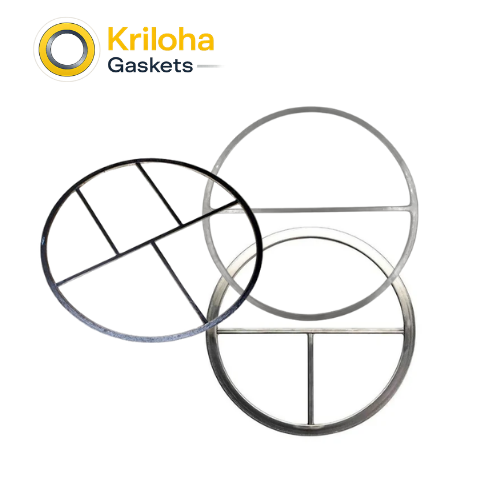

Heat-exchanger spiral wound gasket with precision-welded partition pass bars that stop inter-pass fluid bypass. High-recovery winding maintains seal through start-stop thermal cycling on shell-and-tube units.

Material

SS / Duplex / Monel / Titanium Winding + Flexible Graphite Filler

Temp. Range

-200°C to +450°C (-328°F to +842°F)

Max Pressure

ASME Class 150–2500 (Application Dependent)

standard

ASME B16.20 / TEMA

• Integrated Pass Bars: Custom-engineered partition ribs (pass bars) are precision-welded to the gasket to match the heat exchanger’s internal configuration.
• High Thermal Recovery: Designed with a “spring-back” winding density that maintains a seal during the extreme thermal expansion and contraction cycles of heat transfer.
• Custom Geometry: Available in large diameters (exceeding 2,500mm) with various rib shapes including single-pass, multi-pass, and specialized “X” or “Y” patterns.
• TEMA Compliance: Fully engineered to meet the standards of the Tubular Exchanger Manufacturers Association (TEMA) for shell-and-tube units.
• Advanced Metallurgy: Windings and pass bars available in Duplex Stainless Steel, Monel, or Titanium to combat aggressive cooling media and high-pressure steam.
• Reinforced Structural Integrity: Features heavy-duty inner and outer rings to provide the rigidity required for large-diameter handling and installation.

Technical Specifications

Property Specification
Partition Pass Bars Welded ribs matched to single-, multi-pass or X/Y patterns to stop bypass
Thermal Recovery Spring-back winding maintains seal through expansion/contraction cycles
Winding / Bar Metallurgy Duplex stainless, Monel or titanium for aggressive media and steam
Structural Rings Heavy-duty inner and outer rings for large-diameter rigidity
Sealing Motion Static tube-sheet / flange sealing
Typical Applications Shell-and-tube heat exchangers per TEMA

Dimensions

Custom geometry to TEMA drawings, available in large diameters exceeding 2,500 mm. Refer to SKU or technical drawing for exact diameter, pass-bar width and ring dimensions.

Description

At Kriloha Ltd., we recognize that heat exchangers represent one of the most complex sealing challenges in any industrial facility. Unlike standard pipe flanges, heat exchanger joints must manage internal fluid separation while enduring massive thermal transients. The Kriloha Heat Exchanger Spiral Wound Gasket is a specialized evolution of our core SWG technology, engineered to maximize thermal efficiency and eliminate the risk of “fluid bypass.” The defining characteristic of this gasket is the integration of partition pass bars. In a multi-pass heat exchanger, fluids are routed through specific tube bundles; any leak between these passes (bypass) results in a significant drop in heat transfer efficiency. Kriloha solves this by precision-welding partition ribs—typically double-jacketed or solid metal faced with graphite—directly to the inner ring or the spiral winding. We utilize Kriloha-Therm™ welding technology, which ensures a seamless transition between the circular seal and the straight pass bars, eliminating potential leak paths at the junction points. Because heat exchangers are subject to “start-stop” operations, the flanges often undergo significant bowing or rotation. A standard gasket may take a “permanent set” and leak when the system cools down. Kriloha’s heat exchanger gaskets are wound with a specific Elastic-Recovery Core. This high-density winding acts as a heavy-duty mechanical spring that “breathes” with the equipment, maintaining constant contact pressure against the tube sheet regardless of the thermal state. As a top supplier of rubber seals and gaskets, Kriloha Ltd. also offers Soft-Wound variations for older or lighter heat exchanger flanges. These gaskets achieve a gas-tight seal at significantly lower seating stresses, protecting delicate or warped flange faces from further damage. Our technical team works directly with your TEMA drawings to ensure that pass bar widths and locations are matched to the millimeter. When you install a Kriloha Heat Exchanger Gasket, you are ensuring that your process runs at peak thermal performance with zero internal or external leakage.

Applications

• Shell and Tube Heat Exchangers: The primary sealing solution for main flange and partition plates.
• Condensers and Reboilers: Critical for maintaining separation between cooling water and process fluids.
• High-Pressure Coolers: Used in oil refineries and chemical plants where fluid bypass must be eliminated.
• Air-Cooled Heat Exchangers (Fin-Fans): Providing reliable sealing for header box plugs and covers.
• Intercoolers and Aftercoolers: Standard equipment for large-scale industrial compressor systems.
