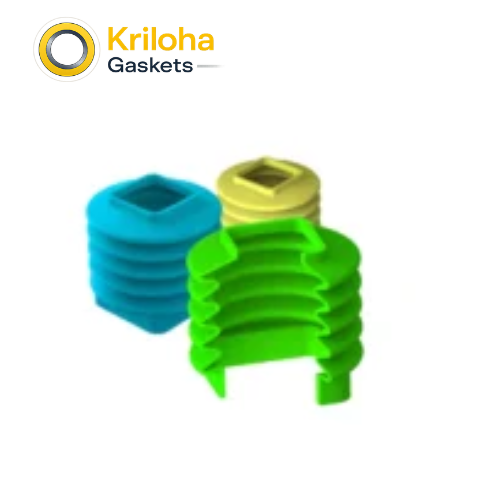

NBR Rubber Dust Proof Bellow For Marble Cutting Machines

Dust-Proof Bellow Series
NBR (nitrile) dust-proof bellow for marble cutting machine roller mechanisms. Oil-resistant 60 Shore A nitrile flexes with reciprocating motion while sealing out dust and abrasive slurry.

Material

NBR (Nitrile) 60 Shore A

Temp. Range

-30°C to +100°C (-22°F to +212°F)

Max Pressure

Application Dependent

standard

DIN / ISO Standard

This Bellow is made of Nitrile rubber and used on the roller mechanism of marble cutting machines We mainly make customizing rubber parts,please kindly contact us for more details.

Technical Specifications

Property Specification
Material NBR (Nitrile) 60 Shore A
Tensile Strength 12.5 MPa
Elongation 365%
Compression Set (100°C × 24 h) 21.8%
Media Resistance Non-polar/weakly polar oils; good abrasion resistance
Sealing Motion Reciprocating dust-proof cover
Typical Applications Marble cutting machine roller mechanisms

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Nitrile rubber has very good oil resistance, basically does not swell to non-polar and weakly polar oils, but has poor resistance to aromatic hydrocarbons and chlorinated hydrocarbon oils. Chemical resistance is better than natural rubber, but its resistance to strong oxidizing acids is poor. The abrasion resistance is 30%-45% higher than that of natural rubber. When this Bellow is used on the roller structure of the marble cutting machine, it needs to reciprocate, and it will be in contact with a certain amount of oil. It also needs to be dustproof, so nitrile rubber is finally used. If you need to customize your rubber parts, you could kindly offer the inormation as below, we could make the quotation based on that. Information for quotation and customizing
Main Features
  • Material : NBR Rubber
  • Color : As Requested
  • Hardness : SHA 60
  • Features: Oil Resistance.
Technical Parameter
Properties Unit Data
Tensile Strength Mpa 12.5
Elongation % 365
Compression Set  ( 100℃ x 24 h ) % 21.8

Applications
