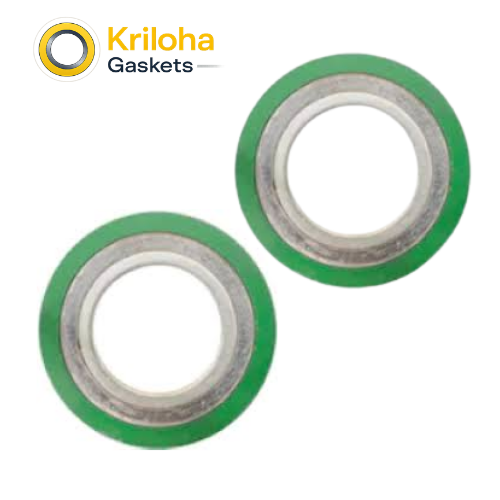

Standard Spiral Wound Gasket

Style CG / CGI (Spiral Wound) Series
Semi-metallic spiral wound gasket with a V-shaped metallic winding and soft filler that acts as a spring for recovery under thermal and pressure cycling. Solid outer ring centers the gasket and limits over-compression.

Material

SS304 / SS316L Winding + Flexible Graphite / PTFE Filler + CS/SS Outer Ring

Temp. Range

-200°C to +450°C (-328°F to +842°F)

Max Pressure

ASME Class 150–2500 (Application Dependent)

standard

ASME B16.20 / EN 1514-2

Core Features

  • Mechanical Resilience: The V-shaped metallic winding acts as a heavy-duty spring, providing the gasket with exceptional “memory” and recovery properties.
  • Precision Winding: Engineered with Kriloha’s proprietary automated tensioning to ensure consistent sealing density across the entire circumference.
  • Material Versatility: Available in 304, 316L, and exotic alloys (Inconel, Monel) with High-Purity Graphite or Virgin PTFE fillers.
  • Blow-out Resistance: Integrated solid metal outer centering rings prevent gasket displacement under high-pressure surges.
  • Extreme Performance Range: Capable of sealing from cryogenic temperatures up to 450°C (850°F) in oxidizing atmospheres.
  • Global Compliance: Fully compliant with ASME B16.20, EN1514-2, and API 6FB fire-safe standards.

Technical Specifications

Property Specification
Winding SS304, SS316L or exotic alloy (Inconel, Monel)
Filler High-purity flexible graphite or virgin PTFE
Outer Ring Carbon steel or stainless steel centering / compression-stop ring
Mechanical Recovery V-profile winding acts as a spring under thermal and pressure cycling
Inner Ring Available for Class 900+ to prevent inward buckling
Sealing Motion Static flange sealing
Typical Applications Refineries, petrochemical heat exchangers, steam lines and high-pressure valves

Dimensions

Available for ASME B16.5 / B16.47 flanges across pressure classes. Refer to SKU or technical drawing for exact NPS, pressure class and ring dimensions.

Description

At Kriloha Ltd., we have perfected the engineering of the Standard Spiral Wound Gasket (SWG) to meet the rigorous demands of modern industrial sealing. As a top-tier supplier of rubber seals and gaskets, our Kriloha Gaskets brand represents the gold standard in semi-metallic technology. The architecture of a spiral wound gasket is unique; it consists of a pre-formed V-shaped metallic strip—precision-wound with layers of soft, non-metallic filler. This “V” profile is the heart of the gasket’s performance, acting as a mechanical spring that provides exceptional recovery under fluctuating temperatures and pressures. This resilience is critical in systems where thermal cycling or pressure surges can cause standard flat gaskets to fail. If a flange expands slightly due to heat, the Kriloha winding expands with it, maintaining a constant seal. Our manufacturing process prioritizes Winding Density Control (WDC). By utilizing automated tensioning systems, Kriloha ensures that the sealing element is neither too soft (which leads to leakage) nor too dense (which prevents proper seating). For most industrial applications, we utilize high-purity flexible graphite as the filler material, offering excellent chemical resistance and thermal stability. In highly corrosive environments, virgin PTFE is employed. To ensure structural integrity, our standard configuration includes a solid carbon steel or stainless steel outer ring. This ring serves two vital functions: it centers the gasket perfectly within the bolt circle and acts as a compression stop, protecting the sealing element from being over-crushed during installation. We also offer inner rings, which are essential for high-pressure classes (Class 900 and above) to prevent the winding from buckling inward. As the leading provider of sealing solutions, Kriloha Gaskets focuses on reducing your facility’s Fugitive Emissions. Our gaskets are designed to create a gas-tight seal even on slightly imperfect flange faces, significantly lowering the risk of environmental non-compliance and hazardous leaks. Every Kriloha SWG is color-coded for instant on-site identification, reducing human error during maintenance turnarounds. When you choose Kriloha, you aren’t just buying a component; you are investing in decades of metallurgical expertise and a commitment to zero-leakage performance.

Applications

  • High-Pressure Steam Systems: Ideal for power plant boiler piping and turbine connections.
  • Oil & Gas Refineries: Used in high-temperature hydrocarbon processing and offshore platforms.
  • Chemical Processing: Critical for reactive media where leak prevention is a safety priority.
  • Petrochemical Facilities: Standardized for heat exchanger inlets and heavy-duty flange joints.
  • Water & Waste Management: High-durability sealing for large-diameter pumping stations.
  •
