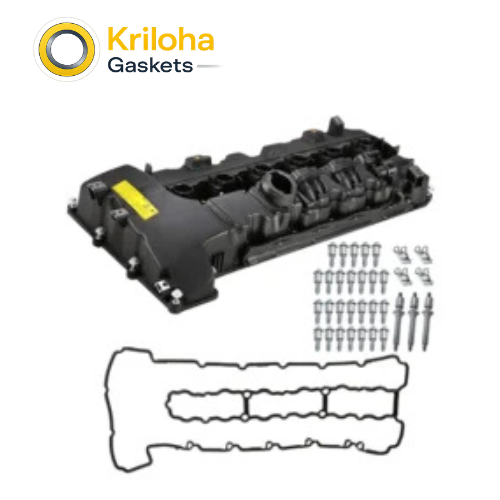

Valve Cover Gasket

Standard Industrial Series
NBR (nitrile) valve cover gasket that seals the engine cylinder head against oil leakage. Heat-resistant 70 Shore A nitrile with good elasticity for durable, leak-free engine sealing over a large area.

Material

NBR (Nitrile) 70 Shore A

Temp. Range

-30°C to +100°C (-22°F to +212°F)

Max Pressure

Application Dependent

standard

DIN / ISO Standard

The valve cover gasket is one of the most important sealing parts in the engine. It is located on the top of the engine and corresponds to the oil pan. It is one of the most important gaskets to protect the cylinder head from damage and prevent oil leakage.

Technical Specifications

  • Oil Sealing: Retains lubricating oil at the valve cover, protecting the cylinder head and preventing engine oil leaks.
  • Mechanical Strength: Tensile strength ≥15 MPa, elongation ≥250% and tear strength ≥25 kN/m.
  • Low-Temperature Flexibility: Brittle temperature ≤-30°C (down to ≤-45°C grade) with 70±5 Shore A hardness.
  • Sealing Motion: Static gasket sealing between the valve cover and cylinder head.
  • Typical Applications: Automotive engine valve covers and cylinder-head sealing.

Dimensions

Available in standard metric and imperial sizes. Refer to SKU or technical drawing for exact ID, OD, and cross-section tolerances.

Description

Material NBR
Hardness 70±5 Shore A
Brittle temperature ≤-30 or ≤-45℃
Tensile strength ≥15.0MPa
Elongation at break ≥250%
Tear strength ≥25.0kN/m

Introduction

Valve cover gasket is generally made of a sealing material, usually nitrile rubber or silicone. This sealing material is widely used in automobile engines because of its heat resistance, good elasticity and sealing properties. The valve cover gasket covers a large area and must take into account both sealing and durability. When lubricant from one pipe flows to another pipe, it is retained at the valve cover by the valve or valve spring. In this way, the various instruments and mechanical parts of the car engine can fully obtain the lubricating oil required for operation, thus ensuring the normal operation of the engine. Therefore, if the valve cover gasket leaks, it will have a serious impact on the normal operation of the engine.
