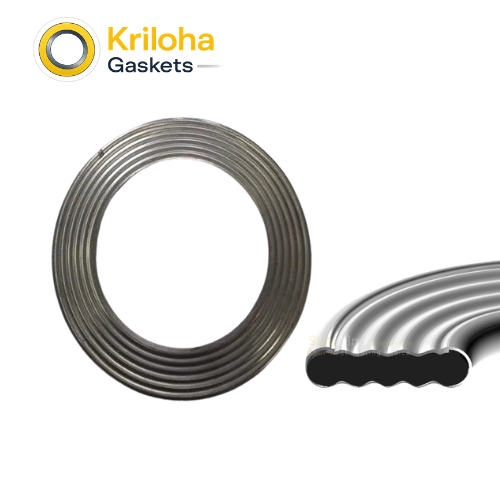

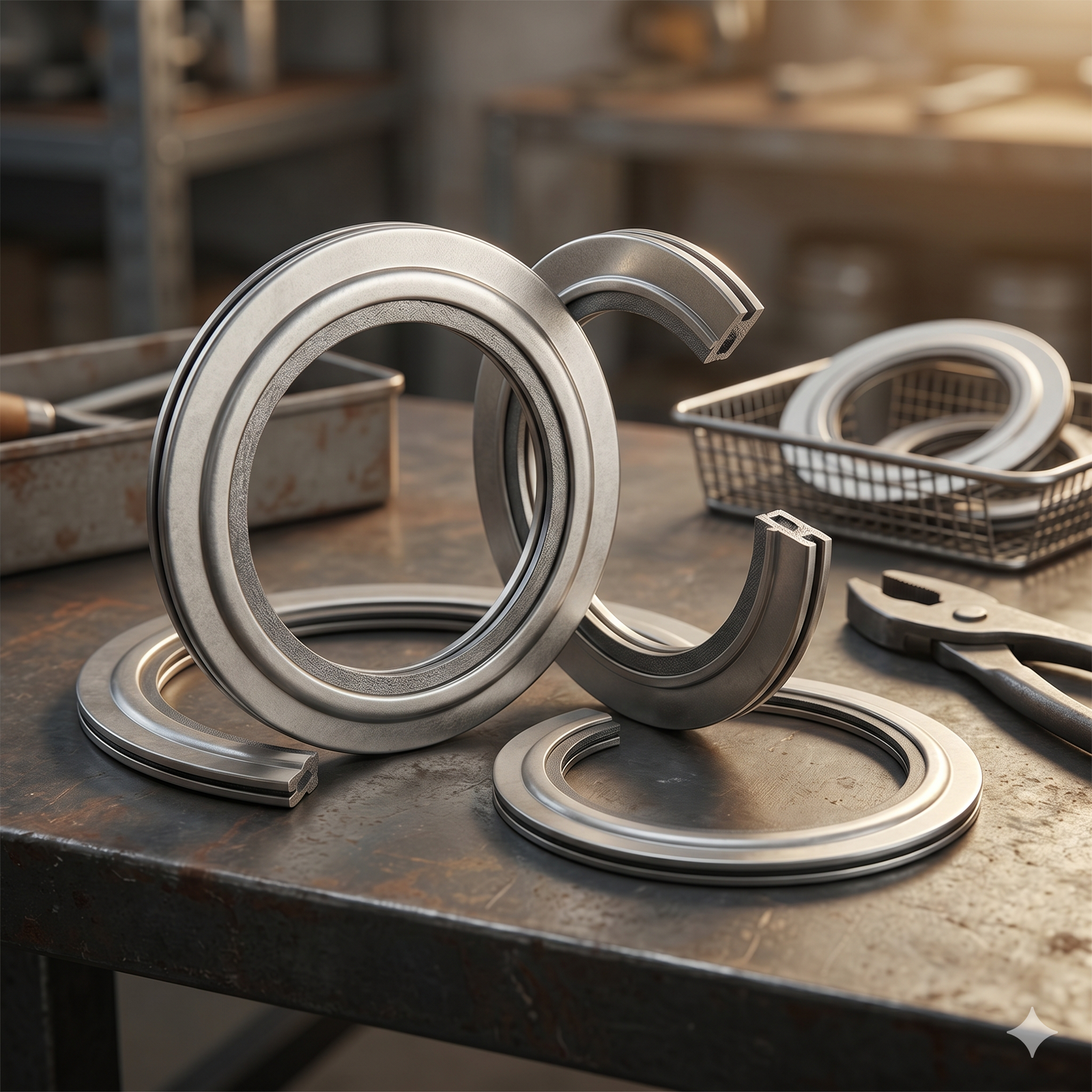

Corrugated Double Jacketed Gasket

Corrugated Double Jacketed (CDJ) Series
Corrugated double jacketed gasket whose ribbed metal jacket concentrates bolt load on the peaks for a tight seal at low torque. Graphite filler springs back to follow the flange through thermal cycling.

Material

SS316L / Soft Iron / Inconel / Monel Jacket + Graphite / Ceramic Filler

Temp. Range

Up to +1000°C (metal & filler dependent)

Max Pressure

Application Dependent

standard

EN 12560 / ASME B16.21

Core Features

  • Enhanced Sealability Geometry: Features a metallic jacket that has been precision-corrugated (ribbed) to create a series of concentric high-pressure “sealing points” across the flange face.
  • Reduced Seating Stress: The corrugated profile concentrates the bolt load onto the peaks of the ribs, allowing for a gas-tight seal at significantly lower torque than a standard flat-faced double jacket gasket.
  • Internal Soft Filler Core: Typically filled with high-purity flexible graphite or ceramic fiber, providing the necessary “spring-back” and thermal resilience for high-temperature service.
  • Excellent Thermal Cycling Recovery: The “bellows” effect of the corrugated jacket allows the gasket to expand and contract with the flange during rapid temperature fluctuations.
  • High-Temperature Performance: Depending on the metal selected (e.g., Stainless Steel, Inconel, or Monel), these gaskets can reliably operate in environments up to 1000°C.
  • Blow-out Security: The double-overlap construction of the metal jacket completely encapsulates the filler, providing a physical barrier against high-pressure surges.

Technical Specifications

Property Specification
Corrugated Jacket Concentric ribs create high-pressure sealing points across the face
Low Seating Stress Load focused on rib peaks seals at lower torque than flat double jackets
Soft Filler Core Flexible graphite or ceramic fiber for spring-back and thermal resilience
Thermal Cycling Bellows effect lets the gasket breathe with the flange
Temperature Up to +1000°C depending on metal/filler
Blow-Out Security Double-overlap jacket fully encapsulates the filler
Typical Applications Heat exchangers and pressure vessels with thermal cycling

Dimensions

Made in circular, oval or rectangular profiles with pass bars; jacket 0.4–0.5 mm. Refer to SKU or technical drawing for exact dimensions.

Description

At Kriloha Ltd., we recognize that in heavy industry, “static” conditions are a myth. Heat exchangers and pressure vessels are constantly moving—expanding as they heat up and contracting as they cool. A standard flat gasket often fails during these cycles because it lacks the “memory” to follow the flange. The Kriloha Corrugated Double Jacketed Gasket is engineered specifically to solve this “thermal lag.” As the top supplier of high-performance rubber seals and gaskets, Kriloha Gaskets has combined the structural strength of a jacketed seal with the mechanical flexibility of a corrugated profile. The secret to this gasket’s success is its “Point-Contact” physics. In a standard flat double jacket gasket, the bolt load is spread across the entire surface area. In the Kriloha Corrugated version, the load is focused on the peaks of the corrugations. This creates a massive localized seating stress, allowing the metal to “bite” into the flange imperfections even if the bolts aren’t tightened to extreme levels. Inside the jacket, we use a high-purity Expanded Graphite filler. When compressed, this filler acts like a high-tension spring, pushing back against the corrugated walls and maintaining the “rib” pressure even as the flange moves. Manufacturing these gaskets requires the highest level of metallurgical precision. At Kriloha, we utilize a proprietary Cold-Forming process to create the corrugations, ensuring the metal jacket (typically 0.4mm or 0.5mm thick) does not become brittle or cracked during shaping. We can integrate complex pass-partition bars for heat exchangers, ensuring every rib is perfectly aligned with the flange faces. Whether you choose 316L Stainless Steel for corrosion resistance or Soft Iron for cost-effective steam service, Kriloha ensures every gasket is batch-tested for rib height and filler density. By choosing Kriloha Ltd., you are moving beyond simple containment and investing in a dynamic sealing technology that adapts to the lifecycle of your equipment.

Applications

  • Shell and Tube Heat Exchangers: Particularly those with fluctuating temperatures or “bad actor” flanges that struggle to seal with flat gaskets.
  • Gas Turbines & Turbochargers: Managing the intense heat and vibration of high-speed exhaust and intake systems.
  • Petrochemical Reactors: Ideal for high-pressure vessels where frequent thermal cycling occurs.
  • Steam Valve Bonnets: Providing a rugged, high-recovery seal for large-scale industrial steam valves.
  • Exhaust Manifolds: Used in heavy-duty marine and power-generation engines to handle thermal expansion.
  •
