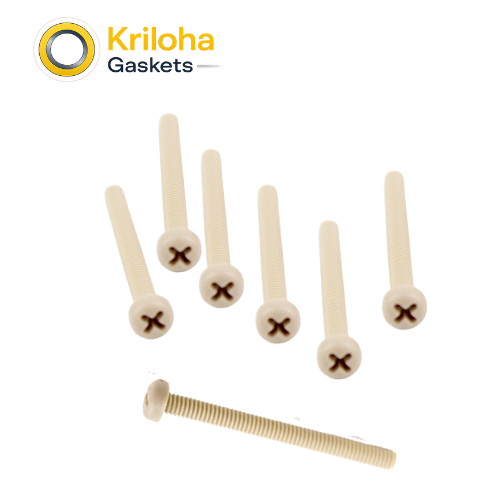

M4x40 pan head cross PEEK screw

At Kriloha Ltd., we understand that modern electronics and clean-room manufacturing require fasteners that assemble quickly without compromising the operating environment. Our M4x40 Pan Head Cross PEEK Screws are our engineered answer for “Rapid-Assembly-Purity” and “High-Isolation-Clamping.” As a premier provider of advanced polymer components, Kriloha has developed a specialized line of PEEK fasteners that balances efficient installation mechanics with the absolute environmental immunity required for frontier technology.

The engineering of our pan head series is based on Load-Distribution and Tool-Centering. Because the M4x40 represents a relatively long, slender profile, preventing off-axis torque during installation is critical. At Kriloha, we utilize precision micro-molding to ensure the cross-recess drive is perfectly centered and deeply formed, preventing the “cam-out” that strips inferior polymer screws. Combined with a perfectly flat under-head bearing surface, this creates a “Failure-Resistant” fastening system that secures your delicate assemblies without crushing, rusting, or short-circuiting.

Manufacturing these advanced polymer components involves strict Dimensional and Thread-Pitch Verification. We ensure that the entire 40mm threaded shank provides a flawless, anti-galling fit, delivering the reliable, creep-resistant performance required for high-temperature and vacuum applications. Whether you are mounting complex PCBs in an avionic enclosure or assembling medical diagnostic hardware, Kriloha PEEK Screws provide the exact environmental durability your facility demands. By choosing Kriloha Ltd., you are investing in a “Future-Proof” material technology that secures your highest-value electronics.

Primary Use Cases

Consumer Electronics & PCBs: The industry standard for mounting printed circuit boards (PCBs) to standoffs, where an accidental drop of a metal screw could cause a catastrophic short circuit.
Medical & Surgical Instruments: Ideal for assembling diagnostic equipment and reusable tools that require repeated high-temperature sterilization (autoclaving) and absolute non-magnetic properties.
Semiconductor Manufacturing: Utilized in clean-room environments and wafer-handling equipment due to PEEK’s exceptionally low particulate generation and outgassing.
Aerospace & Avionic Enclosures: Fastening lightweight instrument panels, drone components, and sensors where every gram of weight savings is critical.
Analytical Laboratory Equipment: Securing casing and fluid-handling components in liquid chromatography (HPLC) systems exposed to corrosive reagents.

Frequently Asked Questions

What do the dimensions “M4x40” specifically mean?

“M4” denotes a standard metric thread diameter of 4 millimeters. “40” signifies that the length of the threaded shank, measured from directly underneath the flat bottom of the pan head to the tip of the screw, is exactly 40 millimeters.

Why use a Pan Head instead of a Countersunk head?

A pan head sits entirely on top of the mating surface. This is ideal for thin materials (like sheet metal or PCBs) that are too thin to accommodate the deep, conical pre-drilled hole required for a countersunk screw to sit flush.

Is the “cross” drive the same as a Phillips drive?

Yes. In global manufacturing terminology, a “cross recess” drive typically refers to the standard Phillips (or occasionally Pozidriv) format. It is designed to allow the driver bit to self-center instantly.

How do I prevent stripping the polymer cross head?

While PEEK is incredibly strong, it is softer than a steel driver bit. You must use the exact size Phillips bit (typically a PH1 or PH2 for an M4 screw) and apply steady downward pressure. Most importantly, strictly adhere to thermoplastic torque limits—do not over-tighten.

Can this screw handle being repeatedly removed and reinstalled?

Yes. Unlike softer plastics like Nylon or PTFE, PEEK has excellent wear resistance and fatigue strength. Assuming proper torque is applied, the cross recess and the threads will survive hundreds of maintenance cycles without degrading.
